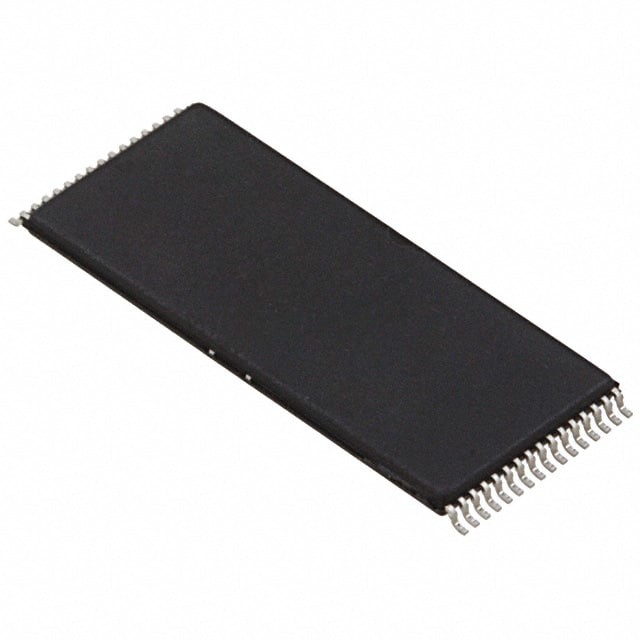

R1LP0108ESF-5SI#B0 IC SRAM 1MBIT PARALLEL 32TSOP I Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | R1LP0108ESF-5SI#B0 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | SRAM |
|---|---|---|---|
| Technology | SRAM | Memory Size | 1Mbit |
| Memory Organization | 128K X 8 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 55ns |
| Access Time | 55 Ns | Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 32-TFSOP (0.724", 18.40mm Width) | Supplier Device Package | 32-TSOP I |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| R1LV0108ESF-5SI#S1 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LP0108ESF-5SI#S1 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LV0108ESF-5SI#B1 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LP0108ESF-5SI#B1 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LP0108ESF-5SI#B0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LP0108ESF-5SI#S0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LP0108ESF-5SR#B0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LP0108ESF-5SR#S0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LP0108ESF-7SI#B0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LP0108ESF-7SI#S0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LP0108ESF-7SR#B0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LP0108ESF-7SR#S0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LV0108ESF-5SI#B0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LV0108ESF-5SI#S0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LV0108ESF-5SR#B0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LV0108ESF-5SR#S0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LV0108ESF-7SI#B0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LV0108ESF-7SI#S0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LV0108ESF-7SR#B0 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| R1LV0108ESF-7SR#S0 | IC SRAM 1MBIT PARALLEL 32TSOP I |
Product Description
Product Details
Description
The R1LV0108E Series is a family of low voltage 1-Mbit static RAMs organized as 131,072-word by 8-bit, fabricated by Renesas’s high-performance 0.15um CMOS and TFT technologies. The R1LV0108E Series has realized higher density, higher performance and low power consumption. The R1LV0108E Series is suitable for memory applications where a simple interfacing, battery operating and battery backup are the important design objectives. It has been packaged in 32-pin SOP,32-pin TSOP and 32-pin sTSOP.
Features
• Single 2.7~3.6V power supply• Small stand-by current: 1µA (3.0V, typical)
• No clocks, No refresh
• All inputs and outputs are TTL compatible.
• Easy memory expansion by CS1# and CS2
• Common Data I/O
• Three-state outputs: OR-tie Capability
• OE# prevents data contention on the I/O bus
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas Electronics America |
| Product Category | Memory ICs |
| Series | - |
| Packaging | Tray Alternate Packaging |
| Package-Case | 32-TFSOP (0.724", 18.40mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 4.5 V ~ 5.5 V |
| Supplier-Device-Package | 32-TSOP (8x20) |
| Memory Capacity | 1M (128K x 8) |
| Memory-Type | SRAM |
| Speed | 55ns |
| Format-Memory | RAM |
Descriptions
SRAM Memory IC 1Mb (128K x 8) Parallel 55ns 32-TSOP (8x20)
SRAM Chip Async Single 5V 1M-Bit 128K x 8 55ns 32-Pin TSOP-I Tray
