Surface Mount Flash Memory Chip 64Kbit , CAT28C64BG-12T Flash IC EEPROM



DESCRIPTION

The CAT28C64B is a fast, low power, 5V-only CMOS Parallel EEPROM organized as 8K x 8-bits. It requires a simple interface for in-system programming. On-chip address and data latches, self-timed write cycle with auto-clear and VCC power up/down write protection eliminate additional timing and protection hardware. DATA Polling and Toggle status bits signal the start and end of the self-timed write cycle. Additionally, the CAT28C64B features hardware and software write protection.

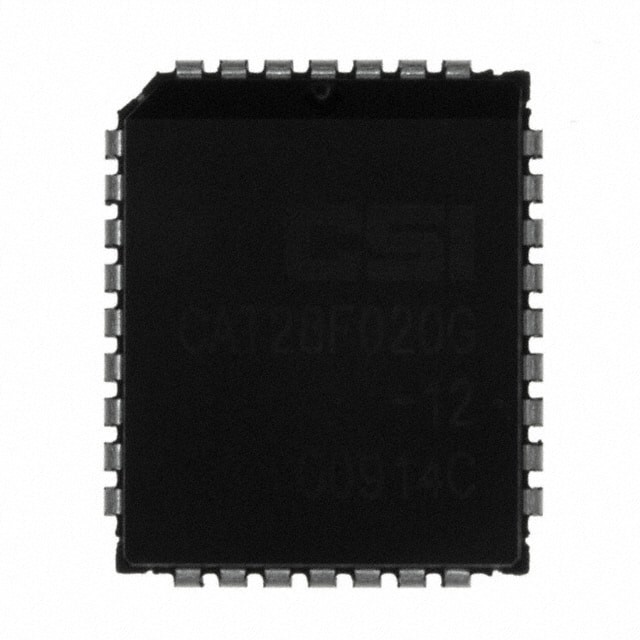

The CAT28C64B is manufactured using Catalyst’s advanced CMOS floating gate technology. It is designed to endure 100,000 program/erase cycles and has a data retention of 100 years. The device is available in JEDEC approved 28-pin DIP, TSOP, SOIC, or, 32-pin PLCC package .





FEATURES

■ Fast read access times:
– 90/120/150ns
■ Low power CMOS dissipation:
– Active: 25 mA max.
– Standby: 100 µA max.
■ Simple write operation:
– On-chip address and data latches
– Self-timed write cycle with auto-clear
■ Fast write cycle time:
– 5ms max.
■ CMOS and TTL compatible I/O
■ Hardware and software write protection
■ Commercial, industrial and automotive
temperature ranges
■ Automatic page write operation:
– 1 to 32 bytes in 5ms
– Page load timer
■ End of write detection:
– Toggle bit
– DATA polling
■ 100,000 program/erase cycles
■ 100 year data retention
