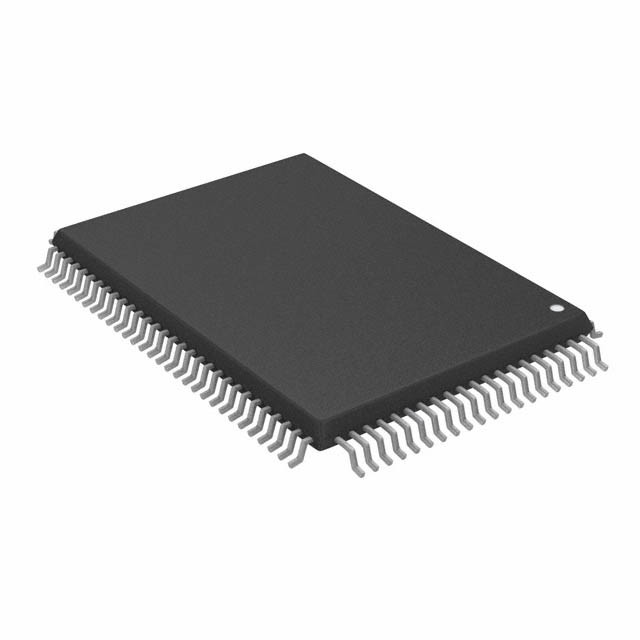

71V546S100PFG IC SRAM 4.5MBIT PAR 100TQFP Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | 71V546S100PFG |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | SRAM |
|---|---|---|---|
| Technology | SRAM - Synchronous, SDR (ZBT) | Memory Size | 4.5Mbit |
| Memory Organization | 128K X 36 | Memory Interface | Parallel |
| Clock Frequency | 100 MHz | Write Cycle Time - Word, Page | - |
| Access Time | 5 Ns | Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 100-LQFP | Supplier Device Package | 100-TQFP (14x20) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| 71V546S100PFG | IC SRAM 4.5MBIT PAR 100TQFP | |
| 71V65603S100PFG | IC SRAM 9MBIT PAR 100TQFP | |
| 71V546S100PFG8 | IC SRAM 4.5MBIT PAR 100TQFP | |
| 71V25761S183PFG | IC SRAM 4.5MBIT PAR 100TQFP | |
| 71V25761S183PFG8 | IC SRAM 4.5MBIT PAR 100TQFP | |
| 71V3579S65PFG8 | IC SRAM 4.5MBIT PAR 100TQFP | |
| 71V3579S65PFG | IC SRAM 4.5MBIT PAR 100TQFP | |
| 71V546S100PFGI8 | IC SRAM 4.5MBIT PAR 100TQFP | |
| 71V546S100PFGI | IC SRAM 4.5MBIT PAR 100TQFP | |
| 71V65603S100PFG8 | IC SRAM 9MBIT PAR 100TQFP | |
| 71T75602S166PFG8 | IC SRAM 18MBIT PARALLEL 100TQFP | |
| 71T75602S166PFG | IC SRAM 18MBIT PARALLEL 100TQFP | |
| 71V65603S100PFGI | IC SRAM 9MBIT PAR 100TQFP | |
| 71V65603S100PFGI8 | IC SRAM 9MBIT PAR 100TQFP | |
| 71T75602S166PFGI8 | IC SRAM 18MBIT PARALLEL 100TQFP | |
| 71T75602S166PFGI | IC SRAM 18MBIT PARALLEL 100TQFP | |
| 70261L20PFGI8 | IC SRAM 256KBIT PARALLEL 100TQFP | |
| 71V25761YS200PFG | IC SRAM 4.5MBIT PAR 100TQFP | |
| 71V3577YS85PFG | IC SRAM 4.5MBIT PAR 100TQFP | |
| 71V3578YS133PFG | IC SRAM 4.5MBIT PAR 100TQFP | |
| 70261S55PFG | IC SRAM 256KBIT PARALLEL 100TQFP |
Product Description
Product Details
DESCRIPTION:
The IDT71V509 is a 3.3V high-speed 1,024,576-bit synchronous SRAM organized as 128K x 8. It is designed to eliminate dead cycles when turning the bus around between reads and writes, or writes and reads. Thus, it has been given the name ZBT, or Zero Bus Turnaround™.
FEATURES:
• 128K x 8 memory configuration• High speed - 66 MHz (9 ns Clock-to-Data Access)
• Flow-Through Output
• No dead cycles between Write and Read Cycles
• Low power deselect mode
• Single 3.3V power supply (±5%)
• Packaged in 44-lead SOJ
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Integrated Circuit Systems |
| Product Category | Memory ICs |
| Series | 71V546 |
| Type | Synchronous |
| Packaging | Tray Alternate Packaging |
| Unit-Weight | 0.023175 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 100-LQFP |
| Operating-Temperature | 0°C ~ 70°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 3.135 V ~ 3.465 V |
| Supplier-Device-Package | 100-TQFP (14x20) |
| Memory Capacity | 4.5M (128K x 36) |
| Memory-Type | SRAM - Synchronous ZBT |
| Speed | 100MHz |
| Access-Time | 5 ns |
| Format-Memory | RAM |
| Maximum Operating Temperature | + 70 C |
| Operating temperature range | 0 C |
| Interface-Type | Parallel |
| Organization | 128 k x 36 |
| Supply-Current-Max | 250 mA |
| Part-#-Aliases | 71V546 IDT71V546S100PFG |
| Supply-Voltage-Max | 3.465 V |
| Supply-Voltage-Min | 3.135 V |
| Package-Case | TQFP-100 |
| Maximum-Clock-Frequency | 100 MHz |
| Manufacturer Part# | Description | Manufacturer | Compare |
| 71V2556XS100PFG8 Memory |
ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, GREEN, PLASTIC, TQFP-100 | Integrated Device Technology Inc | 71V546S100PFG vs 71V2556XS100PFG8 |
| IDT71V3556S100PFG8 Memory |
ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, 1.40 MM HEIGHT, ROHS COMPLIANT, PLASTIC, TQFP-100 | Integrated Device Technology Inc | 71V546S100PFG vs IDT71V3556S100PFG8 |
| IDT71V3556S100PFG Memory |
ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, 1.40 MM HEIGHT, PLASTIC, TQFP-100 | Integrated Device Technology Inc | 71V546S100PFG vs IDT71V3556S100PFG |
| 71V546S100PFG8 Memory |
TQFP-100, Reel | Integrated Device Technology Inc | 71V546S100PFG vs 71V546S100PFG8 |
| 71V3556S100PFG8 Memory |
TQFP-100, Reel | Integrated Device Technology Inc | 71V546S100PFG vs 71V3556S100PFG8 |
| IDT71V546S100PFG8 Memory |
ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, PLASTIC, TQFP-100 | Integrated Device Technology Inc | 71V546S100PFG vs IDT71V546S100PFG8 |
| IDT71V3556XS100PFG Memory |
ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, 1.40 MM HEIGHT, ROHS COMPLIANT, PLASTIC, MO-136DJ, TQFP-100 | Integrated Device Technology Inc | 71V546S100PFG vs IDT71V3556XS100PFG |
| 71V3556S100PFG Memory |
TQFP-100, Tray | Integrated Device Technology Inc | 71V546S100PFG vs 71V3556S100PFG |
| IDT71V546S100PFG Memory |
ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, ROHS COMPLIANT, PLASTIC, TQFP-100 | Integrated Device Technology Inc | 71V546S100PFG vs IDT71V546S100PFG |
| 71V2556XS100PFG Memory |
ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, GREEN, PLASTIC, TQFP-100 | Integrated Device Technology Inc | 71V546S100PFG vs 71V2556XS100PFG |
Descriptions
SRAM - Synchronous ZBT Memory IC 4.5Mb (128K x 36) Parallel 100MHz 5ns 100-TQFP (14x20)
SRAM 128Kx36 ZBT SYNC 3.3V PIPELINED SRAM
