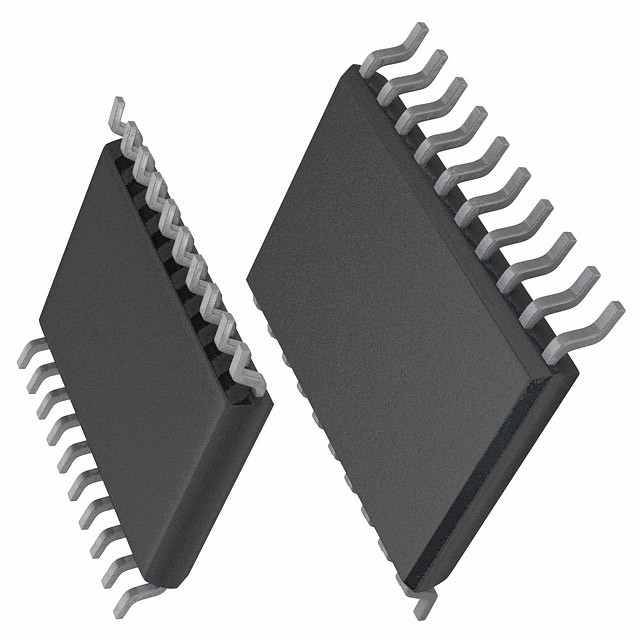

AT25128T2-10TI-1.8 IC EEPROM 128KBIT SPI 20TSSOP Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | AT25128T2-10TI-1.8 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Non-Volatile | Memory Format | EEPROM |
|---|---|---|---|
| Technology | EEPROM | Memory Size | 128Kbit |
| Memory Organization | 16K X 8 | Memory Interface | SPI |
| Clock Frequency | 2.1 MHz | Write Cycle Time - Word, Page | 10ms |
| Access Time | - | Voltage - Supply | 1.8V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | Supplier Device Package | 20-TSSOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AT25128T2-10TC | IC EEPROM 128KBIT SPI 20TSSOP | |
| AT25128T2-10TC-1.8 | IC EEPROM 128KBIT SPI 20TSSOP | |
| AT25128T2-10TC-2.7 | IC EEPROM 128KBIT SPI 20TSSOP | |
| AT25128T2-10TI | IC EEPROM 128KBIT SPI 20TSSOP | |
| AT25128T2-10TI-1.8 | IC EEPROM 128KBIT SPI 20TSSOP | |
| AT25128T2-10TI-2.7 | IC EEPROM 128KBIT SPI 20TSSOP | |
| AT25256T2-10TC | IC EEPROM 256KBIT SPI 20TSSOP | |
| AT25256T2-10TC-1.8 | IC EEPROM 256KBIT SPI 20TSSOP | |
| AT25256T2-10TC-2.7 | IC EEPROM 256KBIT SPI 20TSSOP | |
| AT25256T2-10TI | IC EEPROM 256KBIT SPI 20TSSOP | |
| AT25256T2-10TI-1.8 | IC EEPROM 256KBIT SPI 20TSSOP | |
| AT25256T2-10TI-2.7 | IC EEPROM 256KBIT SPI 20TSSOP | |
| AT25320T2-10TC | IC EEPROM 32KBIT SPI 20TSSOP | |
| AT25320T2-10TC-2.7 | IC EEPROM 32KBIT SPI 20TSSOP | |
| AT25320T2-10TI | IC EEPROM 32KBIT SPI 20TSSOP | |
| AT25320T2-10TI-2.7 | IC EEPROM 32KBIT SPI 20TSSOP | |
| AT25640T2-10TC | IC EEPROM 64KBIT SPI 20TSSOP | |
| AT25640T2-10TC-1.8 | IC EEPROM 64KBIT SPI 20TSSOP | |
| AT25640T2-10TC-2.7 | IC EEPROM 64KBIT SPI 20TSSOP | |
| AT25640T2-10TI | IC EEPROM 64KBIT SPI 20TSSOP | |
| AT25640T2-10TI-1.8 | IC EEPROM 64KBIT SPI 20TSSOP | |
| AT25640T2-10TI-2.7 | IC EEPROM 64KBIT SPI 20TSSOP |
Product Description
Product Details
Description
The AT25128 provides 131,072 bits of serial electrically erasable programmable read only memory (EEPROM) organized as 16,384 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT25128 is available in space saving 8-pin PDIP, JEDEC SOIC, and 14-pin and 20-pin TSSOP packages.
Features
• Serial Peripheral Interface (SPI) Compatible• Supports SPI Modes 0 (0,0) and 3 (1,1)
• Low Voltage and Standard Voltage Operation
5.0 (VCC = 4.5V to 5.5V)
2.7 (VCC = 2.7V to 5.5V)
1.8 (VCC = 1.8V to 3.6V)
• 2.1 MHz Clock Rate
• 32-Byte Page Mode
• Block Write Protection
Protect 1/4, 1/2, or Entire Array
• Write Protect (WP) Pin and Write Disable Instructions for
Both Hardware and Software Data Protection
• Self-Timed Write Cycle (5 ms Typical)
• High Reliability
Endurance: 100,000 Cycles
Data Retention: 100 Years
• Automotive Grade and Extended Temperature Devices Available
• 8-Pin PDIP, 14-pin, 16-pin JEDEC SOIC, and 20-Pin TSSOP Packages
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Intel / Altera |
| Product Category | Memory ICs |
| Series | - |
| Packaging | Tube |
| Package-Case | 20-TSSOP (0.173", 4.40mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | SPI Serial |
| Voltage-Supply | 1.8 V ~ 3.6 V |
| Supplier-Device-Package | 20-TSSOP |
| Memory Capacity | 128K (16K x 8) |
| Memory-Type | EEPROM |
| Speed | 500kHz, 2.1MHz |
| Format-Memory | EEPROMs - Serial |
Descriptions
EEPROM Memory IC 128Kb (16K x 8) SPI 2.1MHz 20-TSSOP
