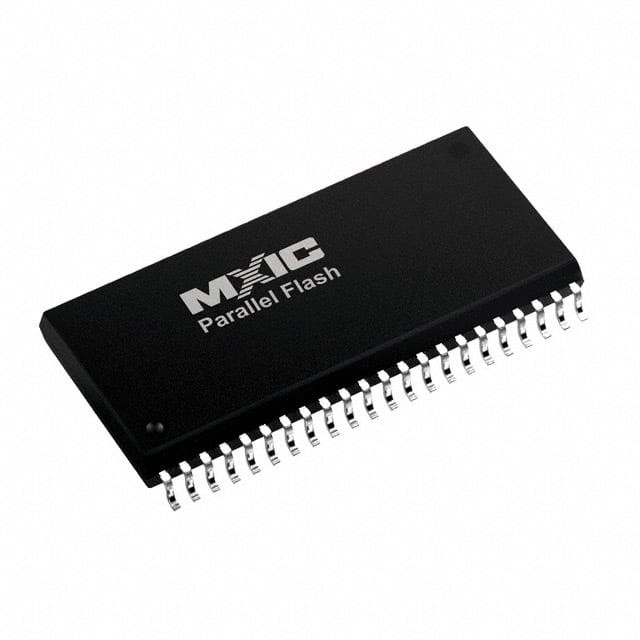

MX29F400CTMI-90G IC FLASH 4MBIT PARALLEL 44SOP Macronix
| Brand Name | Macronix |
|---|---|
| Model Number | MX29F400CTMI-90G |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Non-Volatile | Memory Format | FLASH |
|---|---|---|---|
| Technology | FLASH - NOR | Memory Size | 4Mbit |
| Memory Organization | 512K X 8 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 90ns |
| Access Time | 90 Ns | Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 44-SOIC (0.496", 12.60mm Width) | Supplier Device Package | 44-SOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MX29F400CTMI-90G | IC FLASH 4MBIT PARALLEL 44SOP | |
| MX29F200CTMI-70G | IC FLASH 2MBIT PARALLEL 44SOP | |
| MX29F200CBMI-70G | IC FLASH 2MBIT PARALLEL 44SOP | |
| MX29F400CTMI-70G | IC FLASH 4MBIT PARALLEL 44SOP | |
| MX29F400CBMI-70G | IC FLASH 4MBIT PARALLEL 44SOP | |
| MX29F800CTMI-70G | IC FLASH 8MBIT PARALLEL 44SOP | |
| MX29F800CBMI-70G | IC FLASH 8MBIT PARALLEL 44SOP | |
| MX29LV400CTMI-70G | IC FLASH 4MBIT PARALLEL 44SOP | |
| MX29LV400CBMI-70G | IC FLASH 4MBIT PARALLEL 44SOP | |
| MX29LV400CBMC-70G | IC FLASH 4MBIT PARALLEL 44SOP | |
| MX29LV400CBMI-90G | IC FLASH 4MBIT PARALLEL 44SOP | |
| MX29LV400CBMC-90G | IC FLASH 4MBIT PARALLEL 44SOP | |
| MX29LV400CBMC-55Q | IC FLASH 4MBIT PARALLEL 44SOP | |
| MX29LV800CTMC-70G | IC FLASH 8MBIT PARALLEL 44SOP | |
| MX29LV400CTMC-70G | IC FLASH 4MBIT PARALLEL 44SOP | |
| MX29LV400CTMI-90G | IC FLASH 4MBIT PARALLEL 44SOP | |
| MX29LV800CBMI-70G | IC FLASH 8MBIT PARALLEL 44SOP | |
| MX29LV800CBMC-70G | IC FLASH 8MBIT PARALLEL 44SOP | |
| MX29LV800CBMC-90G | IC FLASH 8MBIT PARALLEL 44SOP | |
| MX29LV800CTMI-70G | IC FLASH 8MBIT PARALLEL 44SOP | |
| MX29LV800CTMC-90G | IC FLASH 8MBIT PARALLEL 44SOP | |
| MX29F400CBMI-90G | IC FLASH 4MBIT PARALLEL 44SOP | |
| MX29F400CBMC-90G | IC FLASH 4MBIT PARALLEL 44SOP | |
| MX29LV800CTMI-55Q | IC FLASH 8MBIT PARALLEL 44SOP |
Product Description
Product Details
GENERAL DESCRIPTION
The MX29F400C T/B is a 4-mega bit Flash memory or ganized as 512K bytes of 8 bits or 256K words of 16 bits. MXIC's Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory.The MX29F400C T/B is packaged in 44-pin SOP, 48-pin TSOP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers.
The standard MX29F400C T/B offers access time as fast as 55ns, allowing operation of high-speed microprocessors without wait states. To eliminate bus conten tion, the MX29F400C T/B has separate chip enable (CE#) and output enable (OE#) controls.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Macronix |
| Product Category | Memory ICs |
| Series | MX29F |
| Packaging | Tube |
| Package-Case | 44-SOIC (0.496", 12.60mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 4.5 V ~ 5.5 V |
| Supplier-Device-Package | 44-SOP |
| Memory Capacity | 4M (512K x 8) |
| Memory-Type | FLASH - NOR |
| Speed | 90ns |
| Format-Memory | FLASH |
Descriptions
FLASH - NOR Memory IC 4Mb (512K x 8) Parallel 90ns 44-SOP
NOR Flash Parallel 5V 4M-bit 512K x 8/256K x 16 90ns 44-Pin SOP
