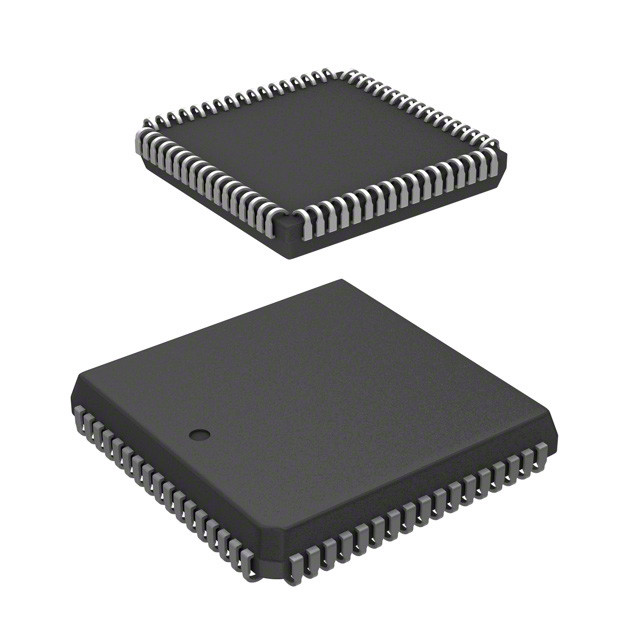

7005L20JGI IC SRAM 64KBIT PARALLEL 68PLCC Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | 7005L20JGI |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | SRAM |
|---|---|---|---|
| Technology | SRAM - Dual Port, Asynchronous | Memory Size | 64Kbit |
| Memory Organization | 8K X 8 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 20ns |
| Access Time | 20 Ns | Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 68-LCC (J-Lead) | Supplier Device Package | 68-PLCC (24.21x24.21) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| 7005L20JGI | IC SRAM 64KBIT PARALLEL 68PLCC | |
| 7133LA25JGI8 | IC SRAM 32KBIT PARALLEL 68PLCC | |
| 7133LA20JG8 | IC SRAM 32KBIT PARALLEL 68PLCC | |
| 7143LA20JG8 | IC SRAM 32KBIT PARALLEL 68PLCC | |
| 7133LA20JG | IC SRAM 32KBIT PARALLEL 68PLCC | |
| 7133LA25JGI | IC SRAM 32KBIT PARALLEL 68PLCC | |
| 7005L15JG | IC SRAM 64KBIT PARALLEL 68PLCC | |
| 70V05L15JG | IC SRAM 64KBIT PARALLEL 68PLCC | |
| 7005L15JG8 | IC SRAM 64KBIT PARALLEL 68PLCC | |
| 70V05L15JG8 | IC SRAM 64KBIT PARALLEL 68PLCC | |
| 7005L20JGI8 | IC SRAM 64KBIT PARALLEL 68PLCC | |
| 7006L20JGI | IC SRAM 128KBIT PARALLEL 68PLCC | |
| 7006L20JGI8 | IC SRAM 128KBIT PARALLEL 68PLCC | |
| 7007L15JG | IC SRAM 256KBIT PARALLEL 68PLCC | |
| 7007L20JGI | IC SRAM 256KBIT PARALLEL 68PLCC | |
| 7007L15JG8 | IC SRAM 256KBIT PARALLEL 68PLCC | |
| 7007L20JGI8 | IC SRAM 256KBIT PARALLEL 68PLCC | |
| 7016L12JG | IC SRAM 144KBIT PARALLEL 68PLCC | |
| 7016L12JG8 | IC SRAM 144KBIT PARALLEL 68PLCC | |
| 7015L12JG | IC SRAM 72KBIT PARALLEL 68PLCC | |
| 70V06L15JG | IC SRAM 128KBIT PARALLEL 68PLCC | |
| 7015L12JG8 | IC SRAM 72KBIT PARALLEL 68PLCC | |
| 70V06L15JG8 | IC SRAM 128KBIT PARALLEL 68PLCC | |
| 70V06L20JGI | IC SRAM 128KBIT PARALLEL 68PLCC | |
| 70V06L20JGI8 | IC SRAM 128KBIT PARALLEL 68PLCC |
Product Description
Product Details
Description
The IDT7005 is a high-speed 8K x 8 Dual-Port Static RAM. The IDT7005 is designed to be used as a stand-alone 64K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 16-bit-or-more word systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 16-bit or wider memory system applications results in full speed, error-free operation without the need for additional discrete logic.
Features
◆ True Dual-Ported memory cells which allow simultaneous reads of the same memory location◆ High-speed access
– Military: 20/25/35/55/70ns (max.)
– Industrial: 20/35/55ns (max.)
– Commercial:15/17/20/25/35/55ns (max.)
◆ Low-power operation
– IDT7005S
Active: 750mW (typ.)
Standby: 5mW (typ.)
– IDT7005L
Active: 700mW (typ.)
Standby: 1mW (typ.)
◆ IDT7005 easily expands data bus width to 16 bits or more using the Master/Slave select when cascading more than one device
◆ M/S = H for BUSY output flag on Master, M/S = L for BUSY input on Slave
◆ Interrupt Flag
◆ On-chip port arbitration logic
◆ Full on-chip hardware support of semaphore signaling between ports
◆ Fully asynchronous operation from either port
◆ Devices are capable of withstanding greater than 2001V electrostatic discharge
◆ Battery backup operation—2V data retention
◆ TTL-compatible, single 5V (±10%) power supply
◆ Available in 68-pin PGA, PLCC and a 64-pin thin quad flatpack
◆ Industrial temperature range (-40°C to +85°C) is available for selected speeds
◆ Green parts available, see ordering information
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | IDT |
| Product Category | Memory ICs |
| Series | 7005L20 |
| Type | Asynchronous |
| Packaging | * Alternate Packaging |
| Unit-Weight | 0.171777 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 68-LCC (J-Lead) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 4.5 V ~ 5.5 V |
| Supplier-Device-Package | 68-PLCC (24x24) |
| Memory Capacity | 64K (8K x 8) |
| Memory-Type | SRAM - Dual Port, Asynchronous |
| Speed | 20ns |
| Access-Time | 20 ns |
| Format-Memory | RAM |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Interface-Type | Parallel |
| Organization | 8 k x 8 |
| Supply-Current-Max | 320 mA |
| Part-#-Aliases | 7005 IDT7005L20JGI |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 4.5 V |
| Package-Case | PLCC-68 |
| Manufacturer Part# | Description | Manufacturer | Compare |
| IDT70V05S20JG Memory |
Dual-Port SRAM, 8KX8, 20ns, CMOS, PQCC68, 0.950 X 0.950 INCH, 0.170 INCH HEIGHT, GREEN, PLASTIC, LCC-68 | Integrated Device Technology Inc | 7005L20JGI vs IDT70V05S20JG |
| IDT7005L20JG Memory |
Dual-Port SRAM, 8KX8, 20ns, CMOS, PQCC68, 0.950 X 0.950 INCH, 0.120 INCH HEIGHT, GREEN, PLASTIC, LCC-68 | Integrated Device Technology Inc | 7005L20JGI vs IDT7005L20JG |
| 7005L20JG Memory |
Dual-Port SRAM, 8KX8, 20ns, CMOS, PQCC68, 0.950 X 0.950 INCH, 0.120 INCH HEIGHT, GREEN, PLASTIC, LCC-68 | Integrated Device Technology Inc | 7005L20JGI vs 7005L20JG |
| 7005L20JGI8 Memory |
PLCC-68, Reel | Integrated Device Technology Inc | 7005L20JGI vs 7005L20JGI8 |
| IDT7005L20JGB Memory |
Dual-Port SRAM, 8KX8, 20ns, CMOS, PQCC68, 0.950 X 0.950 INCH, 0.120 INCH HEIGHT, GREEN, PLASTIC, LCC-68 | Integrated Device Technology Inc | 7005L20JGI vs IDT7005L20JGB |
| IDT70V05S20GGI Memory |
Dual-Port SRAM, 8KX8, 20ns, CMOS, CPGA68, 1.180 X 1.180 INCH, 0.160 INCH HEIGHT, GREEN, CERAMIC, PGA-68 | Integrated Device Technology Inc | 7005L20JGI vs IDT70V05S20GGI |
| 70V05S20GG Memory |
Dual-Port SRAM, 8KX8, 20ns, CMOS, CPGA68, 1.180 X 1.180 INCH, 0.160 INCH HEIGHT, GREEN, CERAMIC, PGA-68 | Integrated Device Technology Inc | 7005L20JGI vs 70V05S20GG |
| 70V05S20GGI Memory |
Dual-Port SRAM, 8KX8, 20ns, CMOS, CPGA68, 1.180 X 1.180 INCH, 0.160 INCH HEIGHT, GREEN, CERAMIC, PGA-68 | Integrated Device Technology Inc | 7005L20JGI vs 70V05S20GGI |
| IDT7005L20FG Memory |
Dual-Port SRAM, 8KX8, 20ns, CMOS, PQFP68, 0.970 X 0.970 INCH, 0.080 INCH HEIGHT, GREEN, QFP-68 | Integrated Device Technology Inc | 7005L20JGI vs IDT7005L20FG |
| IDT7005L20FGB Memory |
Dual-Port SRAM, 8KX8, 20ns, CMOS, PQFP68, 0.970 X 0.970 INCH, 0.080 INCH HEIGHT, GREEN, QFP-68 | Integrated Device Technology Inc | 7005L20JGI vs IDT7005L20FGB |
Descriptions
SRAM - Dual Port, Asynchronous Memory IC 64Kb (8K x 8) Parallel 20ns 68-PLCC (24.21x24.21)
SRAM 8K x 8 Dual-Port RAM
