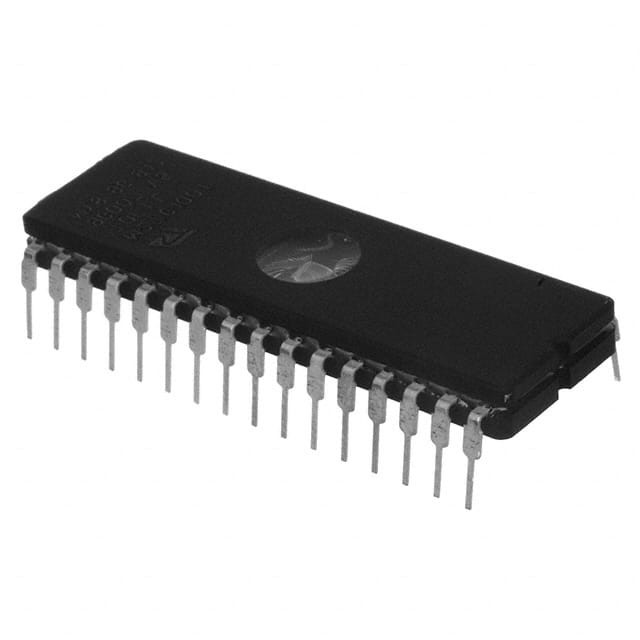

M27C2001-15F1 IC EPROM 2MBIT PARALLEL 32CDIP STMicroelectronics
| Brand Name | STMicroelectronics |
|---|---|
| Model Number | M27C2001-15F1 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Non-Volatile | Memory Format | EPROM |
|---|---|---|---|
| Technology | EPROM - UV | Memory Size | 2Mbit |
| Memory Organization | 256K X 8 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | - |
| Access Time | 150 Ns | Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) | Mounting Type | Through Hole |
| Package / Case | 32-CDIP (0.600", 15.24mm) Window | Supplier Device Package | 32-CDIP Frit Seal With Window |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| M27C2001-15F1 | IC EPROM 2MBIT PARALLEL 32CDIP | |
| M27C1001-10F1 | IC EPROM 1MBIT PARALLEL 32CDIP | |
| M27C1001-12F1 | IC EPROM 1MBIT PARALLEL 32CDIP | |
| M27C1001-12F6 | IC EPROM 1MBIT PARALLEL 32CDIP | |
| M27C1001-15F1 | IC EPROM 1MBIT PARALLEL 32CDIP | |
| M27C1001-70F1 | IC EPROM 1MBIT PARALLEL 32CDIP | |
| M27C2001-10F1 | IC EPROM 2MBIT PARALLEL 32CDIP | |
| M27C4001-10F1 | IC EPROM 4MBIT PARALLEL 32CDIP | |
| M27C4001-12F1 | IC EPROM 4MBIT PARALLEL 32CDIP | |
| M27C4001-15F1 | IC EPROM 4MBIT PARALLEL 32CDIP | |
| M27C4001-80XF1 | IC EPROM 4MBIT PARALLEL 32CDIP | |
| M27C801-100F1 | IC EPROM 8MBIT PARALLEL 32CDIP | |
| M27C1001-45XF1 | IC EPROM 1MBIT PARALLEL 32CDIP | |
| M27C2001-10F6 | IC EPROM 2MBIT PARALLEL 32CDIP | |
| M27C2001-55XF1 | IC EPROM 2MBIT PARALLEL 32CDIP | |
| M27C2001-70XF1 | IC EPROM 2MBIT PARALLEL 32CDIP | |
| M27C4001-35XF1 | IC EPROM 4MBIT PARALLEL 32CDIP | |
| M27C801-100F6 | IC EPROM 8MBIT PARALLEL 32CDIP | |
| M27C801-120F1 | IC EPROM 8MBIT PARALLEL 32CDIP | |
| M27C801-80F1 | IC EPROM 8MBIT PARALLEL 32CDIP | |
| M27C801-90F1 | IC EPROM 8MBIT PARALLEL 32CDIP | |
| M27W201-80F6 | IC EPROM 2MBIT PARALLEL 32CDIP | |
| M27W401-80F6 | IC EPROM 4MBIT PARALLEL 32CDIP | |
| M27C4001-12F6 | IC EPROM 4MBIT PARALLEL 32CDIP | |
| M27C4001-45XF1 | IC EPROM 4MBIT PARALLEL 32CDIP | |
| M27C2001-12F6 | IC EPROM 2MBIT PARALLEL 32CDIP | |
| M27C2001-12F1 | IC EPROM 2MBIT PARALLEL 32CDIP |
Product Description
Product Details
DESCRIPTION
The M27C2001 is a high speed 2 Megabit UV erasable and programmable memory (EPROM) ideally suited for microprocessor systems requiring largeprograms.It isorganised as262,144by 8bits.
■ VERY FAST ACCESS TIME: 70ns
■ COMPATIBLE with HIGH SPEED MICROPROCESSORS, ZERO WAIT STATE■ LOW POWER ”CMOS” CONSUMPTION:
– Active Current 30mA
– Standby Current 100µA
■ PROGRAMMING VOLTAGE: 12.75V
■ ELECTRONIC SIGNATURE for AUTOMATED PROGRAMMING
■ PROGRAMMING TIMES of AROUND 24sec. (PRESTO II ALGORITHM)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Memory ICs |
| Series | - |
| Packaging | Tube |
| Package-Case | 32-CDIP (0.600", 15.24mm) Window |
| Operating-Temperature | 0°C ~ 70°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 4.5 V ~ 5.5 V |
| Supplier-Device-Package | 32-CDIP Frit Seal with Window |
| Memory Capacity | 2M (256K x 8) |
| Memory-Type | EPROM UV |
| Speed | 150ns |
| Format-Memory | EPROMs |
Descriptions
EPROM - UV Memory IC 2Mb (256K x 8) Parallel 150ns 32-CDIP Frit Seal with Window
EPROM UV 2M-Bit 256K x 8 150ns 32-Pin CFDIPW Tube
