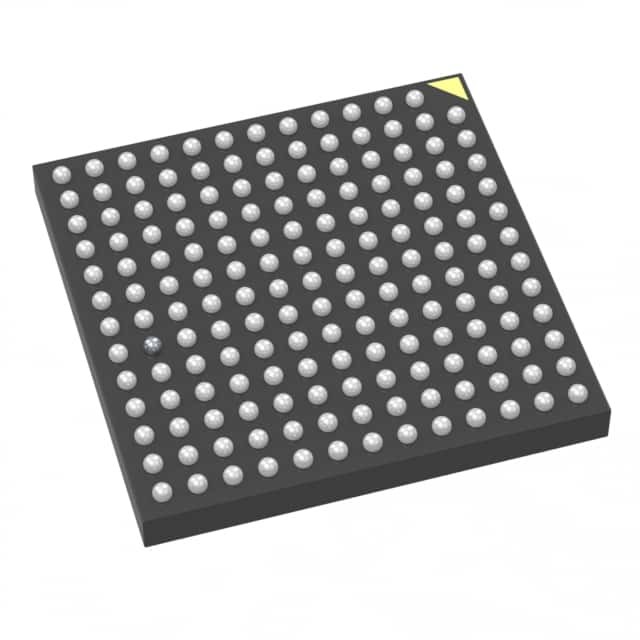

IS49RL18320-093BL IC DRAM 576MBIT PAR 168FBGA ISSI, Integrated Silicon Solution Inc
| Brand Name | ISSI, Integrated Silicon Solution Inc |
|---|---|
| Model Number | IS49RL18320-093BL |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | DRAM |
|---|---|---|---|
| Technology | DRAM | Memory Size | 576Mbit |
| Memory Organization | 32M X 18 | Memory Interface | Parallel |
| Clock Frequency | 1.066 GHz | Write Cycle Time - Word, Page | - |
| Access Time | 10 Ns | Voltage - Supply | 1.28V ~ 1.42V |
| Operating Temperature | 0°C ~ 70°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 168-LBGA | Supplier Device Package | 168-FBGA (13.5x13.5) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| IS49RL36160A-107EBL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160A-093EBL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160A-093FBL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160A-093EBLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160A-093FBLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160A-107EBLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL18320A-107EBL | IC DRAM 576MBIT PAR 168FCBGA | |
| IS49RL18320A-093EBL | IC DRAM 576MBIT PAR 168FCBGA | |
| IS49RL18320A-107EBLI | IC DRAM 576MBIT PAR 168FCBGA | |
| IS49RL18320A-093EBLI | IC DRAM 576MBIT PAR 168FCBGA | |
| IS49RL18320-093BL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL18320-093BLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL18320-093EBL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL18320-093EBLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL18320-107BL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL18320-107BLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL18320-107EBL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL18320-107EBLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL18320-125BL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL18320-125BLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL18320-125EBL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL18320-125EBLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160-093BL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160-093BLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160-093EBL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160-093EBLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160-107BL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160-107BLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160-107EBL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160-107EBLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160-125BL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160-125BLI | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160-125EBL | IC DRAM 576MBIT PAR 168FBGA | |
| IS49RL36160-125EBLI | IC DRAM 576MBIT PAR 168FBGA |
Product Description
Product Details
■ Features
1. Built-in schmidt trigger circuit2. High sensitivity(E V : MAX. 35rx at Ta= 25˚C)
3. A wide range of operating supply voltage
(VCC: 4.5 to 17V)
4. LSTTL and TTL compatible output
5. Low level output under incident light (IS485)
High level output under incident light (IS486)
6. Compact package
■ Applications
1. Floppy disk drive units2. Copiers, printers, facsimiles
3. VCRs, cassette decks
4. Automatic vending machines
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ISSI |
| Product Category | Memory ICs |
| Series | - |
| Packaging | Tray |
| Package-Case | 168-LBGA |
| Operating-Temperature | 0°C ~ 70°C (TA) |
| Interface | Common I/O |
| Voltage-Supply | 1.28 V ~ 1.42 V |
| Supplier-Device-Package | 168-FC(LF)BGA (13.5x13.5) |
| Memory Capacity | 576M (32M x 18) |
| Memory-Type | RLDRAM 3 |
| Speed | 0.93ns |
| Format-Memory | RAM |
| Manufacturer Part# | Description | Manufacturer | Compare |
| IS49RL18320-125EBL Memory |
DDR DRAM, 32MX18, 10ns, CMOS, PBGA168, LEAD FREE, FBGA-168 | Integrated Silicon Solution Inc | IS49RL18320-093BL vs IS49RL18320-125EBL |
| IS49RL18320-093EBL Memory |
DDR DRAM, 32MX18, 8ns, CMOS, PBGA168, LEAD FREE, FBGA-168 | Integrated Silicon Solution Inc | IS49RL18320-093BL vs IS49RL18320-093EBL |
| IS49RL18320-125BL Memory |
DDR DRAM, 32MX18, 12ns, CMOS, PBGA168, LEAD FREE, FBGA-168 | Integrated Silicon Solution Inc | IS49RL18320-093BL vs IS49RL18320-125BL |
| IS49RL18320-107EBL Memory |
DDR DRAM, 32MX18, 8ns, CMOS, PBGA168, LEAD FREE, FBGA-168 | Integrated Silicon Solution Inc | IS49RL18320-093BL vs IS49RL18320-107EBL |
| IS49RL18320-107BLI Memory |
DDR DRAM, 32MX18, 10ns, CMOS, PBGA168, LEAD FREE, FBGA-168 | Integrated Silicon Solution Inc | IS49RL18320-093BL vs IS49RL18320-107BLI |
| IS49RL18320-093EBLI Memory |
DDR DRAM, 32MX18, 8ns, CMOS, PBGA168, LEAD FREE, FBGA-168 | Integrated Silicon Solution Inc | IS49RL18320-093BL vs IS49RL18320-093EBLI |
| IS49RL18320-107BL Memory |
DDR DRAM, 32MX18, 10ns, CMOS, PBGA168, LEAD FREE, FBGA-168 | Integrated Silicon Solution Inc | IS49RL18320-093BL vs IS49RL18320-107BL |
| IS49RL18320-125EBLI Memory |
DDR DRAM, 32MX18, 10ns, CMOS, PBGA168, LEAD FREE, FBGA-168 | Integrated Silicon Solution Inc | IS49RL18320-093BL vs IS49RL18320-125EBLI |
| IS49RL18320-107EBLI Memory |
DDR DRAM, 32MX18, 8ns, CMOS, PBGA168, LEAD FREE, FBGA-168 | Integrated Silicon Solution Inc | IS49RL18320-093BL vs IS49RL18320-107EBLI |
| IS49RL18320-093BLI Memory |
DDR DRAM, 32MX18, 10ns, CMOS, PBGA168, LEAD FREE, FBGA-168 | Integrated Silicon Solution Inc | IS49RL18320-093BL vs IS49RL18320-093BLI |
Descriptions
DRAM Memory IC 576Mb (32M x 18) Parallel 1.066GHz 10ns 168-FC(LF)BGA (13.5x13.5)
DRAM Chip RLDRAM3 576Mbit 32Mx18 1.35V 168-Pin FBGA
DRAM RLDRAM3 Memory, 576M Common I/O, 1066Mhz
