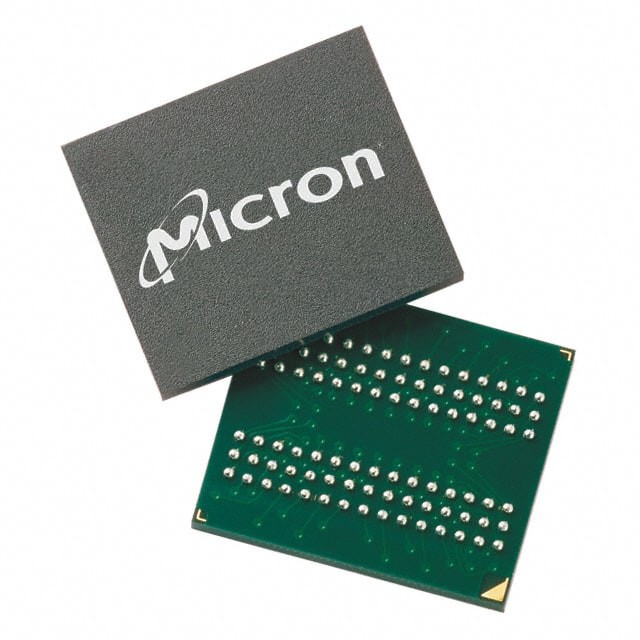

MT46H16M32LFCM-6 TR IC DRAM 512MBIT PAR 90VFBGA Micron Technology Inc.
| Brand Name | Micron Technology Inc. |
|---|---|
| Model Number | MT46H16M32LFCM-6 TR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | DRAM |
|---|---|---|---|
| Technology | SDRAM - Mobile LPDDR | Memory Size | 512Mbit |
| Memory Organization | 16M X 32 | Memory Interface | Parallel |
| Clock Frequency | 166 MHz | Write Cycle Time - Word, Page | 15ns |
| Access Time | 5 Ns | Voltage - Supply | 1.7V ~ 1.95V |
| Operating Temperature | 0°C ~ 70°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 90-VFBGA | Supplier Device Package | 90-VFBGA (10x13) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MT46H16M32LFCM-6 TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCM-6 IT TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT48H16M32LFCM-75 IT:A TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT48H16M32LFCM-75:A TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H32M32LFCM-6 IT:A TR | IC DRAM 1GBIT PARALLEL 90VFBGA | |
| MT46H32M32LFCM-6:A TR | IC DRAM 1GBIT PARALLEL 90VFBGA | |
| MT46H16M32LFCM-5:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCM-6 IT:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCM-6:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H32M32LFCM-5:A TR | IC DRAM 1GBIT PARALLEL 90VFBGA | |
| MT48H16M32LFCM-75 IT:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT48H16M32LFCM-75:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT48H16M32LFCM-6:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCM-75 IT | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCM-5 IT:B | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCM-5 IT:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCM-6 L IT:B | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCM-6 L IT:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCX-5 IT:B | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCX-5 IT:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCX-5:B | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCX-5:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCX-6 IT:B | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCX-6 IT:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCX-6:B | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H16M32LFCX-6:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H32M32LFCM-5 IT:A | IC DRAM 1GBIT PARALLEL 90VFBGA | |
| MT46H32M32LFCM-5 IT:A TR | IC DRAM 1GBIT PARALLEL 90VFBGA | |
| MT46H32M32LFCM-6 L IT:A | IC DRAM 1GBIT PARALLEL 90VFBGA | |
| MT46H32M32LFCM-6 L IT:A TR | IC DRAM 1GBIT PARALLEL 90VFBGA | |
| MT48H16M32LFCM-6 IT:B | IC DRAM 512MBIT PAR 90VFBGA | |
| MT48H16M32LFCM-6 IT:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT48H16M32LFCM-6 L IT:B | IC DRAM 512MBIT PAR 90VFBGA | |
| MT48H16M32LFCM-6 L IT:B TR | IC DRAM 512MBIT PAR 90VFBGA | |
| MT46H64M32LFCM-5 IT:A | IC DRAM 2GBIT PARALLEL 90VFBGA | |
| MT46H64M32LFCM-6 IT:A | IC DRAM 2GBIT PARALLEL 90VFBGA |
Product Description
Product Details
Mobile Low-Power DDR SDRAM
Features
• VDD/VDDQ = 1.70–1.95V• Bidirectional data strobe per byte of data (DQS)
• Internal, pipelined double data rate (DDR) architecture; two data accesses per clock cycle
• Differential clock inputs (CK and CK#)
• Commands entered on each positive CK edge
• DQS edge-aligned with data for READs; center aligned with data for WRITEs
• 4 internal banks for concurrent operation
• Data masks (DM) for masking write data; one mask per byte
• Programmable burst lengths (BL): 2, 4, 8, or 16
• Concurrent auto precharge option is supported
• Auto refresh and self refresh modes
• 1.8V LVCMOS-compatible inputs
• Temperature-compensated self refresh (TCSR)
• Partial-array self refresh (PASR)
• Deep power-down (DPD)
• Status read register (SRR)
• Selectable output drive strength (DS)
• Clock stop capability
• 64ms refresh, 32ms for automotive temperature
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Micron Technology Inc. |
| Product Category | Memory ICs |
| Series | - |
| Packaging | |
| Package-Case | 90-VFBGA |
| Operating-Temperature | 0°C ~ 70°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 1.7 V ~ 1.95 V |
| Supplier-Device-Package | 90-VFBGA (10x13) |
| Memory Capacity | 512M (16M x 32) |
| Memory-Type | Mobile LPDDR SDRAM |
| Speed | 166MHz |
| Format-Memory | RAM |
Descriptions
SDRAM - Mobile LPDDR Memory IC 512Mb (16M x 32) Parallel 166MHz 5.0ns 90-VFBGA (10x13)
