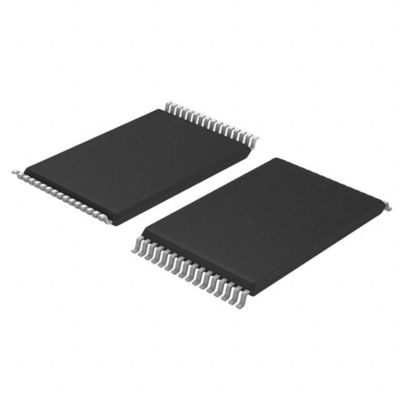

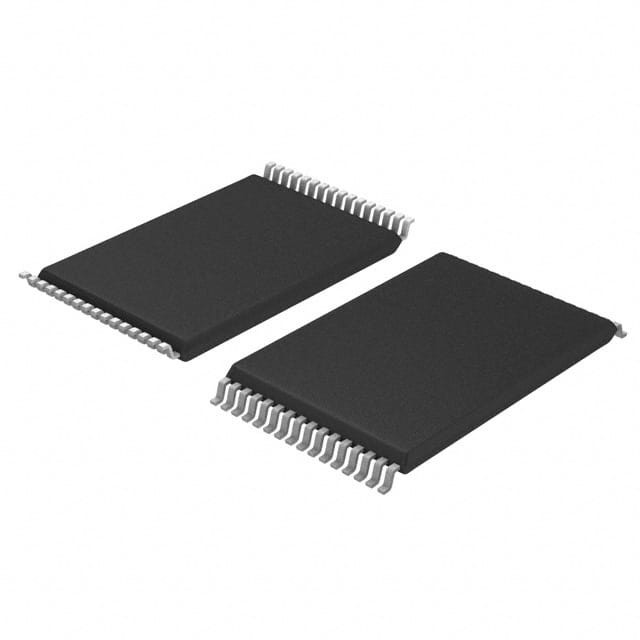

IS62WV5128BLL-55HLI IC SRAM 4MBIT PARALLEL 32STSOP I ISSI, Integrated Silicon Solution Inc

  • IS62WV5128BLL-55HLI IC SRAM 4MBIT PARALLEL 32STSOP I ISSI, Integrated Silicon Solution Inc
Brand Name ISSI, Integrated Silicon Solution Inc
Model Number IS62WV5128BLL-55HLI
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Memory Type Volatile Memory Format SRAM
Technology SRAM - Asynchronous Memory Size 4Mbit
Memory Organization 512K X 8 Memory Interface Parallel
Clock Frequency - Write Cycle Time - Word, Page 55ns
Access Time 55 Ns Voltage - Supply 2.5V ~ 3.6V
Operating Temperature -40°C ~ 85°C (TA) Mounting Type Surface Mount
Package / Case 32-TFSOP (0.465", 11.80mm Width) Supplier Device Package 32-sTSOP I
You can tick the products you need and communicate with us in the message board.
Part Number Description
IS62WV5128BLL-55HLI IC SRAM 4MBIT PARALLEL 32STSOP I
IS62WV2568BLL-55HLI IC SRAM 2MBIT PARALLEL 32STSOP I
IS62WV1288BLL-55HLI IC SRAM 1MBIT PARALLEL 32STSOP I
IS61WV1288EEBLL-10HLI IC SRAM 1MBIT PARALLEL 32STSOP I
IS62WV1288BLL-55HLI-TR IC SRAM 1MBIT PARALLEL 32STSOP I
IS61WV1288EEBLL-10HLI-TR IC SRAM 1MBIT PARALLEL 32STSOP I
IS62WV1288FBLL-45HLI-TR IC SRAM 1MBIT PARALLEL 32STSOP I
IS63WV1288DBLL-10HLI-TR IC SRAM 1MBIT PARALLEL 32TSOP I
IS63WV1024BLL-12HLI-TR IC SRAM 1MBIT PARALLEL 32STSOP I
IS62WV1288FBLL-45HLI IC SRAM 1MBIT PARALLEL 32STSOP I
IS63WV1288DBLL-10HLI IC SRAM 1MBIT PARALLEL 32TSOP I
IS61C1024AL-12HLI-TR IC SRAM 1MBIT PARALLEL 32STSOP I
IS62WV2568BLL-55HLI-TR IC SRAM 2MBIT PARALLEL 32STSOP I
IS63WV1024BLL-12HLI IC SRAM 1MBIT PARALLEL 32STSOP I
IS61C1024AL-12HLI IC SRAM 1MBIT PARALLEL 32STSOP I
IS65WV1288BLL-55HLA1-TR IC SRAM 1MBIT PARALLEL 32STSOP I
IS62WV5128BLL-55HLI-TR IC SRAM 4MBIT PARALLEL 32STSOP I
IS61C5128AS-25HLI-TR IC SRAM 4MBIT PARALLEL 32STSOP I
IS65WV1288BLL-55HLA1 IC SRAM 1MBIT PARALLEL 32STSOP I
IS61C5128AS-25HLI IC SRAM 4MBIT PARALLEL 32STSOP I
IS62WV1288BLL-55HI IC SRAM 1MBIT PARALLEL 32STSOP I
IS62WV1288BLL-55HI-TR IC SRAM 1MBIT PARALLEL 32STSOP I
IS62WV2568BLL-70HI IC SRAM 2MBIT PARALLEL 32STSOP I
IS62WV2568BLL-70HI-TR IC SRAM 2MBIT PARALLEL 32STSOP I
IS62WV5128BLL-55HI IC SRAM 4MBIT PARALLEL 32STSOP I
IS62WV5128BLL-55HI-TR IC SRAM 4MBIT PARALLEL 32STSOP I
IS63LV1024L-10HL IC SRAM 1MBIT PARALLEL 32STSOP I
IS63LV1024L-10HL-TR IC SRAM 1MBIT PARALLEL 32STSOP I
IS63LV1024L-12H IC SRAM 1MBIT PARALLEL 32STSOP I
IS63LV1024L-12H-TR IC SRAM 1MBIT PARALLEL 32STSOP I
N01L83W2AN25IT IC SRAM 1MBIT PARALLEL 32STSOP I
N02L83W2AN25I IC SRAM 2MBIT PARALLEL 32STSOP I
N02L83W2AN25IT IC SRAM 2MBIT PARALLEL 32STSOP I
N01L83W2AN25I IC SRAM 1MBIT PARALLEL 32STSOP I
N01L83W2AN5I IC SRAM 1MBIT PARALLEL 32STSOP I
IS62WV1288DBLL-45HLI IC SRAM 1MBIT PARALLEL 32STSOP I
IS62WV5128DBLL-45HLI IC SRAM 4MBIT PARALLEL 32STSOP I
IS62WV1288DBLL-45HLI-TR IC SRAM 1MBIT PARALLEL 32STSOP I
IS62WV2568DBLL-45HLI IC SRAM 2MBIT PARALLEL 32STSOP I
IS62WV2568DBLL-45HLI-TR IC SRAM 2MBIT PARALLEL 32STSOP I
IS62WV5128DBLL-45HLI-TR IC SRAM 4MBIT PARALLEL 32STSOP I
IS65WV1288FBLL-45HLA3 IC SRAM 1MBIT PARALLEL 32STSOP I
IS65WV1288DBLL-45HLA3 IC SRAM 1MBIT PARALLEL 32STSOP I
IS65WV1288FBLL-55HLA3 IC SRAM 1MBIT PARALLEL 32STSOP I
Leave a Message
Part Number Description
Product Description

Product Details



DESCRIPTION

The ISSI IS62WV5128ALL / IS62WV5128BLL are high speed, 4M bit static RAMs organized as 512K words by 8 bits. It is fabricated using ISSIs high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high performance and low power consumption devices.





FEATURES

• High-speed access time: 55ns, 70ns
• CMOS low power operation
36 mW (typical) operating
9 µW (typical) CMOS standby
• TTL compatible interface levels
• Single power supply
1.65V – 2.2V VDD (IS62WV5128ALL)
2.5V – 3.6V VDD (IS62WV5128BLL)
• Fully static operation: no clock or refresh required
• Three state outputs
• Industrial temperature available
• Lead-free available





Specifications

Attribute Attribute Value
Manufacturer ISSI
Product Category Memory ICs
Series IS62WV5128BLL
Type Asynchronous
Packaging Tray Alternate Packaging
Mounting-Style SMD/SMT
Package-Case 32-LFSOP (0.465", 11.80mm Width)
Operating-Temperature -40°C ~ 85°C (TA)
Interface Parallel
Voltage-Supply 2.5 V ~ 3.6 V
Supplier-Device-Package 32-sTSOP I
Memory Capacity 4M (512K x 8)
Memory-Type SRAM - Asynchronous
Speed 55ns
Data-Rate SDR
Access-Time 55 ns
Format-Memory RAM
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Interface-Type Parallel
Organization 512 k x 8
Supply-Current-Max 15 uA
Supply-Voltage-Max 3.6 V
Supply-Voltage-Min 2.5 V
Package-Case sTSOP-32
Maximum-Clock-Frequency 18 MHz

Descriptions

SRAM - Asynchronous Memory IC 4Mb (512K x 8) Parallel 55ns 32-sTSOP I
SRAM Chip Async Single 3.3V 4M-Bit 512K x 8 55ns 32-Pin STSOP-I
SRAM 4Mb 512Kx8 55ns Async SRAM
