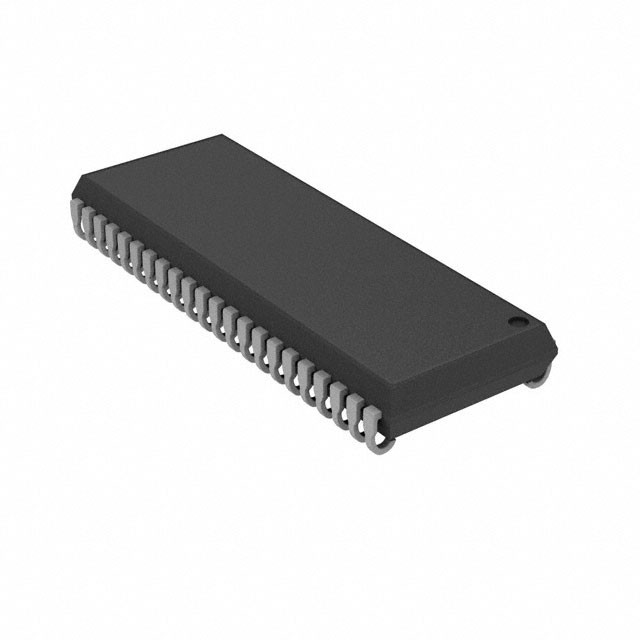

AS7C34098A-10JIN IC SRAM 4MBIT PARALLEL 44SOJ Alliance Memory, Inc.



Functional description

The AS7C34098A is a high-performance CMOS 4,194,304-bit Static Random Access Memory (SRAM) device organized as 262,144 words × 16 bits. It is designed for memory applications where fast data access, low power, and simple interfacing are desired.
Equal address access and cycle times (tAA, tRC, tWC) of 10/12/15/20 ns with output enable access times (tOE) of 4/5/6/7 ns are ideal for high-performance applications. The chip enable input CE permits easy memory expansion with multiple-bank memory systems.





Features

• Pin compatible with AS7C34098
• Industrial and commercial temperature
• Organization: 262,144 words × 16 bits
• Center power and ground pins
• High speed
- 10/12/15/20 ns address access time
- 4/5/6/7 ns output enable access time
• Low power consumption: ACTIVE
- 650 mW /max @ 10 ns
• Low power consumption: STANDBY
- 28.8 mW /max CMOS
• Individual byte read/write controls
• Easy memory expansion with CE, OE inputs
• TTL- and CMOS-compatible, three-state I/O
• 44-pin JEDEC standard packages
- 400-mil SOJ
- TSOP 2
• ESD protection ≥ 2000 volts
• Latch-up current ≥ 200 mA
