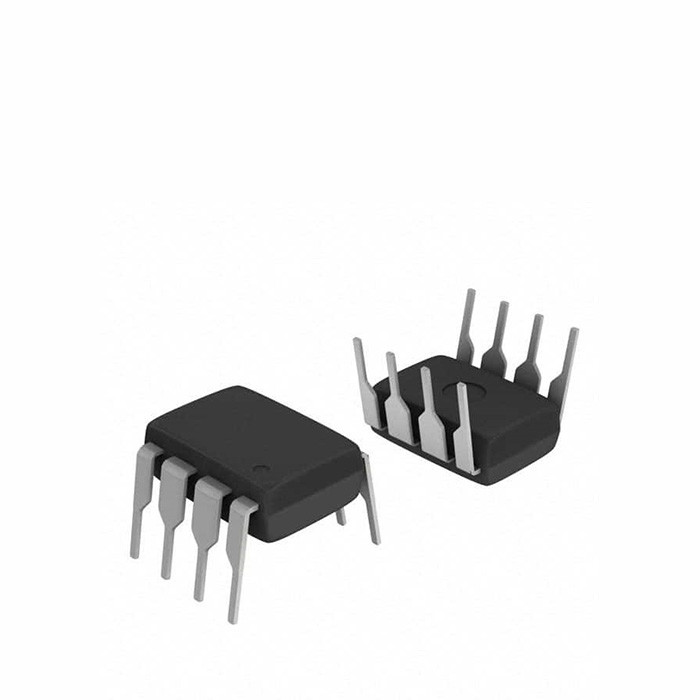

100KHZ 8 DIP Clock IC Chip NE555P OSC SINGLE TIMER Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | NE555P |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | 555 Type, Timer/Oscillator (Single) | Count | - |
|---|---|---|---|
| Frequency | 100kHz | Voltage - Supply | 4.5V ~ 16V |
| Current - Supply | 10 MA | Operating Temperature | 0°C ~ 70°C |
| Package / Case | 8-DIP (0.300", 7.62mm) | Supplier Device Package | 8-PDIP |
| Mounting Type | Through Hole | ||
| Highlight | 100KHZ Clock IC Chip,8 DIP Clock IC Chip,NE555P |
||
Product Description
NE555P IC OSC SINGLE TIMER 100KHZ 8-DIP Texas Instruments
Product Details
PRECISION TIMERS
NONLINEAR MODEL
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Programmable Timers and Oscillators |
| Series | NE555 |
| Type | 555 Type, Timer/Oscillator (Single) |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.015535 oz |
| Mounting-Style | Through Hole |
| Package-Case | 8-DIP (0.300", 7.62mm) |
| Frequency | 100kHz |
| Operating-Temperature | 0°C ~ 70°C |
| Mounting-Type | Through Hole |
| Voltage-Supply | 4.5 V ~ 16 V |
| Supplier-Device-Package | 8-PDIP |
| Current-Supply | 10mA |
| Count | - |
| Maximum Operating Temperature | + 70 C |
| Operating temperature range | 0 C |
| Operating-Supply-Current | 2000 uA |
| Supply-Voltage-Max | 16 V |
| Supply-Voltage-Min | 4.5 V |
| Package-Case | PDIP-8 |
| High-Level-Output-Current | 200 mA |
| Low-Level-Output-Current | - 200 mA |
| Number-of-Internal-Timers | 1 Timer |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| NE556D Signal Circuits |
Dual Precision Timer 14-SOIC 0 to 70 | Texas Instruments | NE555P vs NE556D |
| NE556DR Signal Circuits |
Dual Precision Timer 14-SOIC 0 to 70 | Texas Instruments | NE555P vs NE556DR |
| TLC555IP Signal Circuits |
2.1-MHz, 250-μA, Low-Power Timer 8-PDIP -40 to 85 | Texas Instruments | NE555P vs TLC555IP |
| ICM7555IPAZ Signal Circuits |
1 Func, 1MHz, CMOS, PDIP8 | Renesas Electronics Corporation | NE555P vs ICM7555IPAZ |
| NE555N Signal Circuits |
1 Func, BIPolar, PDIP8, DIP-8 | Fairchild Semiconductor Corporation | NE555P vs NE555N |
Descriptions
555 Type, Timer/Oscillator (Single) IC 100kHz 8-PDIP
Standard Timer Single 8-Pin PDIP Tube
Timers & Support Products Precision
