Internal Stable ADC Converter IC ADS1115IDGSR 10VSSOP 10 Pin

Brand Name Texas Instruments
Model Number ADS1115IDGSR
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features PGA, Selectable Address Number Of Bits 16
Sampling Rate (Per Second) 860 Number Of Inputs 2
Input Type Differential, Single Ended Data Interface I²C
Configuration MUX-PGA-ADC Ratio - S/HADC -
Number Of A/D Converters 1 Architecture Sigma-Delta
Reference Type Internal Voltage - Supply, Analog 2V ~ 5.5V
Voltage - Supply, Digital 2V ~ 5.5V Operating Temperature -40°C ~ 125°C
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Supplier Device Package 10-VSSOP
Mounting Type Surface Mount
High Light

Internal ADC Converter IC

,

Stable ADC Converter IC

,

ADS1115IDGSR

Leave a Message
Product Description

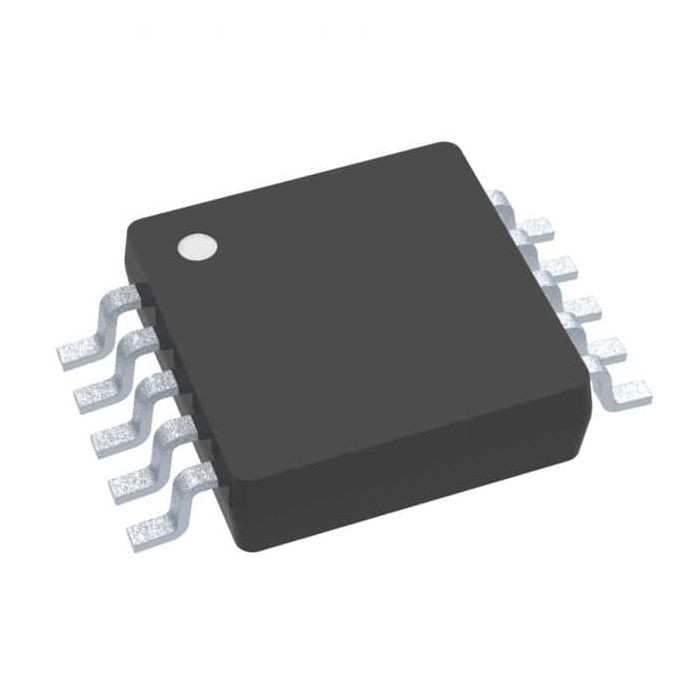

ADS1115IDGSR IC ADC 16BIT SIGMA-DELTA 10VSSOP Texas Instruments

Product Details

Description: (ADC)

The ADS1115IDGSR from Texas Instruments is a precision analog-to-digital converter (ADC) with a digital supply voltage of 2 V to 5.5 V, a minimum operating temperature of -40 C, and a maximum operating temperature of +125 C. It has a unit weight of 0.000836 oz and an input type of differential/single-ended. The power dissipation is 900 uW and the resolution is 16 bit.

Features of the ADS1115IDGSR include a low power consumption of 900 uW, a wide operating temperature range of -40 C to +125 C, a 16-bit resolution, and a digital supply voltage of 2 V to 5.5 V.

Applications of the ADS1115IDGSR include medical instrumentation, industrial process control, data acquisition systems, and portable instrumentation. It is suitable for use in applications that require low power consumption, wide operating temperature range, and high resolution.

Specifications

Attribute Attribute Value
Manufacturer Texas Instruments
Product Category Analog to Digital Converters (ADC)
Series ADS1115
Product Analog to Digital Converters
Type Precision ADC
Packaging Alternate Packaging
Unit-Weight 0.000836 oz
Mounting-Style SMD/SMT
Package-Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Input-Type Differential, Single Ended
Operating-Temperature -40°C ~ 125°C
Features PGA, Selectable Address
Number-of-Channels 2 Channel/4 Channel
Supplier-Device-Package 10-VSSOP
Sampling-Rate-Per-Second 860
Data-Interface I2C
Number-of-Bits 16 Bits
Voltage-Supply-Analog 2 V ~ 5.5 V
Voltage-Supply-Digital 2 V ~ 5.5 V
Configuration MUX-PGA-ADC
Architecture Sigma-Delta
Number-of-Inputs
Resolution 16 bit
Reference-Type Internal
Ratio-S-H:ADC
Number-of-A-D-Converters 1
Pd-Power-Dissipation 500 uW
Maximum Operating Temperature + 125 C
Operating temperature range - 40 C
Interface-Type Serial 2-Wire I2C
Package-Case VSSOP-10
Number-of-Converters 1 Converter
Sampling-Rate 860 S/s
Analog Power Supply 2 V to 5.5 V
Digital-Supply-Voltage 2 V to 5.5 V
INL-Integral-Nonlinearity 1 LSB
Functional compatible componentForm,Package,Functional compatible component
Manufacturer Part# Description Manufacturer Compare
ADS1114IDGST
Converters
16-Bit 860SPS 1-Ch Delta-Sigma ADC With PGA, Oscillator, Vref, Comparator, and I Texas Instruments ADS1115IDGSR vs ADS1114IDGST
ADS1114IDGSR
Converters
2 Texas Instruments ADS1115IDGSR vs ADS1114IDGSR
ADS1115IDGST
Converters
C 10-VSSOP -40 to 125 Texas Instruments ADS1115IDGSR vs ADS1115IDGST

Descriptions

Quad Channel Single ADC Delta-Sigma 860sps 16-bit Serial 10-Pin VSSOP T/R
Analog to Digital Converters - ADC 16B ADC w/ Int MUX PGA Comp Osc & Ref
