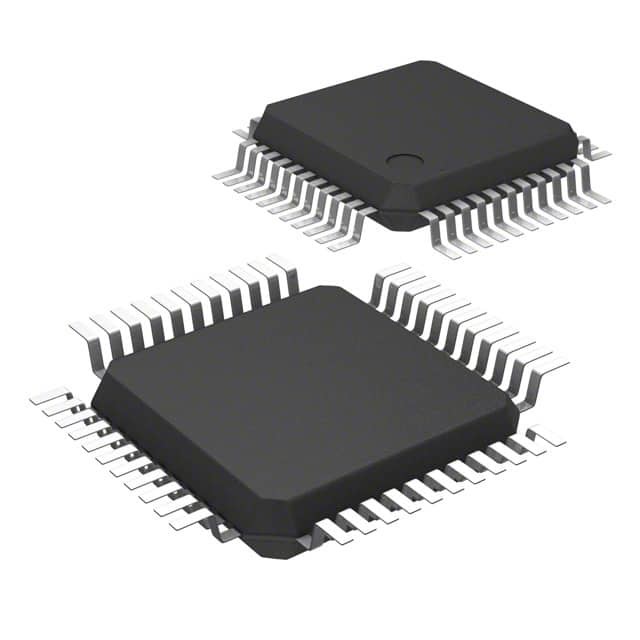

216K 24 Bit ADC IC Chip Surface Mount , 44LQFP AK5388AEQ Audio IC Chip
| Brand Name | Asahi Kasei Microdevices/AKM |
|---|---|
| Model Number | AK5388AEQ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Audio | Number Of Channels | 4 |
|---|---|---|---|
| Resolution (Bits) | 24 B | Sampling Rate (Per Second) | 216k |
| Data Interface | I²S | Voltage Supply Source | Analog And Digital |
| Voltage - Supply | 3V ~ 3.6V, 4.75V ~ 5.25V | Operating Temperature | -10°C ~ 70°C |
| Mounting Type | Surface Mount | Package / Case | 44-LQFP |
| Supplier Device Package | 44-LQFP (10x10) | ||
| Highlight | 216K ADC IC Chip,24 Bit ADC IC Chip,AK5388AEQ Audio IC Chip |
||
Product Description
AK5388AEQ IC AUDIO 24BIT 216K 44LQFP Asahi Kasei Microdevices/AKM
Product Details
GENERAL DESCRIPTION
The AK5388 is a 24bit, 216kHz sampling 4-channel A/D converter for high-end audio systems. The modulator in the AK5388 uses AKM’s Enhanced Dual Bit architecture, enabling the AK5388 to realize high accuracy and low cost. The AK5388 achieves 120dB dynamic range and 110dB S/N+D), and an optional mono mode extends dynamic range to 123dB. The AK5388’s digital filter features a modified FIR architecture that minimizes group delay while maintaining excellent linear phase response. So the device is suitable for professional audio applications including recording, sound reinforcement, effects processing, sound cards, and high-end A/V receivers.The AK5388 is available in 44pin LQFP package.
FEATURES
Sampling Rate: 8kHz ~ 216kHzFull Differential Inputs
S/(N+D): 110dB
DR, S/N: 120dB(Mono Mode: 123dB)
Short Delay Digital Filter (GD=12.6/fs)
•Passband: 0~21.648kHz (@fs=48kHz)
•Ripple: 0.01dB
•Stopband: 80dB
Digital HPF
Power Supply: 4.75 ~ 5.25V(Analog), 3.0 ~ 3.6V(Digital)
Output format: 24bit MSB justified, I2S or TDM
Cascade TDM I/F: 8ch/48kHz, 4ch/96kHz, 4ch/192kHz
Master & Slave Mode
Overflow Flag
Power Dissipation: 575 mW (@fs=48kHz)
Package: 44pin LQFP
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | AKM Semiconductor Inc. |
| Product Category | ADCs/DACs |
| Series | - |
| Type | Audio |
| Packaging | Tray |
| Package-Case | 44-LQFP |
| Operating-Temperature | -10°C ~ 70°C |
| Mounting-Type | Surface Mount |
| Voltage-Supply | 3 V ~ 3.6 V, 4.75 V ~ 5.25 V |
| Supplier-Device-Package | 44-LQFP (10x10) |
| Resolution-Bits | 24 b |
| Sampling-Rate-Per-Second | 216k |
| Data-Interface | I2S |
| Voltage-Supply-Source | Analog and Digital |
Descriptions
Audio 24 bit 216k I?S 44-LQFP (10x10)
