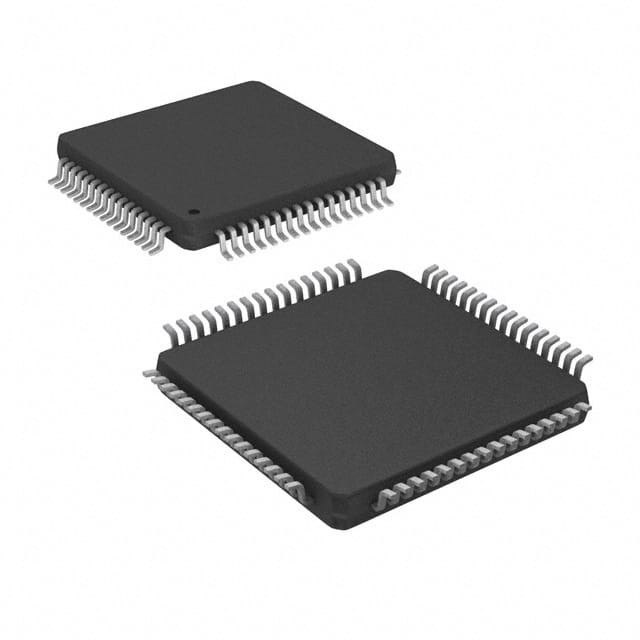

8 Channels Data Acquisition Chip , ADS1299IPAGR DAS Chip 24BIT 64TQFP
| Brand Name | Texas Instruments |
|---|---|
| Model Number | ADS1299IPAGR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Bits | 24 | Number Of Channels | 8 |
|---|---|---|---|
| Power (Watts) | 42 MW | Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.8V ~ 3.6V | Mounting Type | Surface Mount |
| Package / Case | 64-TQFP | Supplier Device Package | 64-TQFP (10x10) |
| Highlight | 8 Channels Data Acquisition Chip,Data Acquisition Chip 24BIT,ADS1299IPAGR DAS Chip |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ADS1299IPAG | IC AFE 8 CHAN 24BIT 64TQFP |
Product Description
ADS1299IPAGR IC AFE 8 CHAN 24BIT 64TQFP Texas Instruments
Product Details
DESCRIPTION
The ADS1225 and ADS1226 are 24-bit delta-sigma analog-to-digital (A/D) converters. They offer excellent performance, ease-of-use, and low power in a small 4mm × 4mm QFN package and are well-suited for demanding high-resolution measurements, especially in portable and other space-saving and power-constrained applications.
FEATURES
• 100SPS Data Rate (High-Speed Mode)• Single-Cycle Settling
• Easy Conversion Control with START Pin
• Automatic Shutdown
• Low Noise: 4µVRMS Noise (High-Resolution Mode)
• Input Multiplexer with Two Differential Channels (ADS1226)
• Voltage Reference Supports Ratiometric Measurements
• Self-Calibrating
• Simple Read-Only 2-Wire Serial Interface
• Internal High-Impedance Input Buffer
• Internal Temperature Sensor
• Internal Oscillator
• Low-Power: 1mW While Operating, < 1µA During Shutdown
• Analog and Digital Supplies: 2.7V to 5.5V
APPLICATIONS
• Hand-Held Instrumentation• Portable Medical Equipment
• Industrial Process Control
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Analog Front End (AFE) |
| Series | - |
| Packaging | Alternate Packaging |
| Package-Case | 64-TQFP |
| Number-of-Channels | 8 Channels |
| Supplier-Device-Package | 64-TQFP (10x10) |
| Number-of-Bits | 24 Bits |
| Watt | 42mW |
| Voltage-Supply-Analog | 5V |
| Voltage-Supply-Digital | 1.8 V ~ 3.6 V |
Descriptions
8 Channel AFE 24 Bit 42mW 64-TQFP (10x10)
AFE General Purpose 8ADC 24bit 5V 64-Pin TQFP T/R
Analog Front End - AFE Low-Noise,8-Ch,24B AFE
