Bidirectional Logic BUFFER IC 60Mbps TXS0108ERGYR For Matching Resistors

Brand Name Texas Instruments
Model Number TXS0108ERGYR
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Auto-Direction Sensing Translator Type Voltage Level
Channel Type Bidirectional Number Of Circuits 1
Channels Per Circuit 8 Voltage - VCCA 1.4 V ~ 3.6 V
Voltage - VCCB 1.65 V ~ 5.5 V Input Signal -
Output Signal - Output Type Open Drain, Push-Pull
Data Rate 60Mbps Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount Package / Case 20-VFQFN Exposed Pad
Supplier Device Package 20-VQFN (3.5x4.5)
High Light

Bidirectional Logic BUFFER IC

,

Logic BUFFER IC 60Mbps

,

TXS0108ERGYR

Leave a Message
Product Description

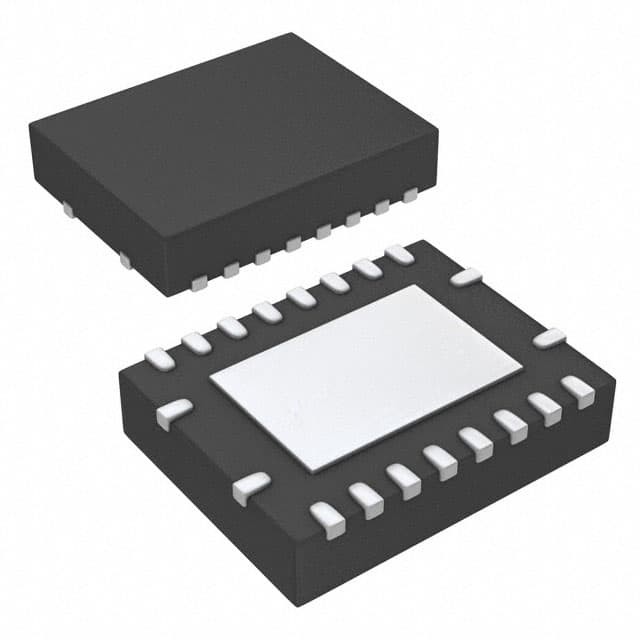

TXS0108ERGYR IC TRANSLTR BIDIRECTIONAL 20VQFN Texas Instruments

Product Details

Description

This is an 8-bit non-inverting level translator with two independently configurable power rails. The VCCA pin supply voltage is tracked by the A port.
Any supply voltage between 1.4V and 3.6V is accepted by the VCCA pin. The VCCB pin supply voltage is tracked by the B port. Any supply voltage between 1.65 V and 5.5 V is accepted by the VCCB pin. Low Voltage bidirectional translation between any of the 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5V voltage nodes is enabled by two input supply pins.



Features

• Two circuit configurations
• Excellent parametric tracking
• Ultra precision ration matching
• Products with lead-free terminations meet EU RoHS and China RoHS requirements



Applications

• Voltage diversion
• A/D conversion
• Reference voltage
• Matching resistors
• Parametric control

Specifications

Attribute Attribute Value
Manufacturer Texas Instruments
Product Category Voltage Translators, Level Shifters
Series TXS0108E
Packaging Alternate Packaging
Unit-Weight 0.001517 oz
Mounting-Style SMD/SMT
Package-Case 20-VFQFN Exposed Pad
Operating-Temperature -40°C ~ 85°C (TA)
Mounting-Type Surface Mount
Output-Type Open Drain, Push-Pull
Features Auto-Direction Sensing
Supplier-Device-Package 20-VQFN (3.5x4.5)
Number-of-Circuits 1 Circuit
Data-Rate 60Mbps
Logic-Type Voltage Level Translator
Translator-Type Voltage Level
Channel-Type Bidirectional
Channels-per-Circuit 8
Voltage-VCCA 1.2 V ~ 3.6 V
Voltage-VCCB 1.65 V ~ 5.5 V
Input-Signal -
Output-Signal -
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Supply-Voltage-Max 3.6 V 5.5 V
Supply-Voltage-Min 1.2 V 1.65 V
Package-Case VQFN-20
Propagation Delay 312 ns

Descriptions

Voltage Level Translator Bidirectional 1 Circuit 8 Channel 60Mbps 20-VQFN (3.5x4.5)
Voltage Level Translator 8 Bidirectional 20-Pin VQFN EP T/R
Translation - Voltage Levels 8B Bidir Vltg-Level Translator
