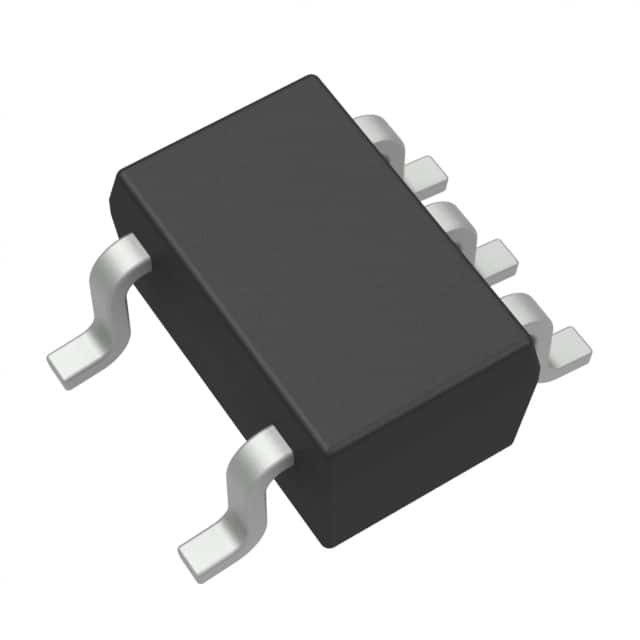

0.9V-3.6V Logic BUFFER IC SN74AUP1T34DCKR SC70-5 Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | SN74AUP1T34DCKR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Logic Type | Buffer, Non-Inverting | Number Of Elements | 1 |
|---|---|---|---|
| Number Of Bits Per Element | 1 | Input Type | - |
| Output Type | Push-Pull | Current - Output High, Low | 6mA, 6mA |
| Voltage - Supply | 0.9V ~ 3.6V | Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 | ||
| High Light | 0.9V Logic BUFFER IC,3.6V Logic BUFFER IC,SN74AUP1T34DCKR |
||
Product Description
SN74AUP1T34DCKR IC TRANSLATOR UNIDIR SC70-5 Texas Instruments
Product Details
Description
The SN74AUP1T34 is a 1-bit noninverting translator with two independently configurable power supply rails. It is a one-way translator from A to B. The A port is intended to monitor VCCA. The supply voltage range for VCCA is 0.9 V to 3.6 V. The B port is intended to monitor VCCB. VCCB can accept supply voltages ranging from 0.9 V to 3.6 V. This enables low-voltage translation between voltage nodes of 1 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V. The SN74AUP1T34 is also fully specified for Ioff-based partial-power-down applications. When the device is turned off, the Ioff circuitry disables the outputs, preventing damaging current backflow through the device.
Features
• Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at Input
• ESD Protection Exceeds JESD 22
• 5000-V Human-Body Model (A114-A)
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• Wide Operating VCC Range of 0.9 V to 3.6 V • Balanced Propagation Delays: tPLH = tPHL (1.8-V to 3.3-V Translation Typical)
• Low Static-Power Consumption: Maximum of 5-µA ICC
• ±6-mA Output Drive at 3 V • Ioff Supports Partial Power-Down-Mode Operation
• VCC Isolation Feature – If VCCA Input Is at GND, B Port Is in the High-Impedance state
Applications
• Personal Electronics
• Telecommunications
• Enterprise
• Industrial
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Voltage Translators, Level Shifters |
| Series | 74AUP |
| Type | Unidirectional Voltage Level Translators |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.000705 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 5-TSSOP, SC-70-5, SOT-353 |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Non-Inverted |
| Features | - |
| Supplier-Device-Package | SC-70-5 |
| Number-of-Circuits | 1 Circuit |
| Data-Rate | - |
| Translator-Type | Voltage Level |
| Channel-Type | Unidirectional |
| Channels-per-Circuit | 1 |
| Voltage-VCCA | 0.9 V ~ 3.6 V |
| Voltage-VCCB | 0.9 V ~ 3.6 V |
| Input-Signal | - |
| Output-Signal | - |
| Maximum Operating Temperature | + 85 C |
| Supply-Voltage-Max | 3.6 V |
| Supply-Voltage-Min | 900 mV |
| Package-Case | SC-70-5 |
Descriptions
Voltage Level Translator Unidirectional 1 Circuit 1 Channel SC-70-5
Voltage Level Translator 5-Pin SC-70 T/R
Translation - Voltage Levels 1B Unidirec Vltg-Lev Translator
