74HC595D Logic BUFFER IC Shift Register 8BIT 16SOP Toshiba Semiconductor And Storage
| Brand Name | Toshiba Semiconductor and Storage |
|---|---|
| Model Number | 74HC595D |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Logic Type | Shift Register | Output Type | Tri-State |
|---|---|---|---|
| Number Of Elements | 1 | Number Of Bits Per Element | 8 |
| Function | Serial To Parallel, Serial | Voltage - Supply | 2V ~ 6V |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 16-SOIC |
| Highlight | Logic BUFFER IC Shift Register,Logic BUFFER IC 8BIT,74HC595D |
||
Product Description

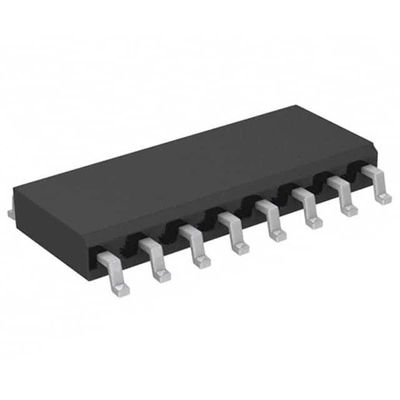

74HC595D IC SHIFT REGISTER 8BIT 16SOP Toshiba Semiconductor and Storage
Product Details
General description
The 74HC595; 74HCT595 is an 8-bit serial-in/serial or parallel-out shift register with a storage register and 3-state outputs. Both the shift and storage register have separate clocks.
Features and benefits
• 8-bit serial input• 8-bit serial or parallel output
• Storage register with 3-state outputs
• Shift register with direct clear
• 100 MHz (typical) shift out frequency
• Complies with JEDEC standard no. 7A
• Input levels:
– For 74HC595: CMOS level
– For 74HCT595: TTL level
• ESD protection:
– HBM JESD22-A114F exceeds 2000 V
– MM JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Applications
• Serial-to-parallel data conversion• Remote control holding register
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | N✖P Semiconductors |
| Product Category | Shift Registers |
| Categories | Logic - Shift Registers |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | 74HC |
| Packaging | Cut Tape (CT) |
| Part-Status | Active |
| Logic-Type | Shift Register |
| Output-Type | Tri-State |
| Number-of-Elements | 1 Element |
| Number-of-Bits-per-Element | 8 |
| Function | Serial to Parallel |
| Voltage-Supply | 2 V ~ 6 V |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Package-Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier-Device-Package | 16-SOP |
Descriptions
IC SHIFT REGISTER 8BIT 16SOP
Shift Register Single 8-Bit Serial to Serial/Parallel 16-Pin SOIC
