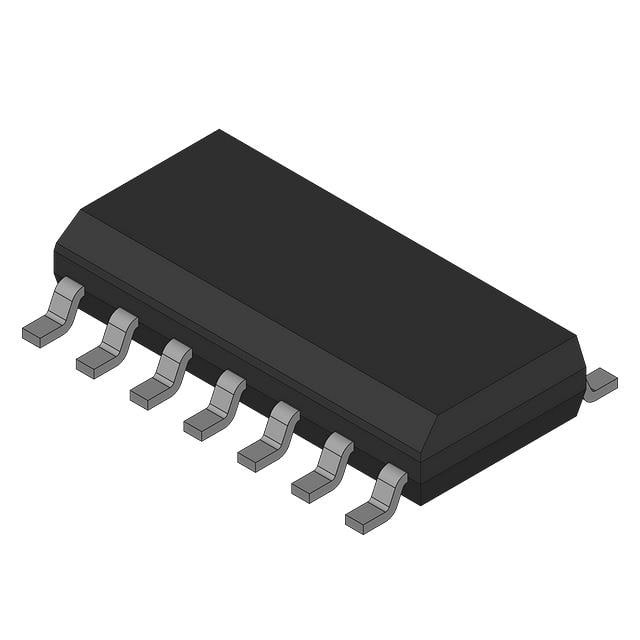

X40020S14I-B IC SUPERVISOR 2 CHANNEL 14SOIC Renesas Electronics America Inc



DESCRIPTION

The X40020 combines power-on reset control, watch dog timer, supply voltage supervision, and secondary supervision, and manual reset, in one package. This combination lowers system cost, reduces board space requirements, and increases reliability.





FEATURES

• Dual voltage detection and reset assertion
—Three standard reset threshold settings (4.6V/2.9V, 4.6V/2.6V, 2.9V/1.6V)
—VTRIP2 programmable down to 0.9V
—Adjust low voltage reset threshold voltages using special programming sequence
—Reset signal valid to VCC = 1V
—Monitor two voltages or detect power fail
• Battery switch backup
• VOUT: 5mA to 50mA from VCC; 250µA from VBATT
• Fault detection register
• Selectable power-on reset timeout (0.05s, 0.2s, 0.4s, 0.8s)
• Selectable watchdog timer interval(25ms, 200ms, 1.4s, off)
• Debounced manual reset input
• Low power CMOS
—25µA typical standby current, watchdog on
—6µA typical standby current, watchdog off
—1µA battery current in backup mode
• 400kHz 2-wire interface
• 2.7V to 5.5V power supply operation
• Available packages
—14-lead SOIC, TSSOP
• Monitor voltages: 5V to 1.6V
• Memory security
• Pb-free plus anneal available (RoHS compliant)





APPLICATIONS

• Communications equipment
—Routers, hubs, switches
—Disk arrays
• Industrial systems
—Process control
—Intelligent instrumentation
• Computer systems
—Desktop computers
—Network servers
