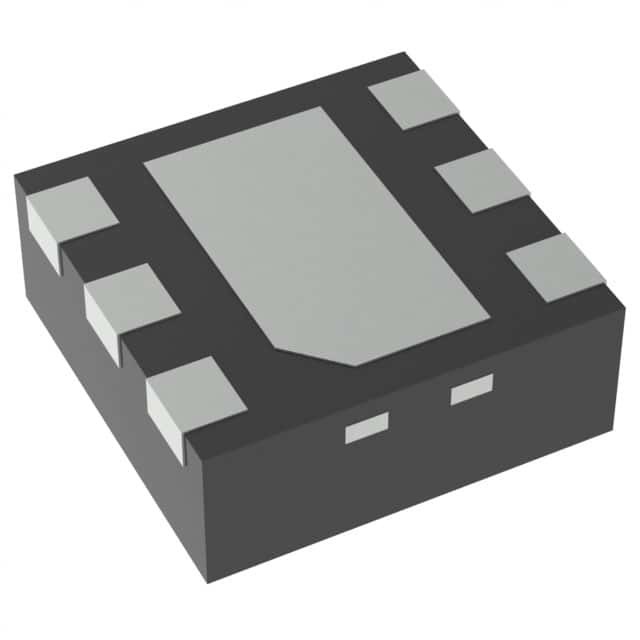

TPS3808G01DRVR IC SUPERVISOR 1 CHANNEL 6WSON Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | TPS3808G01DRVR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Simple Reset/Power-On Reset | Number Of Voltages Monitored | 1 |
|---|---|---|---|
| Voltage - Threshold | Adjustable/Selectable | Output | Open Drain Or Open Collector |
| Reset | Active Low | Reset Timeout | Adjustable/Selectable |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad | Supplier Device Package | 6-WSON (2x2) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| TPS3808G01DRVR | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G18DRVR | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3838K33DRVT | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G18DRVT | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G01DRVT | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G12DRVR | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G01QDRVRQ1 | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3818G25DRVT | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G33DRVT | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G12DRVT | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G15DRVT | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G25DRVT | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G30DRVT | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G33DRVR | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G15DRVR | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G25DRVR | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G30DRVR | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G01DRVRG4 | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3838K33DRVR | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G12DRVTG4 | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G25DRVRG4 | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3808G25DRVTG4 | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3818G25DRVR | IC SUPERVISOR 1 CHANNEL 6WSON | |
| TPS3838K33DRVTG4 | IC 2.93V NANOPWR MON 6SON |
Product Description
Product Details
The Texas Instruments TPS3808G01DRVR is a 6-SON (2x2) Simple Reset/Power-On Reset Adjustable/Selectable Supervisor IC designed to provide reliable reset and power-on reset functions for a wide range of applications. This device features an open drain or open collector active low output, adjustable/selectable reset thresholds, and an operating temperature range of -40°C to 125°C (TJ). It is ideal for use in automotive, industrial, and consumer applications. With its adjustable/selectable reset thresholds, the TPS3808G01DRVR can be tailored to meet the specific needs of any application. This device is also designed to provide reliable reset and power-on reset functions, ensuring that your system is always running at its best.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Supervisors |
| Series | TPS3808G01 |
| Type | Simple Reset/Power-On Reset |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.000342 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 6-WDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 125°C (TJ) |
| Mounting-Type | Surface Mount |
| Output-Type | Active Low Open Drain |
| Supplier-Device-Package | 6-SON (2x2) |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Accuracy | 0.5 % |
| Voltage monitoring relays | 1 |
| Reset-Timeout | Adjustable/Selectable |
| Voltage-Threshold | Adjustable/Selectable |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 2.7 uA |
| Battery-Backup-Switching | No Backup |
| Part-#-Aliases | HPA00489DRVR |
| Supply-Voltage-Max | 6.5 V |
| Supply-Voltage-Min | 1.65 V |
| Package-Case | WSON-6 |
| Watchdog-Timers | No Watchdog |
| Threshold-Voltage | 0.405 V |
| Input Monitoring | 1 Input |
| Manual-Reset | Manual Reset |
| Chip-Enable-Signals | No Chip Enable |
| Power-Fail-Detection | No |
| Reset-Delay-Time | 300 ms |
| Overvoltage-Threshold | Adjustable |
| Undervoltage-Threshold | Adjustable |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| TPS3808G01DRVTG4 Power Circuits |
Low Quiescent Current, Programmable-Delay Supervisory Circuit 6-WSON -40 to 125 | Texas Instruments | TPS3808G01DRVR vs TPS3808G01DRVTG4 |
| TPS3808G01DRVRG4 Power Circuits |
Low-quiescent current supervisor with programmable-delay and manual reset 6-WSON -40 to 125 | Texas Instruments | TPS3808G01DRVR vs TPS3808G01DRVRG4 |
| TPS3808G01DRVT Power Circuits |
Low-quiescent current supervisor with programmable-delay and manual reset 6-WSON -40 to 125 | Texas Instruments | TPS3808G01DRVR vs TPS3808G01DRVT |
Descriptions
Supervisor Open Drain or Open Collector 1 Channel 6-SON (2x2)
Processor Supervisor Adj 1 Active Low/Open Drain 6-Pin WSON EP T/R
Supervisory Circuits Low Quies Crnt Progr Delay Sup Crct
