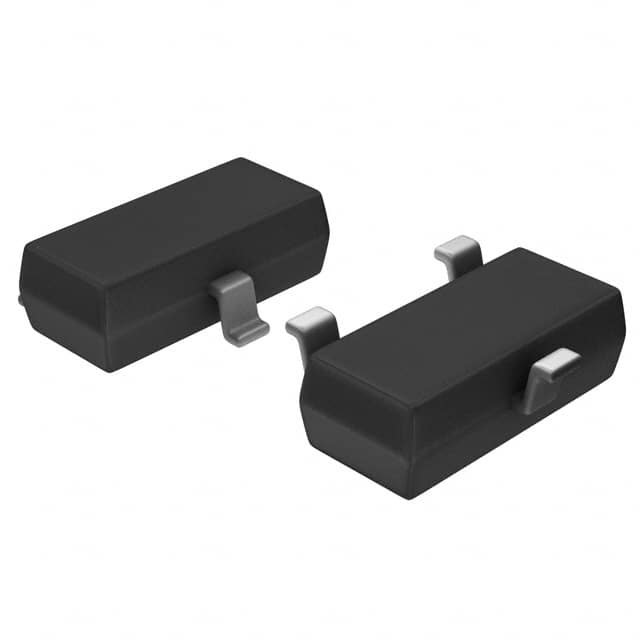

TC54VN2902ECB713 IC SUPERVISOR 1 CHANNEL SOT23A-3 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | TC54VN2902ECB713 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Simple Reset/Power-On Reset | Number Of Voltages Monitored | 1 |
|---|---|---|---|
| Voltage - Threshold | 2.9V | Output | Open Drain Or Open Collector |
| Reset | Active Low | Reset Timeout | - |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | Supplier Device Package | SOT-23A-3 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| TC54VN2902ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN2702ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN2102ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN3002ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VC2702ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN4302ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VC2902ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VC4502ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC51N2202ECBTR | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VC3002ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VC4202ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VC4302ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN1402ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VC2102ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VC1402ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC51N2702ECBTR | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN4502ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN4202ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN2402ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN4002ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VC2502ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VC2602ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN1702ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN1902ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC51N3002ECBTR | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VC1802ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN1102ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN2002ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN2502ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 | |
| TC54VN3302ECB713 | IC SUPERVISOR 1 CHANNEL SOT23A-3 |
Product Description
Product Details
General Description
The TC54 series are CMOS voltage detectors that are especially well suited for battery-powered applications because of their extremely low 1 µA operating current and small surface-mount packaging. Each part is lasertrimmed to the desired threshold voltage, which can be specified from 1.4V to 6.0V with a 2% tolerance.
Features
• ±2.0% Detection Thresholds• Small Packages: 3-Pin SOT-23A, SOT-89, and TO-92
• Low Current Drain: 1 µA, typical
• Wide Detection Range: 1.1V to 6.0V
• Wide Operating Voltage Range: 0.7V to 10V
Applications
• Battery Voltage Monitoring• Microprocessor Reset
• System Brown-Out Protection
• Switching Circuit in Battery Backup
• Level Discriminator
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Supervisors |
| Series | TC54 |
| Type | Simple Reset/Power-On Reset |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-236-3, SC-59, SOT-23-3 |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | CMOS Open Drain |
| Supplier-Device-Package | SOT-23A-3 |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Voltage monitoring relays | 1 |
| Reset-Timeout | - |
| Voltage-Threshold | 2.9V |
| Pd-Power-Dissipation | 240 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 1.1 uA |
| Battery-Backup-Switching | Backup |
| Supply-Voltage-Max | 10 V |
| Supply-Voltage-Min | 0.7 V |
| Package-Case | SOT-23A-3 |
| Watchdog-Timers | No Watchdog |
| Threshold-Voltage | 1.1 V to 6 V |
| Input Monitoring | 1 Input |
| Manual-Reset | No Manual Reset |
| Chip-Enable-Signals | No Chip Enable |
| Power-Fail-Detection | Yes |
| Reset-Delay-Time | 0.2 ms |
| Overvoltage-Threshold | 2.96 V |
| Undervoltage-Threshold | 2.84 V |
Descriptions
Supervisor Open Drain or Open Collector 1 Channel SOT-23A-3
Processor Supervisor 2.9V 1 Open Drain 3-Pin SOT-23A T/R
Supervisory Circuits 2.9V 2%
