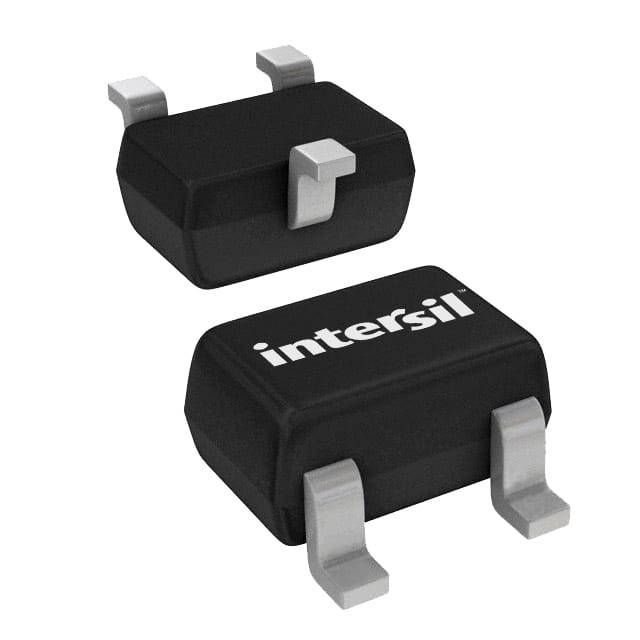

ISL88002IE29Z-TK IC SUPERVISOR 1 CHANNEL SC70-3 Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | ISL88002IE29Z-TK |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Simple Reset/Power-On Reset | Number Of Voltages Monitored | 1 |
|---|---|---|---|
| Voltage - Threshold | 2.925V | Output | Open Drain Or Open Collector |
| Reset | Active Low | Reset Timeout | 140ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 | Supplier Device Package | SC-70-3 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ISL88002IE29Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE16Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE29Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE26Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE46Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE31Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE23Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE31Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE31Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE26Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE22Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE26Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE31Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE46Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE26Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE26Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE31Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE46Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE26Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE31Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE29Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE22Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE23Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE17Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE22Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE29Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE23Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE17Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE46Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE46Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE23Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE17Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE31Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE31Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE17Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE17Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE23Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE44Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE16Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE26Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE29Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE44Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE46Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE22Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE44Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE46Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE16Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE23Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE22Z-TK | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE17Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE16Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE46Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE44Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE23Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE29Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE44Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE31Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE26Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE46Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE22Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE16Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE29Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE44Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE22Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE23Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE16Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE17Z-T | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE34Z-TR5361 | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE16Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE17Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE23Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88001IE44Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE16Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE22Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE29Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88002IE44Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE16Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE17Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE22Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE26Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE29Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 | |
| ISL88003IE44Z-T7A | IC SUPERVISOR 1 CHANNEL SC70-3 |
Product Description
Product Details
The ISL88001, ISL88002, ISL88003 supervisors are extremely low power 160nA voltage supervisors that help to monitor the power supply voltages in a wide variety of applications. By providing Power-On Reset and supply voltage supervision in small 3 Ld SC-70 and SOT-23 packages, the ISL88001, ISL88002, ISL88003 devices can help to lower system cost, reduce board space requirements and increase the reliability of systems.
Features
• Single Voltage Monitoring Supervisors• Fixed-Voltage Options Allow Precise Monitoring of +1.8V, +2.5V, +3.0V, +3.3V and +5.0V Power Supplies
• Ultra Low 160nA Supply Current
• ±1.2% Voltage Threshold Accuracy
• 190ms Power-On Reset Timeout
• Reset Signal Valid Down to VDD = 1V
• No External Components Necessary
• Immune to Power-Supply Transients
• Available in Small 3 Ld SC-70 and 3 Ld SOT-23 Pb-free Packages
• Pin Compatible with MAX803, MAX809, MAX810
• Pb-Free (RoHS Compliant)
Applications
• Microprocessor/Microcontroller Systems• Intelligent Instruments
• Controllers
• Computer Systems
• Portable/Battery-Powered Equipment
• PDA and Hand-Held PC Devices
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | Supervisors |
| Series | ISL88002 |
| Type | Simple Reset/Power-On Reset |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.000219 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | SC-70, SOT-323 |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | SC-70-3 |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Voltage monitoring relays | 1 |
| Reset-Timeout | 140 ms Minimum |
| Voltage-Threshold | 2.925V |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 0.35 uA |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 1.8 V |
| Package-Case | SC-70-3 |
| Watchdog-Timers | No Watchdog |
| Threshold-Voltage | 1.8 V to 5.5 V |
| Input Monitoring | 1 Input |
| Manual-Reset | No Manual Reset |
| Overvoltage-Threshold | 2.96 V |
| Undervoltage-Threshold | 2.89 V |
Descriptions
Supervisor Open Drain or Open Collector 1 Channel SC-70-3
Voltage Monitor 1.8V to 5.5V 3-Pin SC-70 T/R
Supervisory Circuits LW PWR VAGE SUPERVIS PUSH-PULL /RST 2 92V
