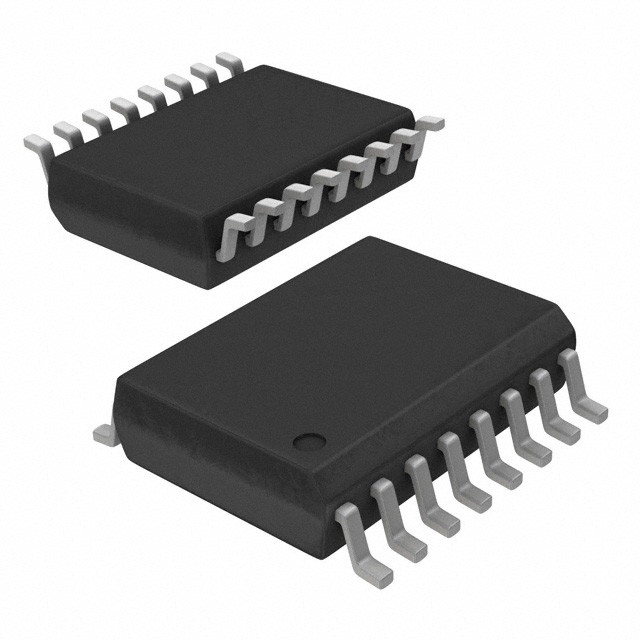

MAX691ACWE+T IC SUPERVISOR 1 CHANNEL 16SOIC Analog Devices Inc./Maxim Integrated



General Description

The MAX691A/MAX693A/MAX800L/MAX800M microprocessor (µP) supervisory circuits are pin-compatible upgrades to the MAX691, MAX693, and MAX695. They improve performance with 30µA supply current, 200ms typ reset active delay on power-up, and 6ns chip enable propagation delay. Features include write protection of CMOS RAM or EEPROM, separate watchdog outputs, backup-battery switchover, and a RESET output that is valid with VCC down to 1V. The MAX691A/MAX800L have a 4.65V typical reset-threshold voltage, and the MAX693A/MAX800M’s reset threshold is 4.4V typical. The MAX800L/MAX800M guarantee power-fail accuracies to ±2%.





Features

♦ 200ms Power-OK/Reset Timeout Period
♦ 1µA Standby Current, 30µA Operating Current
♦ On-Board Gating of Chip-Enable Signals, 10ns Max Delay
♦ MaxCap™ or SuperCap™ Compatible
♦ Guaranteed RESET Assertion to VCC = +1V
♦ Voltage Monitor for Power-Fail or Low-Battery Warning
♦ Power-Fail Accuracy Guaranteed to ±2% (MAX800L/M)
♦ Available in 16-Pin Narrow SO and Plastic DIP Packages





Applications

Computers
Controllers
Intelligent Instruments
Automotive Systems
Critical µP Power Monitoring
