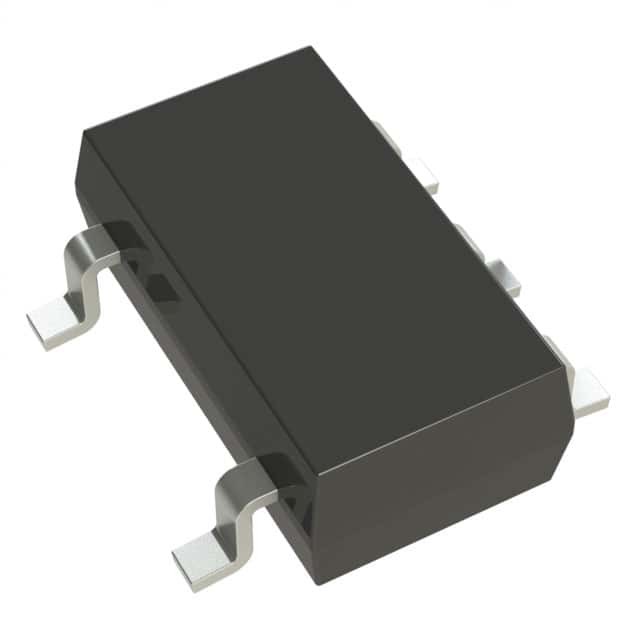

LMC7101BYM5-TR IC OPAMP GP 1 CIRCUIT SOT23-5 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | LMC7101BYM5-TR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | General Purpose | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 0.3V/µs |
| Gain Bandwidth Product | 500 KHz | -3db Bandwidth | - |
| Current - Input Bias | 1 PA | Voltage - Input Offset | 110 µV |
| Current - Supply | 800µA | Current - Output / Channel | 300 MA |
| Voltage - Supply Span (Min) | 2.7 V | Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 | Supplier Device Package | SOT-23-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LMC7101BYM5-TR | IC OPAMP GP 1 CIRCUIT SOT23-5 | |
| MIC6211YM5-TR | IC OPAMP GP 1 CIRCUIT SOT23-5 | |
| MIC7300YM5-TR | IC OPAMP GP 1 CIRCUIT SOT23-5 | |
| LMC7101AYM5-TR | IC OPAMP GP 1 CIRCUIT SOT23-5 | |
| MIC7111YM5-TR | IC OPAMP GP 1 CIRCUIT SOT23-5 | |
| MIC6211BM5-TR | IC OPAMP GP 1 CIRCUIT SOT23-5 | |
| MIC7300BM5-TR | IC OPAMP GP 1 CIRCUIT SOT23-5 | |
| LMC7101AIM5-TR | IC OPAMP GP 1 CIRCUIT SOT23-5 | |
| LMC7101BIM5-TR | IC OPAMP GP 1 CIRCUIT SOT23-5 | |
| MIC7111BM5-TR | IC OPAMP GP 1 CIRCUIT SOT23-5 | |
| MIC910BM5-TR | IC OPAMP VFB 1 CIRCUIT SOT23-5 | |
| MIC911BM5-TR | IC OPAMP VFB 1 CIRCUIT SOT23-5 | |
| MIC912BM5-TR | IC OPAMP GP 1 CIRCUIT SOT23-5 | |
| MIC913BM5-TR | IC OPAMP VFB 1 CIRCUIT SOT23-5 | |
| MIC914BM5-TR | IC OPAMP VFB 1 CIRCUIT SOT23-5 | |
| MIC910YM5-TR | IC OPAMP VFB 1 CIRCUIT SOT23-5 | |
| MIC911YM5-TR | IC OPAMP VFB 1 CIRCUIT SOT23-5 | |
| MIC912YM5-TR | IC OPAMP VFB 1 CIRCUIT SOT23-5 | |
| MIC913YM5-TR | IC OPAMP VFB 1 CIRCUIT SOT23-5 | |
| MIC914YM5-TR | IC OPAMP VFB 1 CIRCUIT SOT23-5 |
Product Description
Product Details
Description
The LMC7101 is a high-performance, low-power, operational amplifier that is pin-for-pin compatible with the National Semiconductor LMC7101. It features rail-to-rail input and output performance in the IttyBitty SOT-23-5 package.
The LMC7101 is a 500 kHz gain–bandwidth amplifier designed to operate from 2.7V to 12V single-ended power supplies with guaranteed performance at supply voltages of 2.7V, 3V, 5V, and 12V.
This op amp’s input common-mode range includes ground and extends 300 mV beyond the supply rails. For example, the common mode range is –0.3V to +5.3V with a 5V supply
Features
• Small footprint SOT-23-5 package
• Guaranteed 2.7V, 3V, 5V, and 12V performance
• 500kHz gain-bandwidth
• 0.01% total harmonic distortion at 10kHz (5V, 2kΩ)
• 0.5mA typical supply current at 5V
Applications
• Mobile communications, cellular phones, pagers
• Battery-powered instrumentation
• PCMCIA, USB
• Portable computers and PDAs
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Instrumentation Amplifier |
| Manufacturer | Microchip |
| Product-Category | Operational Amplifiers - Op Amps |
| RoHS | Details |
| Mounting-Style | SMD/SMT |
| Package-Case | SOT-23-5 |
| Number-of-Channels | 1 Channel |
| GBP-Gain-Bandwidth-Product | 500 kHz |
| SR-Slew-Rate | 0.4 V/us |
| CMRR-Common-Mode-Rejection-Ratio | 50 dB |
| Ib-Input-Bias-Current | 64 pA |
| Vos-Input-Offset-Voltage | 9 mV |
| Operating-Supply-Current | 1.71 mA |
| Maximum-Operating-Temperature | + 85 C |
| Minimum-Operating-Temperature | - 40 C |
| Shutdown | No Shutdown |
| Packaging | Reel |
| Amplifier-Type | Operational Amplifier |
| Brand | Microchip Technology / Micrel |
| en-Input-Voltage-Noise-Density | 37 nV/sqrt Hz |
| Input-Type | Rail to Rail |
| Output-Type | Rail to Rail |
| Product | Operational Amplifiers |
| Part-#-Aliases | LMC7101BYM5 TR |
| Unit-Weight | 0.001058 oz |
Descriptions
General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5
OP Amp Single GP R-R I/O 12V 5-Pin SOT-23 T/R
Operational Amplifiers - Op Amps
