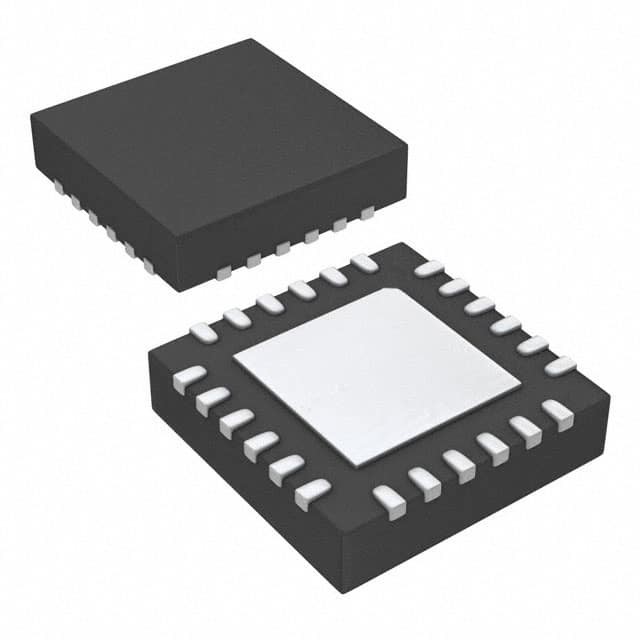

EL5227CLZ IC BUFFER 8 CIRCUIT 24QFN Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | EL5227CLZ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | Buffer | Number Of Circuits | 8 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 2.2V/µs |
| Gain Bandwidth Product | - | -3db Bandwidth | 2.5 MHz |
| Current - Input Bias | 2 NA | Voltage - Input Offset | 1 MV |
| Current - Supply | 1.3mA (x8 Channels) | Current - Output / Channel | 120 MA |
| Voltage - Supply Span (Min) | 4.5 V | Voltage - Supply Span (Max) | 16.5 V |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad | Supplier Device Package | 24-QFN (5x4) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| EL5227CLZ | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5224ILZ | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5223CL | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5223CL-T13 | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5223CL-T7 | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5224IL | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5224IL-T13 | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5224IL-T7 | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5224ILZ-T13 | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5224ILZ-T7 | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5227CL | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5227CL-T13 | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5227CL-T7 | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5227CLZ-T13 | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5227CLZ-T7 | IC BUFFER 8 CIRCUIT 24QFN | |
| EL5323CL | IC BUFFER 10 CIRCUIT 24QFN | |
| EL5323CL-T13 | IC BUFFER 10 CIRCUIT 24QFN | |
| EL5323CL-T7 | IC BUFFER 10 CIRCUIT 24QFN | |
| EL5327CL | IC BUFFER 10 CIRCUIT 24QFN | |
| EL5327CL-T13 | IC BUFFER 10 CIRCUIT 24QFN | |
| EL5327CL-T7 | IC BUFFER 10 CIRCUIT 24QFN |
Product Description
Product Details
The EL5127, EL5227, EL5327, and EL5427 are low power, high voltage rail-to-rail input/output buffers designed for use in reference voltage buffering applications in small LCD displays. They are available in quad (EL5127), octal (EL5227), 10-channel (EL5327), and 12-channel (EL5427) topologies. All buffers feature a -3dB bandwidth of 2.5MHz and operate from just 133µA per buffer. This family also features a continuous output drive capability of 30mA (sink and source).
Features
• 2.5MHz -3dB bandwidth• Supply voltage = 4.5V to 16.5V
• Low supply current (per buffer) = 133µA
• High slew rate = 2.2V/µs
• Rail-to-rail input/output swing
• Ultra-small packages
• Pb-free plus anneal available (RoHS compliant)
Applications
• TFT-LCD drive circuits• Electronic games
• Touch-screen displays
• Personal communication devices
• Personal digital assistants (PDAs)
• Portable instrumentation
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | Instrumentation Amplifier |
| Categories | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Intersil |
| Series | - |
| Packaging | Tube |
| Part-Status | Obsolete |
| Amplifier-Type | Buffer |
| Number-of-Circuits | 8 Circuits |
| Output-Type | Rail-to-Rail |
| Slew-Rate | 2.2 V/?s |
| -3db-Bandwidth | 2.5MHz |
| Current-Input-Bias | 2nA |
| Voltage-Input-Offset | 1mV |
| Current-Supply | 1.3mA |
| Current-Output-Channel | 120mA |
| Voltage-Supply-Single-Dual-± | 4.5 V ~ 16.5 V, ±2.25 V ~ 8.25 V |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Package-Case | 24-VFQFN Exposed Pad |
| Supplier-Device-Package | 24-QFN-EP |
| Base-Part-Number | EL5227 |
Descriptions
Buffer Amplifier 8 Circuit Rail-to-Rail 24-QFN-EP
