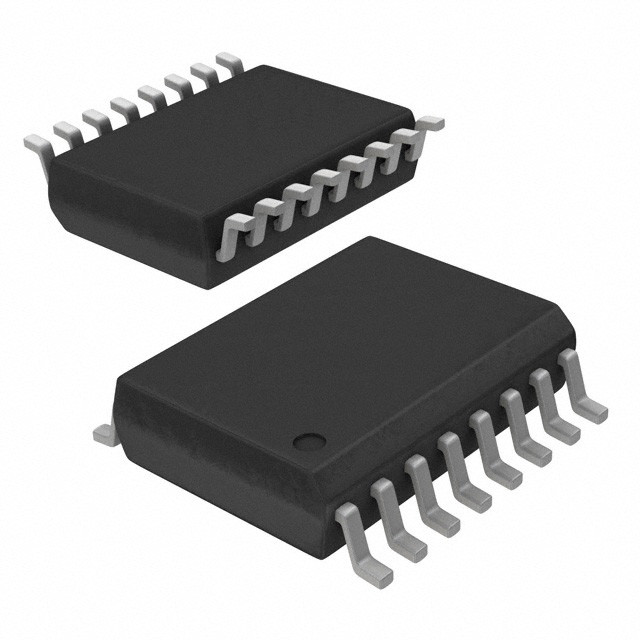

ICL7642BCWE+ IC OPAMP GP 4 CIRCUIT 16SOIC Analog Devices Inc./Maxim Integrated
| Brand Name | Analog Devices Inc./Maxim Integrated |
|---|---|
| Model Number | ICL7642BCWE+ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | CMOS | Number Of Circuits | 4 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 1.6V/µs |
| Gain Bandwidth Product | 1.4 MHz | -3db Bandwidth | - |
| Current - Input Bias | 1 PA | Voltage - Input Offset | 5 MV |
| Current - Supply | 1mA (x4 Channels) | Current - Output / Channel | - |
| Voltage - Supply Span (Min) | 2 V | Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | Supplier Device Package | 16-SOIC |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ICL7642BCWE+ | IC OPAMP GP 4 CIRCUIT 16SOIC | |
| ICL7641BCWE | IC CMOS 4 CIRCUIT 16SOIC | |
| ICL7641CCWE | IC CMOS 4 CIRCUIT 16SOIC | |
| ICL7641ECWE | IC CMOS 4 CIRCUIT 16SOIC | |
| ICL7642BCWE | IC CMOS 4 CIRCUIT 16SOIC | |
| ICL7642BEWE | IC CMOS 4 CIRCUIT 16SOIC | |
| ICL7642ECWE | IC CMOS 4 CIRCUIT 16SOIC | |
| ICL7652CWE | IC OPAMP ZERO-DRIFT 1CIRC 16SOIC | |
| MAX421EWE | IC OPAMP ZERO-DRIFT 1CIRC 16SOIC | |
| MAX423CWE | IC OPAMP ZER-DRIFT 1CIRC 16SOIC | |
| ICL7652CWE+ | IC OPAMP ZERO-DRIFT 1CIRC 16SOIC | |
| ICL7641BCWE+T | IC CMOS 4 CIRCUIT 16SOIC | |
| ICL7652CWE+T | IC OPAMP ZERO-DRIFT 1CIRC 16SOIC | |
| ICL7641ECWE+T | IC CMOS 4 CIRCUIT 16SOIC | |
| ICL7642BCWE+T | IC CMOS 4 CIRCUIT 16SOIC | |
| MAX421EWE+ | IC OPAMP ZER-DRIFT 1CIRC 16SOIC | |
| MAX421CWE+ | IC OPAMP ZER-DRIFT 1CIRC 16SOIC | |
| MAX421CWE+T | IC OPAMP ZER-DRIFT 1CIRC 16SOIC | |
| MAX421EWE+T | IC OPAMP ZER-DRIFT 1CIRC 16SOIC | |
| MAX44299UWE+T | IC CURR SENSE 1 CIRCUIT 16SOIC | |
| ICL7641ECWE+ | IC OPAMP GP 4 CIRCUIT 16SOIC | |
| ICL7641BCWE+ | IC OPAMP GP 4 CIRCUIT 16SOIC |
Product Description
Product Details
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Maxim Integrated |
| Product Category | Instrumentation Amplifier |
| Series | ICL7642B |
| Product | Operational Amplifiers |
| Packaging | Tube |
| Unit-Weight | 0.016709 oz |
| Mounting-Style | SMD/SMT |
| Technology | CMOS |
| Number-of-Channels | 4 Channel |
| Amplifier-Type | General Purpose |
| Shutdown | No Shutdown |
| Maximum Operating Temperature | + 70 C |
| Operating temperature range | 0 C |
| Operating-Supply-Current | 15 uA |
| Part-#-Aliases | ICL7642B |
| Supply-Voltage-Max | 16 V |
| Supply-Voltage-Min | 2 V |
| Package-Case | SOIC-Wide-16 |
| Ib-Input-Bias-Current | 50 pA |
| Vos-Input-Offset-Voltage | 5 mV |
| PSRR-Power-Supply-Rejection-Ratio | 70 dB |
| Output-Current-per-Channel | - |
| CMRR-Common-Mode-Rejection-Ratio | 60 dB |
| GBP-Gain-Bandwidth-Product | 44 kHz |
| SR-Slew-Rate | 0.016 V/us |
| en-Input-Voltage-Noise-Density | 100 nV/sqrt Hz |
| 3-dB-Bandwidth | - |
| Maximum-Dual-Supply-Voltage | +/- 8 V |
| Minimum-Dual-Supply-Voltage | +/- 1 V |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| ICL7642CCWE-T Amplifier Circuits |
Operational Amplifier, 4 Func, 12000uV Offset-Max, CMOS, PDSO16, LEAD FREE, SOP-16 | Maxim Integrated Products | ICL7642BCWE+ vs ICL7642CCWE-T |
| ICL7642BCWE-T Amplifier Circuits |
Operational Amplifier, 4 Func, 7000uV Offset-Max, CMOS, PDSO16, LEAD FREE, SOP-16 | Maxim Integrated Products | ICL7642BCWE+ vs ICL7642BCWE-T |
| ICL7642CCWE+ Amplifier Circuits |
Operational Amplifier, 4 Func, 15000uV Offset-Max, CMOS, PDSO16, 0.300 INCH, SO-16 | Maxim Integrated Products | ICL7642BCWE+ vs ICL7642CCWE+ |
| ICL7642CCWE+T Amplifier Circuits |
Operational Amplifier, 4 Func, 15000uV Offset-Max, CMOS, PDSO16, 0.300 INCH, SO-16 | Maxim Integrated Products | ICL7642BCWE+ vs ICL7642CCWE+T |
| ICL7642CCWE Amplifier Circuits |
Operational Amplifier, 4 Func, 12000uV Offset-Max, CMOS, PDSO16, LEAD FREE, SOP-16 | Maxim Integrated Products | ICL7642BCWE+ vs ICL7642CCWE |
| ICL7642ECWE Amplifier Circuits |
Operational Amplifier, 4 Func, 25000uV Offset-Max, CMOS, PDSO16, LEAD FREE, SOP-16 | Maxim Integrated Products | ICL7642BCWE+ vs ICL7642ECWE |
| ICL7642BCWE+T Amplifier Circuits |
Operational Amplifier, 4 Func, 7000uV Offset-Max, CMOS, PDSO16, 0.300 INCH, LEAD FREE, SOIC-16 | Maxim Integrated Products | ICL7642BCWE+ vs ICL7642BCWE+T |
| ICL7642ECWE+ Amplifier Circuits |
Operational Amplifier, 4 Func, 25000uV Offset-Max, CMOS, PDSO16, 0.300 INCH, SO-16 | Maxim Integrated Products | ICL7642BCWE+ vs ICL7642ECWE+ |
| ICL7642ECWE+T Amplifier Circuits |
Operational Amplifier, 4 Func, 25000uV Offset-Max, CMOS, PDSO16, 0.300 INCH, SO-16 | Maxim Integrated Products | ICL7642BCWE+ vs ICL7642ECWE+T |
| ICL7642ECWE-T Amplifier Circuits |
Operational Amplifier, 4 Func, 25000uV Offset-Max, CMOS, PDSO16, LEAD FREE, SOP-16 | Maxim Integrated Products | ICL7642BCWE+ vs ICL7642ECWE-T |
Descriptions
General Purpose Amplifier 4 Circuit Rail-to-Rail 16-SOIC
Operational Amplifiers - Op Amps Quad CMOS Low Power
