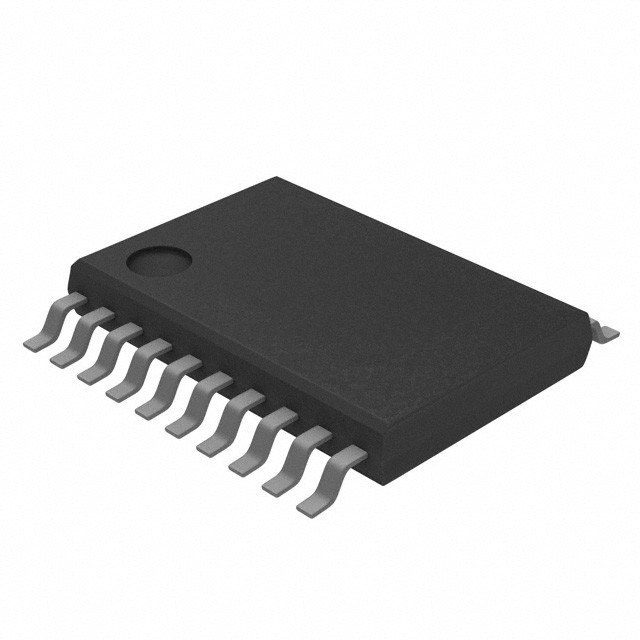

PGA116AIPWR IC OPAMP PGA 1 CIRCUIT 20TSSOP Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | PGA116AIPWR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | Programmable Gain | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 8V/µs |
| Gain Bandwidth Product | - | -3db Bandwidth | 10 MHz |
| Current - Input Bias | 1.5 NA | Voltage - Input Offset | 75 µV |
| Current - Supply | 330µA | Current - Output / Channel | 60 MA |
| Voltage - Supply Span (Min) | 2.2 V | Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | Supplier Device Package | 20-TSSOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| PGA116AIPWR | IC OPAMP PGA 1 CIRCUIT 20TSSOP | |
| INA253A1IPW | IC CURR SENSE 1 CIRCUIT 20TSSOP | |
| INA253A2IPW | IC CURR SENSE 1 CIRCUIT 20TSSOP | |
| INA253A3IPW | IC CURR SENSE 1 CIRCUIT 20TSSOP | |
| PGA117AIPW | IC OPAMP PGA 1 CIRCUIT 20TSSOP | |
| INA4181A2QPWRQ1 | IC CURR SENSE 1 CIRCUIT 20TSSOP | |
| INA4181A2IPWR | IC CURR SENSE 4 CIRCUIT 20TSSOP | |
| INA4181A1IPWR | IC CURR SENSE 4 CIRCUIT 20TSSOP | |
| PGA117AIPWR | IC OPAMP PGA 1 CIRCUIT 20TSSOP | |
| INA4181A3IPWR | IC CURR SENSE 4 CIRCUIT 20TSSOP | |
| INA4181A4IPWR | IC CURR SENSE 4 CIRCUIT 20TSSOP | |
| PGA116AIPW | IC OPAMP PGA 1 CIRCUIT 20TSSOP | |
| INA4181A1QPWRQ1 | IC CURR SENSE 1 CIRCUIT 20TSSOP | |
| INA4181A3QPWRQ1 | IC CURR SENSE 1 CIRCUIT 20TSSOP | |
| INA4181A4QPWRQ1 | IC CURR SENSE 1 CIRCUIT 20TSSOP | |
| INA253A1IPWR | IC CURR SENSE 1 CIRCUIT 20TSSOP | |
| INA253A3IPWR | IC CURR SENSE 1 CIRCUIT 20TSSOP | |
| INA253A2IPWR | IC CURR SENSE 1 CIRCUIT 20TSSOP | |
| INA253A1QPWRQ1 | IC CURR SENSE 1 CIRCUIT 20TSSOP | |
| INA253A3QPWRQ1 | IC CURR SENSE 1 CIRCUIT 20TSSOP | |
| INA253A2QPWRQ1 | IC CURR SENSE 1 CIRCUIT 20TSSOP | |
| PGA116AIPWG4 | IC OPAMP PGA 1 CIRCUIT 20TSSOP |
Product Description
Product Details
The Texas Instruments PGA116AIPWR Instrumentation Amplifier is an ideal solution for high performance, low-noise signal conditioning. It is a PGA (programmable gain amplifier) that offers 10 channels and high-resolution signal processing in a single component. With a maximum gain of 106.02 dB and low noise of 100 μV, this device provides a high signal-to-noise ratio and low distortion. It is offered in a TSSOP-20 surface mount package and is capable of operation over the temperature range of -40 °C to +125 °C. The PGA116AIPWR offers numerous features such as low power consumption, built-in open circuit detection, and high output impedance. This device is well suited for applications such as signal conditioning, industrial & medical instrumentation, and audio systems.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Instrumentation Amplifier |
| Series | PGA116 |
| Product | Special Purpose Amplifiers |
| Packaging | Reel |
| Unit-Weight | 0.002716 oz |
| Mounting-Style | SMD/SMT |
| Input-Type | Rail to Rail |
| Number-of-Channels | 10 Channel |
| Amplifier-Type | PGA |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 1 mA |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 2.2 V |
| Package-Case | TSSOP-20 |
| Ib-Input-Bias-Current | 5 nA |
| Vos-Input-Offset-Voltage | 100 uV |
| PSRR-Power-Supply-Rejection-Ratio | 106.02 dB |
| Vcm-Common-Mode-Voltage | GND + 0.1 V to AVdd - 0.1 V |
| SR-Slew-Rate | 3 V/us |
| en-Input-Voltage-Noise-Density | 13 nV/sqrt Hz |
| Gain-Error | 0.1 % |
| Gain-V-V | 1 V/V 2 V/V 4 V/V 8 V/V 16 V/V 32 V/V 64 V/V 128 V/V |
| Maximum-Input-Resistance | 10000 MOhms (Typ) |
Descriptions
Programmable Gain Amplifier 1 Circuit Rail-to-Rail 20-TSSOP
SP Amp Variable Gain Amp Single R-R I/O 5.5V 20-Pin TSSOP T/R
Special Purpose Amplifiers Zero-Drift Program Gain AMP/MUX
