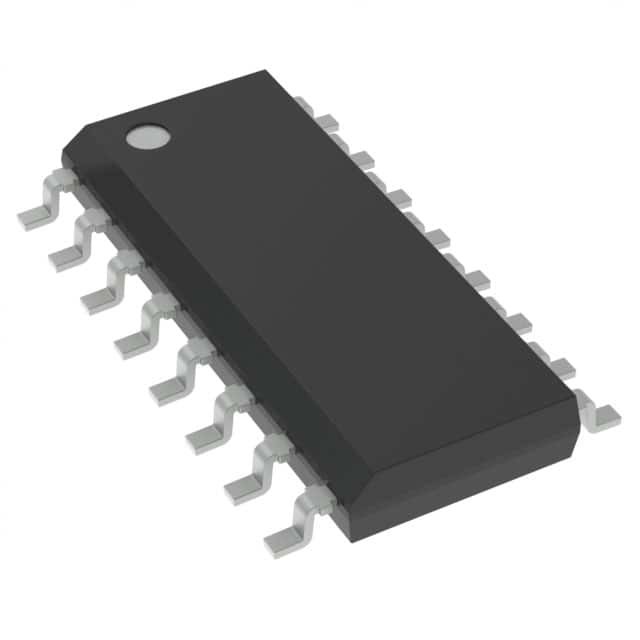

L272D013TR IC OPAMP GP 2 CIRCUIT 16SO STMicroelectronics
| Brand Name | STMicroelectronics |
|---|---|
| Model Number | L272D013TR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | General Purpose | Number Of Circuits | 2 |
|---|---|---|---|
| Output Type | - | Slew Rate | 1V/µs |
| Gain Bandwidth Product | 350 KHz | -3db Bandwidth | - |
| Current - Input Bias | 300 NA | Voltage - Input Offset | 15 MV |
| Current - Supply | 8mA | Current - Output / Channel | 1 A |
| Voltage - Supply Span (Min) | 4 V | Voltage - Supply Span (Max) | 28 V |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 16-SO |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| L272D013TR | IC OPAMP GP 2 CIRCUIT 16SO | |
| TSM104WIDT | IC OPAMP GP 4 CIRCUIT 16SO | |
| L272D | IC OPAMP GP 2 CIRCUIT 16SO | |
| TSM104AIDT | IC OPAMP GP 4 CIRCUIT 16SO | |
| TSM104AID | IC OPAMP GP 4 CIRCUIT 16SO | |
| TSM104WAIDT | IC OPAMP GP 4 CIRCUIT 16SO | |
| TSM104WAID | IC OPAMP GP 4 CIRCUIT 16SO | |
| TSM104WID | IC OPAMP GP 4 CIRCUIT 16SO | |
| TSH95ID | IC OPAMP GP 4 CIRCUIT 16SO | |
| TS925ID | IC OPAMP GP 4 CIRCUIT 16SO | |
| TSH94ID | IC OPAMP GP 4 CIRCUIT 16SO | |
| L2720D13TR | IC OPAMP GP 2 CIRCUIT 16SO | |
| TS925AID | IC OPAMP GP 4 CIRCUIT 16SO | |
| TSH95IDT | IC OPAMP GP 4 CIRCUIT 16SO | |
| TSM104ID | IC OPAMP GP 4 CIRCUIT 16SO | |
| TSH75CDT | IC OPAMP GP 4 CIRCUIT 16SO | |
| TSM104IDT | IC OPAMP GP 4 CIRCUIT 16SO | |
| L2720D | IC OPAMP GP 2 CIRCUIT 16SO | |
| TSH75CD | IC OPAMP GP 4 CIRCUIT 16SO | |
| TS925IDT | IC OPAMP GP 4 CIRCUIT 16SO | |
| TSH95IYDT | IC OPAMP GP 4 CIRCUIT 16SO | |
| TSH94IDT | IC OPAMP GP 4 CIRCUIT 16SO |
Product Description
Product Details
DESCRIPTION
The L272 is a monolithic integrated circuits in Powerdip, Minidip and SO packages intended for use as power operational amplifiers in a wide range of applications including servo amplifiers and power supplies, compacts disc, VCR, etc.The high gain and high output power capability provide superior performance whatever an operational amplifier/power booster combination is required.
■ OUTPUT CURRENT TO 1 A
■ OPERATES AT LOW VOLTAGES■ SINGLE OR SPLIT SUPPLY
■ LARGE COMMON-MODE AND DIFFERENTIAL MODE RANGE
■ GROUND COMPATIBLE INPUTS
■ LOW SATURATION VOLTAGE
■ THERMAL SHUTDOWN
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Instrumentation Amplifier |
| Series | L272 |
| Product | Operational Amplifiers |
| Packaging | Reel |
| Mounting-Style | SMD/SMT |
| Technology | Bipolar |
| Number-of-Channels | 2 Channel |
| Amplifier-Type | General Purpose Amplifier |
| Shutdown | Shutdown |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Supply-Voltage-Max | 28 V |
| Supply-Voltage-Min | 4 V |
| Package-Case | SO-Narrow-16 |
| Ib-Input-Bias-Current | 2.5 uA |
| Vos-Input-Offset-Voltage | 60 mV |
| PSRR-Power-Supply-Rejection-Ratio | 54 dB |
| CMRR-Common-Mode-Rejection-Ratio | 60 dB |
| GBP-Gain-Bandwidth-Product | 350 kHz |
| SR-Slew-Rate | 1 V/us |
| Maximum-Dual-Supply-Voltage | +/- 14 V |
| Minimum-Dual-Supply-Voltage | +/- 2 V |
Descriptions
General Purpose Amplifier 2 Circuit 16-SO
Op Amp Dual GP 卤14V/28V 16-Pin SO N T/R
Operational Amplifiers - Op Amps DUAL Pwr Op Amp
