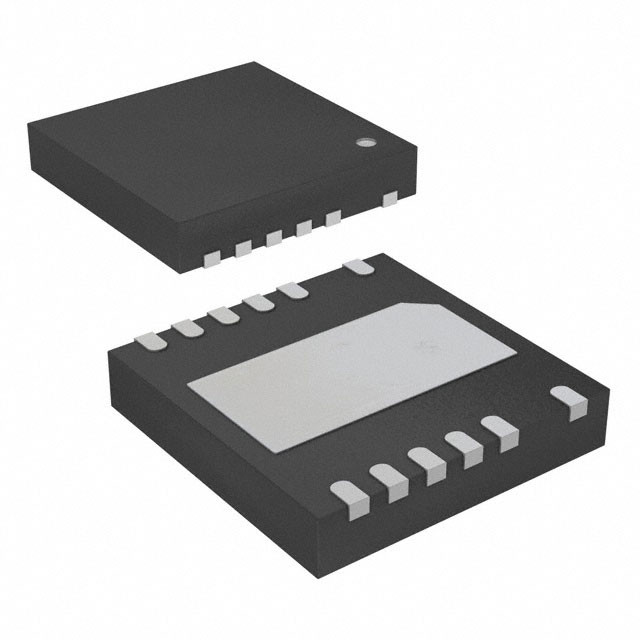

LT6375HDF#PBF IC OPAMP DIFF 1 CIRCUIT 14DFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | LT6375HDF#PBF |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | Differential | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 2.4V/µs |
| Gain Bandwidth Product | - | -3db Bandwidth | 575 KHz |
| Current - Input Bias | - | Voltage - Input Offset | 120 µV |
| Current - Supply | 350µA | Current - Output / Channel | 28 MA |
| Voltage - Supply Span (Min) | 3 V | Voltage - Supply Span (Max) | 50 V |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad, 12 Leads | Supplier Device Package | 14-DFN (4x4) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LT6375HDF#PBF | IC OPAMP DIFF 1 CIRCUIT 14DFN | |
| LT6375AHDF#PBF | IC OPAMP DIFF 1 CIRCUIT 14DFN | |
| LT1997IDF-1#PBF | IC CURRENT SENSE 1 CIRCUIT 14DFN | |
| LT6375IDF#PBF | IC OPAMP DIFF 1 CIRCUIT 14DFN | |
| LT6376IDF#PBF | IC OPAMP GP 1 CIRCUIT 14DFN | |
| LT1997IDF-2#PBF | IC OPAMP GP 1 CIRCUIT 14DFN | |
| LT1997HDF-2#PBF | IC OPAMP GP 1 CIRCUIT 14DFN | |
| LT1997IDF-3#PBF | IC OPAMP GP 1 CIRCUIT 14DFN | |
| LT1997HDF-3#PBF | IC OPAMP GP 1 CIRCUIT 14DFN | |
| LT6375IDF#TRPBF | IC OPAMP DIFF 1 CIRCUIT 14DFN | |
| LT6376IDF#TRPBF | IC OPAMP GP 1 CIRCUIT 14DFN | |
| LT1997IDF-3#TRPBF | IC OPAMP GP 1 CIRCUIT 14DFN | |
| LT1997IDF-2#TRPBF | IC OPAMP GP 1 CIRCUIT 14DFN | |
| LT1997IDF-1#TRPBF | IC CURRENT SENSE 1 CIRCUIT 14DFN | |
| LT6375HDF#TRPBF | IC OPAMP DIFF 1 CIRCUIT 14DFN | |
| LT6376HDF#TRPBF | IC OPAMP GP 1 CIRCUIT 14DFN | |
| LT1997HDF-3#TRPBF | IC OPAMP GP 1 CIRCUIT 14DFN | |
| LT1997HDF-2#TRPBF | IC OPAMP GP 1 CIRCUIT 14DFN | |
| LT1997HDF-1#TRPBF | IC CURRENT SENSE 1 CIRCUIT 14DFN | |
| LT6375AHDF#TRPBF | IC OPAMP DIFF 1 CIRCUIT 14DFN | |
| LT6376HDF#PBF | IC OPAMP GP 1 CIRCUIT 14DFN | |
| LT1997HDF-1#PBF | IC CURRENT SENSE 1 CIRCUIT 14DFN |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Instrumentation Amplifier |
| Series | - |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Rail-to-Rail |
| Supplier-Device-Package | 14-DFN (4x4) |
| Number-of-Circuits | 1 Circuit |
| Current-Supply | 350µA |
| -3db-Bandwidth | 575 kHz |
| Slew-Rate | 2．4V/µs |
| Amplifier-Type | Differential |
| Package-Case | 14-WFDFN Exposed Pad 12 Leads |
| Package | Tube |
| Manufacturer | Analog Devices |
| Voltage-Supply-Span-Min | 3 V |
| Voltage-Supply-Span-Max | 50 V |
| Product-Status | Active |
| Base-Product-Number | LT6375 |
| Current-Output-Channel | 28 mA |
| Voltage-Input-Offset | 120 µV |
Descriptions
General Purpose Amplifier 1 Circuit Rail-to-Rail 14-DFN (4x4)
LT6375 - 卤270V Common Mode Voltage Difference Amplifier
