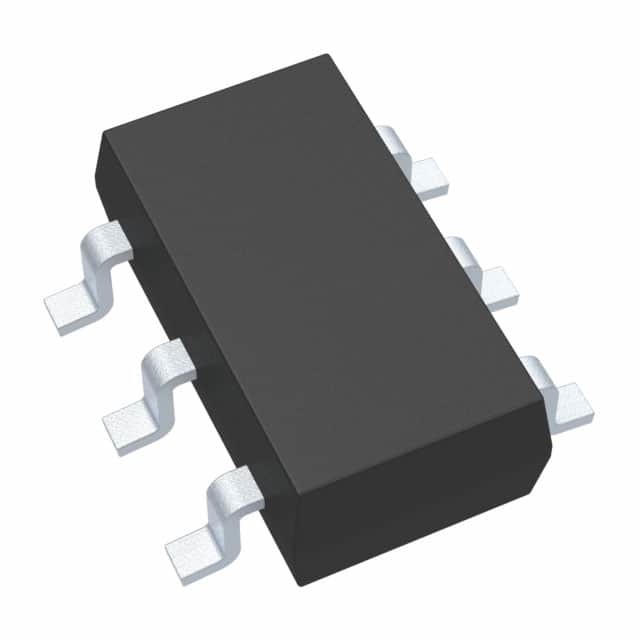

MCP6273T-E/CH IC OPAMP GP 1 CIRCUIT SOT23-6 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | MCP6273T-E/CH |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | General Purpose | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 0.9V/µs |
| Gain Bandwidth Product | 2 MHz | -3db Bandwidth | - |
| Current - Input Bias | 1 PA | Voltage - Input Offset | 3 MV |
| Current - Supply | 170µA | Current - Output / Channel | 25 MA |
| Voltage - Supply Span (Min) | 2 V | Voltage - Supply Span (Max) | 6 V |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 | Supplier Device Package | SOT-23-6 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MCP6273T-E/CH | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| MCP603T-I/CH | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| MCP6283T-E/CH | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| MCP6C04T-020E/CHY | IC CURR SENSE 1 CIRCUIT SOT23-6 | |
| MCP6C02T-050E/CHY | IC CURR SENSE 1 CIRCUIT SOT23-6 | |
| MCP6043T-E/CH | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| MCP653T-E/CHY | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| MCP6C04T-100E/CHY | IC CURR SENSE 1 CIRCUIT SOT23-6 | |
| MCP623T-E/CHY | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| MCP6C02T-100E/CHY | IC CURR SENSE 1 CIRCUIT SOT23-6 | |
| MCP6293T-E/CH | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| MCP6C04T-050E/CHY | IC CURR SENSE 1 CIRCUIT SOT23-6 | |
| MCP603T-E/CH | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| MCP6043T-I/CH | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| MCP6C02T-020E/CHY | IC CURR SENSE 1 CIRCUIT SOT23-6 | |
| MCP6143T-E/CH | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| MCP633T-E/CHY | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| MCP663T-E/CHY | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| TC1035ECHTR | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| MCP6563T-E/CH | IC COMP PUSH-PULL 1.8V SOT23-6 | |
| MCP6C02T-100E/CHYVAO | IC CURR SENSE 1 CIRCUIT SOT23-6 | |
| MCP6C02T-020E/CHYVAO | IC CURR SENSE 1 CIRCUIT SOT23-6 | |
| MCP6C02T-050E/CHYVAO | IC CURR SENSE 1 CIRCUIT SOT23-6 |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Instrumentation Amplifier |
| Series | MCP6273 |
| Product | Operational Amplifiers |
| Packaging | Reel |
| Unit-Weight | 0.001270 oz |
| Mounting-Style | SMD/SMT |
| Technology | CMOS |
| Number-of-Channels | 1 Channel |
| Amplifier-Type | Operational Amplifiers |
| Shutdown | No Shutdown |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 170 uA |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 2 V |
| Package-Case | SOT-23-6 |
| Ib-Input-Bias-Current | 5 nA |
| Vos-Input-Offset-Voltage | 5 mV |
| PSRR-Power-Supply-Rejection-Ratio | 90 dB |
| Output-Current-per-Channel | 25 mA |
| CMRR-Common-Mode-Rejection-Ratio | 70 dB |
| GBP-Gain-Bandwidth-Product | 2 MHz |
| SR-Slew-Rate | 0.9 V/us |
| en-Input-Voltage-Noise-Density | 20 nV/sqrt Hz |
| In-Input-Noise-Current-Density | 0.003 pA/sqrt Hz |
Descriptions
General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-6
Op Amp Single GP R-R I/O 5.5V Automotive 6-Pin SOT-23 T/R
Operational Amplifiers - Op Amps Single 2 MHz OP w/ CS E temp
