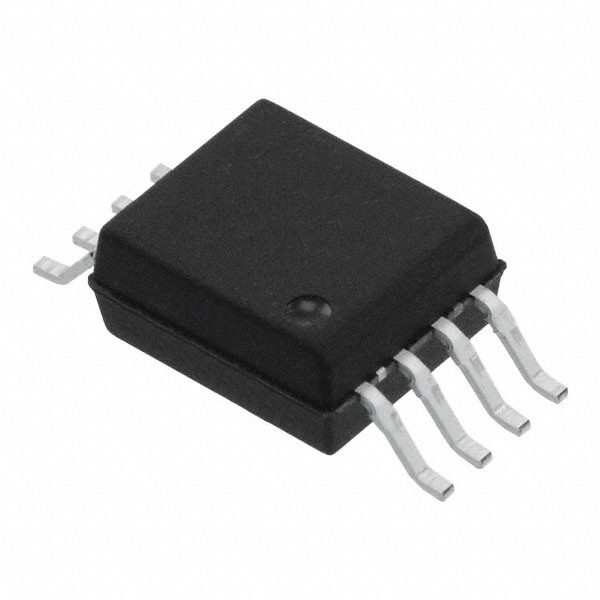

ACPL-C79A-500E IC OPAMP ISOLATION 1 CIRC 8SO Broadcom Limited



Description

The ACPL-C79B/C79A/C790 isolation amplifiers are designed for current and voltage sensing in electronic power converters in applications including motor drives and renewable energy systems. In a typical motor drive implementation, current flows through an external resistor and the resulting analog voltage drop is sensed by the isolation amplifier. A differential output voltage that is proportional to the current is created on the other side of the optical isolation barrier.





Features

• ±0.5% High Gain Accuracy (ACPL-C79B)
• –50 ppm/°C Low Gain Drift
• 0.4 mV Input Offset Voltage
• 0.05% Excellent Linearity
• 62 dB SNR
• 200 kHz Wide Bandwidth
• 3 V to 5.5 V Wide Supply Range for Output Side
• –40°C to +105°C Operating Temperature Range
• Advanced Sigma-Delta (∑-∆) A/D Converter Technology
• Fully Differential Isolation Amplifier
• 15 kV/µs Common-Mode Transient Immunity
• Compact, Auto-Insertable Stretched SO-8 Package
• Safety and Regulatory Approvals:
– IEC/EN/DIN EN 60747-5-5: 1414 Vpeak working insulation voltage
– UL 1577: 5000 Vrms/1min double protection rating
– CSA: Component Acceptance Notice #5





Applications

• Current/Voltage Sensing in AC and Servo Motor Drives
• Solar Inverters, Wind Turbine Inverters
• Industrial Process Control
• Data acquisition systems
• Switching Power Supply Signal Isolation
• General Purpose Analog Signal Isolation
• Traditional Current Transducer Replacements
