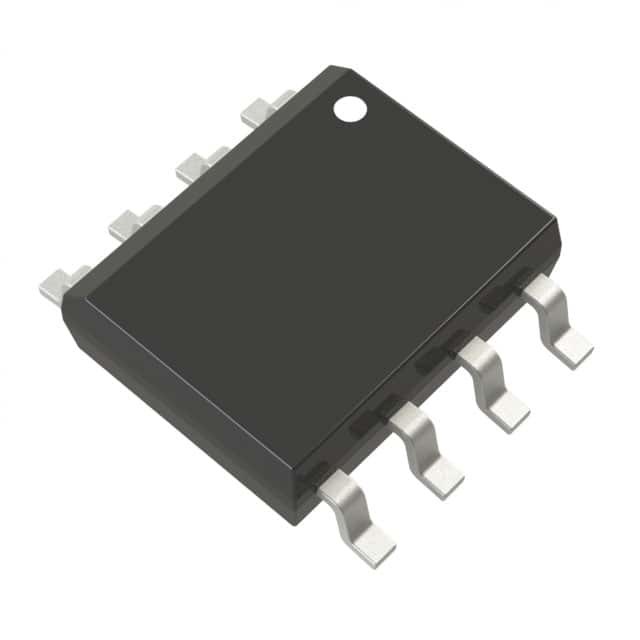

LTC6090CS8E-5#PBF IC OPAMP GP 1 CIRCUIT 8SOIC Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | LTC6090CS8E-5#PBF |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | General Purpose | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 37V/µs |
| Gain Bandwidth Product | 24 MHz | -3db Bandwidth | - |
| Current - Input Bias | 3 PA | Voltage - Input Offset | 330 µV |
| Current - Supply | 2.8mA | Current - Output / Channel | 90 MA |
| Voltage - Supply Span (Min) | 9.5 V | Voltage - Supply Span (Max) | 140 V |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Supplier Device Package | 8-SOIC-EP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LTC6090CS8E-5#PBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LTC6090HS8E-5#PBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LTC6090IS8E#PBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LTC2058IS8E#PBF | IC OPAMP ZERO-DRIFT 2 CIRC 8SOIC | |
| LTC6090IS8E-5#PBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LTC6090CS8E#TRPBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LTC6090HS8E#TRPBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LT6018IS8E#PBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LTC2058HS8E#PBF | IC OPAMP ZERO-DRIFT 2 CIRC 8SOIC | |
| LTC6090IS8E#TRPBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LTC6090CS8E#PBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LT6018HS8E#PBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LT6370IS8E#TRPBF | IC INST AMP 1 CIRCUIT 8SOIC | |
| LT6370HS8E#TRPBF | IC INST AMP 1 CIRCUIT 8SOIC | |
| LT6370IS8E#PBF | IC INST AMP 1 CIRCUIT 8SOIC | |
| LT6370HS8E#PBF | IC INST AMP 1 CIRCUIT 8SOIC | |
| LT6370AIS8E#PBF | IC INST AMP 1 CIRCUIT 8SOIC | |
| LTC6090HS8E#PBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LT6370AHS8E#PBF | IC INST AMP 1 CIRCUIT 8SOIC | |
| LTC2058IS8E#TRPBF | IC OPAMP ZERO-DRIFT 2 CIRC 8SOIC | |
| LTC2058HS8E#TRPBF | IC OPAMP ZERO-DRIFT 2 CIRC 8SOIC | |
| LT6018IS8E#TRPBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LTC6090CS8E-5#TRPBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LT6370AIS8E#TRPBF | IC INST AMP 1 CIRCUIT 8SOIC | |
| LT6018HS8E#TRPBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LTC6090IS8E-5#TRPBF | IC OPAMP GP 1 CIRCUIT 8SOIC | |
| LT6370AHS8E#TRPBF | IC INST AMP 1 CIRCUIT 8SOIC | |
| LTC6090HS8E-5#TRPBF | IC OPAMP GP 1 CIRCUIT 8SOIC |
Product Description
Product Details
Descripion
The LTC® 6090 is a high voltage precision operational amplifier. The low noise, low bias current input stage is ideal for high gain configurations. The LTC6090 has low input offset voltage, a rail-to-rail output stage, and can be run from a single 140V or split ±70V supplies.
Features
Supply Range: ±4.75V to ±70V (140V)0.1Hz to 10Hz Noise: 3.5μVP-P
Input Bias Current: 50pA
Low Offset Voltage: 1.6mV Maximum
Rail-to-Rail Output Stage
Output Sink and Source 10mA
10MHz Gain Bandwidth Product
19V/µs Slew Rate
11nV/√HzNoise Density
Thermal Shutdown
Available in Thermally Enhanced SOIC-8E or TSSOP-16E Packages
applications
ATEPiezo Drivers
Photodiode Amplifier
High Voltage Regulators
Optical Networking
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Linear Technology |
| Product Category | Instrumentation Amplifier |
| Categories | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Linear Technology |
| Series | - |
| Packaging | Tube |
| Part-Status | Active |
| Amplifier-Type | General Purpose |
| Number-of-Circuits | 1 Circuit |
| Output-Type | Rail-to-Rail |
| Slew-Rate | 37 V/?s |
| Gain-Bandwidth-Product | 24MHz |
| Current-Input-Bias | 3pA |
| Voltage-Input-Offset | 330?V |
| Current-Supply | 2.8mA |
| Current-Output-Channel | 90mA |
| Voltage-Supply-Single-Dual-± | 9.5 V ~ 140 V, ±4.75 V ~ 70V |
| Operating-Temperature | 0°C ~ 70°C |
| Mounting-Type | Surface Mount |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier-Device-Package | 8-SOIC-EP |
| Base-Part-Number | LTC6090-5 |
Descriptions
General Purpose Amplifier 1 Circuit Rail-to-Rail 8-SOIC-EP
LTC6090/LTC6090-5 - 140V CMOS Rail-to-Rail Output, Picoamp Input Current Op Amp
