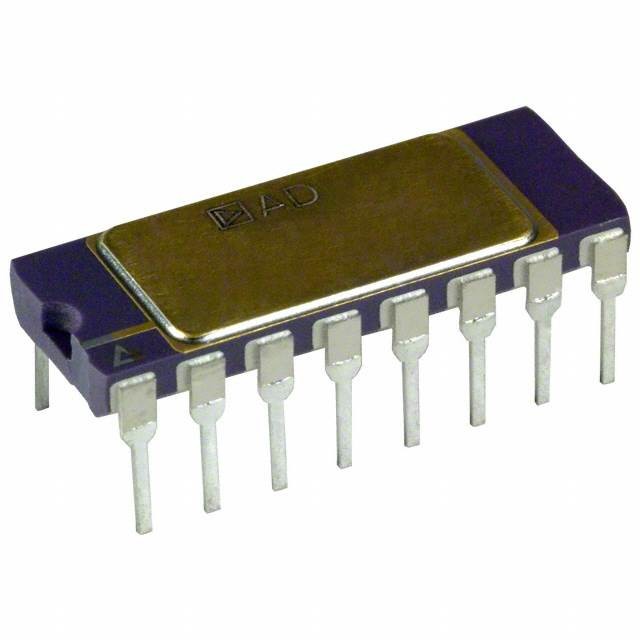

AD524ADZ Precision Monolithic Instrumentation Amplifier IC 1 CIRCUIT 16CDIP
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | AD524ADZ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | Instrumentation | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | - | Slew Rate | 5V/µs |
| Gain Bandwidth Product | 1 MHz | -3db Bandwidth | 1 MHz |
| Current - Input Bias | 50 NA | Voltage - Input Offset | 250 µV |
| Current - Supply | 3.5mA | Current - Output / Channel | - |
| Voltage - Supply Span (Min) | 12 V | Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -25°C ~ 85°C | Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | Supplier Device Package | 16-CDIP |
| Highlight | AD524ADZ Instrumentation Amplifier IC,Monolithic Instrumentation Amplifier IC |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AD524ADZ | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD526ADZ | IC OPAMP PGA 1 CIRCUIT 16CDIP | |
| AD624ADZ | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD524BDZ | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD625ADZ | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD526BDZ | IC OPAMP PGA 1 CIRCUIT 16CDIP | |
| AD625BDZ | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD526BD | IC OPAMP PGA 1 CIRCUIT 16CDIP | |
| AD524BD | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD524AD | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD624BD | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD524CD | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD524SD | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD526AD | IC OPAMP PGA 1 CIRCUIT 16CDIP | |
| AD526CD | IC OPAMP PGA 1 CIRCUIT 16CDIP | |
| AD526SD | IC OPAMP PGA 1 CIRCUIT 16CDIP | |
| AD624CD | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD624SD | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD625AD | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD625BD | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD625BD/+ | IC AMP INST 25MHZ LN 16CDIP | |
| AD625CD | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD625SD | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD624BDZ | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD624CDZ | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD526CDZ | IC OPAMP PGA 1 CIRCUIT 16CDIP | |
| AD625CDZ | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD524CDZ | IC INST AMP 1 CIRCUIT 16CDIP | |
| 5962-8771901EA | IC INST AMP 1 CIRCUIT 16CDIP | |
| 5962-8853901EA | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD524SD/883B | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD624SD/883B | IC INST AMP 1 CIRCUIT 16CDIP | |
| AD625SD/883B | IC INST AMP 1 CIRCUIT 16CERDIP |
Product Description
Product Details
GENERAL DESCRIPTION
The AD524 is a precision monolithic instrumentation amplifier designed for data acquisition applications requiring high accuracy under worst-case operating conditions. An outstanding combination of high linearity, high common-mode rejection, low offset voltage drift, and low noise makes the AD524 suitable for use in many data acquisition systems.
FEATURES
Low noise: 0.3 μV p-p at 0.1 Hz to 10 HzLow nonlinearity: 0.003% (G = 1)
High CMRR: 120 dB (G = 1000)
Low offset voltage: 50 μV
Low offset voltage drift: 0.5 μV/°C
Gain bandwidth product: 25 MHz
Pin programmable gains of 1, 10, 100, 1000
Input protection, power-on/power-off
No external components required
Internally compensated
MIL-STD-883B and chips available
16-lead ceramic DIP and SOIC packages and 20-terminal leadless chip carrier available
Available in tape and reel in accordance with EIA-481A standard
Standard military drawing also available
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Instrumentation Amplifier |
| Series | AD524 |
| Product | Instrumentation Amplifiers |
| Packaging | Tube |
| Mounting-Style | Through Hole |
| Number-of-Channels | 1 Channel |
| Amplifier-Type | Instrumentation Amplifier |
| Pd-Power-Dissipation | 450 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 3.5 mA |
| Package-Case | CDIP-16 SB |
| Ib-Input-Bias-Current | 25 nA |
| Vos-Input-Offset-Voltage | 250 uV |
| Vcm-Common-Mode-Voltage | 10 V |
| CMRR-Common-Mode-Rejection-Ratio | 90 dB |
| GBP-Gain-Bandwidth-Product | 25 MHz |
| SR-Slew-Rate | 5 V/us |
| Gain-V-V | 1 V/V to 1000 V/V |
| 3-dB-Bandwidth | 1 MHz |
| Maximum-Input-Resistance | 1000 MOhms |
Descriptions
Instrumentation Amplifier 1 Circuit 16-CDIP Side Brazed
INST Amp Single 卤18V 16-Pin SBCDIP Tube
Instrumentation Amplifiers IC PREC
