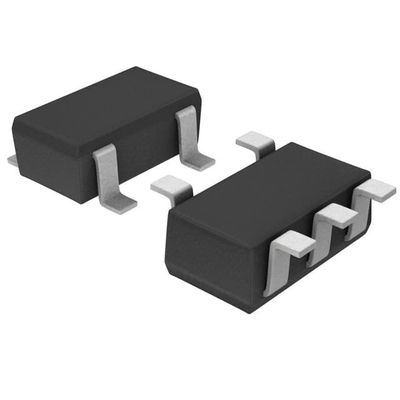

BU7411SG-TR General Purpose Amplifier IC Chip GP 1 CIRCUIT 5SSOP Rohm Semiconductor



● Description

Ultra Low Power CMOS Op-Amp BU7265/BU7205/BU7271/BU7245 family (Input-Output Full Swing) and BU7411 / BU7421 / BU7475 (ground sense) are monolithic IC. Supply current is very small (BU7265/BU7411 family: 0.35[μA], BU7421 family: 8.5[μA], BU7271 family: 8.6[μA]), and VDD range is +1.6[V] ~ +5.5[V] (BU7411 family: single supply), so operable with low voltage. It’s suitable for applications of portable equipments and battery movements.





● Features

1) Ultra Low Power
0.35[μA]
: BU7265 family
: BU7411 family
8.5[μA] : BU7421 family
8.6[μA] : BU7271 family
2) High large signal voltage gain
3) Wide temperature range
-40[℃ ] ~ +85[℃ ]
(BU7265G,BU7271G,BU7411G,BU7421G)
(BU7205HFV,BU7245HFV,BU7475HFV)
-40[℃ ] ~ +105[℃ ]
(BU7265SG,BU7271SG,BU7411SG,BU7421SG)
(BU7205SHFV,BU7245SHFV,BU7475SHFV)
4) Low input bias current 1[pA] (Typ.)
5) Internal ESD protection
Human body model (HBM) ±4000 [V] (Typ.)
6) Internal phase compensation
7) Low operating supply voltage
+1.8[V] ~ +5.5[V] (single supply)
(BU7265 family, BU7271 family)
(BU7205 family, BU7245 family)
+1.7[V] ~ +5.5[V] (single supply)
(BU7421 family, BU7475 family)
+1.6[V] ~ +5.5[V] (single supply)
(BU7411 family)
