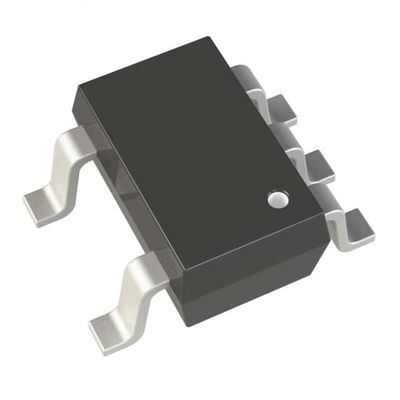

AD8613AUJZ-REEL7 Amplifier IC Chip GP 1 CIRCUIT TSOT23-5 Analog Devices Inc
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | AD8613AUJZ-REEL7 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | General Purpose | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 0.1V/µs |
| Gain Bandwidth Product | 400 KHz | -3db Bandwidth | - |
| Current - Input Bias | 0.2 PA | Voltage - Input Offset | 400 µV |
| Current - Supply | 38µA | Current - Output / Channel | 80 MA |
| Voltage - Supply Span (Min) | 1.8 V | Voltage - Supply Span (Max) | 5 V |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | Supplier Device Package | TSOT-23-5 |
| Highlight | AD8613AUJZ-REEL7,AD8613AUJZ-REEL7 Amplifier IC Chip |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AD8613AUJZ-REEL7 | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8691AUJZ-REEL7 | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8538AUJZ-REEL7 | IC OPAMP ZERO-DRIFT 1 CIRC TSOT5 | |
| AD8603AUJZ-REEL | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8615AUJZ-REEL7 | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8628AUJZ-REEL7 | IC OPAMP ZERO-DRIFT 1 CIRC TSOT5 | |
| AD8603AUJZ-R2 | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8691WAUJZ-R7 | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8538WAUJZ-R7 | IC OPAMP ZER-DRIFT 1CIR TSOT23-5 | |
| AD8603AUJZ-REEL7 | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8677AUJZ-REEL7 | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8615AUJZ-REEL | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8628AUJZ-REEL | IC OPAMP ZERO-DRIFT 1 CIRC TSOT5 | |
| AD8628WAUJZ-R7 | IC OPAMP ZERO-DRIFT 1 CIRC TSOT5 | |
| AD8615AUJZ-R2 | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| ADA4000-1AUJZ-R7 | IC OPAMP JFET 1 CIRCUIT TSOT23-5 | |
| AD8691WAUJZ-RL | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| ADA4000-1AUJZ-RL | IC OPAMP JFET 1 CIRCUIT TSOT23-5 | |
| AD8628WAUJZ-RL | IC OPAMP ZERO-DRIFT 1 CIRC TSOT5 | |
| AD8603AUJ-R2 | IC OPAMP GP R-R CMOS TSOT23-5 | |
| AD8603AUJ-REEL | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8603AUJ-REEL7 | IC OPAMP GP R-R CMOS TSOT23-5 | |
| AD8628AUJ-R2 | IC OPAMP CHOPPER R-R TSOT23-5 | |
| AD8628AUJ-REEL | IC OPAMP ZERO-DRIFT 1 CIRC TSOT5 | |
| AD8691AUJZ-REEL | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8613AUJZ-REEL | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8538AUJZ-REEL | IC OPAMP ZERO-DRIFT 1 CIRC TSOT5 | |
| AD8677AUJZ-REEL | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8613AUJZ-R2 | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8691AUJZ-R2 | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| AD8677AUJZ-R2 | IC OPAMP GP 1 CIRCUIT TSOT23-5 | |
| ADA4000-1AUJZ-R2 | IC OPAMP JFET 1 CIRCUIT TSOT23-5 | |
| AD8628AUJZ-R2 | IC OPAMP ZERO-DRIFT 1 CIRC TSOT5 | |
| AD8628AUJ-REEL7 | IC OPAMP ZERO-DRIFT 1 CIRC TSOT5 | |
| AD8538AUJZ-R2 | IC OPAMP ZERO-DRIFT 1 CIRC TSOT5 |
Product Description
Product Details
GENERAL DESCRIPTION
The AD8613/AD8617/AD8619 are single, dual, and quad micropower, rail-to-rail input and output amplifiers that feature low supply current, low input voltage, and low current noise. The parts are fully specified to operate from 1.8 V to 5.0 V single supply, or ±0.9 V and ±2.5 V dual supply. The combination of low noise, very low input bias currents, and low power consumption make the AD8613/AD8617/AD8619 especiallyuseful in portable and loop-powered instrumentation.
FEATURES
Offset voltage: 2.2 mV maxLow input bias current: 1 pA max
Single-supply operation: 1.8 V to 5 V
Low noise: 22 nV/√Hz
Micropower: 38 μA
No phase reversal
Unity gain stable
APPLICATIONS
Battery-powered instrumentationMultipole filters
Current shunt sense
Sensors
ADC predrivers
DAC drivers/level shifters
Low power ASIC input or output amplifiers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Instrumentation Amplifier |
| Series | AD8613 |
| Product | Precision Amplifiers |
| Packaging | Reel |
| Mounting-Style | SMD/SMT |
| Output-Type | Rail to Rail Input/Output |
| Number-of-Channels | 1 Channel |
| Shutdown | No Shutdown |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 38 uA |
| Supply-Voltage-Max | 5 V |
| Supply-Voltage-Min | 1.8 V |
| Package-Case | TSOT-5 |
| Ib-Input-Bias-Current | 1 pA |
| Vos-Input-Offset-Voltage | 400 uV |
| PSRR-Power-Supply-Rejection-Ratio | 94 dB |
| CMRR-Common-Mode-Rejection-Ratio | 95 dB |
| GBP-Gain-Bandwidth-Product | 400 kHz |
| SR-Slew-Rate | 0.1 V/us at 5 V |
| en-Input-Voltage-Noise-Density | 25 nV/sqrt Hz at 5 V |
| Voltage-Gain-dB | 113.98 dB |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| AD8613AUJZ-REEL Amplifier Circuits |
Micropower, Low Noise, Low Cost CMOS RRIO Single Op Amp | Analog Devices Inc | AD8613AUJZ-REEL7 vs AD8613AUJZ-REEL |
| MCP6061T-E/OT Amplifier Circuits |
OP-AMP, 150 uV OFFSET-MAX, 0.73 MHz BAND WIDTH, PDSO5, PLASTIC, SOT-23, 5 PIN | Microchip Technology Inc | AD8613AUJZ-REEL7 vs MCP6061T-E/OT |
| AD8613AUJZ-R2 Amplifier Circuits |
OP-AMP, 2200 uV OFFSET-MAX, 0.35 MHz BAND WIDTH, PDSO5, ROHS COMPLIANT, MO-193AB, TSOT-23, 5 PIN | Rochester Electronics LLC | AD8613AUJZ-REEL7 vs AD8613AUJZ-R2 |
Descriptions
OP Amp Single GP R-R I/O 卤2.5V/5V 5-Pin TSOT T/R
Precision Amplifiers Micropwr Low Noise CMOS RRIO SGL
