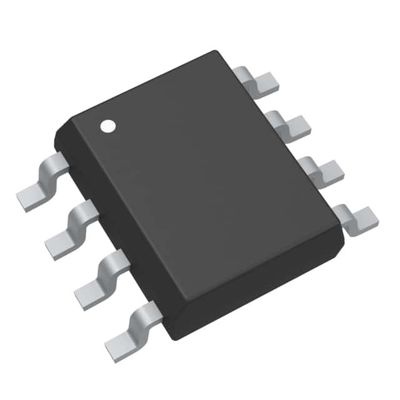

TLV272CS-13 CMOS Amplifier IC 2 CIRCUIT 8SO Diodes Incorporated
| Brand Name | Diodes Incorporated |
|---|---|
| Model Number | TLV272CS-13 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | CMOS | Number Of Circuits | 2 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 2V/µs |
| Gain Bandwidth Product | 1.9 MHz | -3db Bandwidth | - |
| Current - Input Bias | 1 PA | Voltage - Input Offset | 500 µV |
| Current - Supply | 550µA (x2 Channels) | Current - Output / Channel | 8 MA |
| Voltage - Supply Span (Min) | 2.7 V | Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-SO |
| Highlight | TLV272CS-13,TLV272CS-13 CMOS Amplifier IC |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| TLV272CS-13 | IC CMOS 2 CIRCUIT 8SO | |
| AS2333S-13 | IC OPAMP ZER-DRIFT 1CIRC | |
| LM358S-13 | IC OPAMP GP 2 CIRCUIT 8SO | |
| LM2904QS-13 | IC OPAMP GP 2 CIRCUIT 8SO | |
| LM2904AQS-13 | IC OPAMP GP 2 CIRCUIT 8SO | |
| LMV358SG-13 | IC OPAMP GP 2 CIRCUIT 8SO | |
| TLV272IS-13 | IC CMOS 2 CIRCUIT 8SO | |
| AP4310AMTR-G1 | IC OPAMP GP 2 CIRCUIT 8SO | |
| TLC27L1IS-13 | IC CMOS 1 CIRCUIT 8SO | |
| LM2904S-13 | IC OPAMP GP 2 CIRCUIT 8SO | |
| TLV271CS-13 | IC CMOS 1 CIRCUIT 8SO | |
| TLC271ACS-13 | IC CMOS 1 CIRCUIT 8SO | |
| TLC27L1BIS-13 | IC CMOS 1 CIRCUIT 8SO | |
| AS2376QS-13 | OPAMP GENERAL PURPOSE SO-8 T&R 2 | |
| AS2333QS-13 | OPAMPGENERALPURPOSESO-8T&R2.5K | |
| TLC271BCS-13 | IC CMOS 1 CIRCUIT 8SO | |
| AP4310AMTR-AG1 | IC OPAMP GP 2 CIRCUIT 8SO | |
| TLC271IS-13 | IC CMOS 1 CIRCUIT 8SO | |
| LM2904AS-13 | IC OPAMP GP 2 CIRCUIT 8SO | |
| AP4310AUMTR-AG1 | IC OPAMP GP 2 CIRCUIT 8SO | |
| TLV271IS-13 | IC CMOS 1 CIRCUIT 8SO | |
| TLC27L1BCS-13 | IC CMOS 1 CIRCUIT 8SO | |
| TLC271CS-13 | IC CMOS 1 CIRCUIT 8SO | |
| TLC271AIS-13 | IC CMOS 1 CIRCUIT 8SO | |
| TLC27L1AIS-13 | IC CMOS 1 CIRCUIT 8SO | |
| TLC27L1ACS-13 | IC CMOS 1 CIRCUIT 8SO | |
| TLC27L1CS-13 | IC CMOS 1 CIRCUIT 8SO | |
| TLC271BIS-13 | IC CMOS 1 CIRCUIT 8SO | |
| TL072SG-13 | IC OPAMP JFET 2 CIRCUIT 8SO | |
| TL082SG-13 | IC OPAMP JFET 2 CIRCUIT 8SO | |
| APX4558S-13 | IC OPAMP GP 2 CIRCUIT 8SO | |
| APX4558IS-13 | IC OPAMP GP 2 CIRCUIT 8SO | |
| AP4310AMTR-AE1 | IC OPAMP GP 2 CIRCUIT 8SO | |
| AP4310AUMTR-E1 | IC OPAMP GP 2 CIRCUIT 8SO | |
| AP4310EMTR-G1 | AMP |
Product Description
Product Details
Description
The TLV27x provides a higher performance alternative to the TLC27x series of op-amps. These devices take the minimum operating supply voltage down to 2.7V over the extended industrial temperature range while adding the rail-to-rail output swing feature.This makes it an ideal alternative to the TLC27x family for applications where rail-to-rail output swings are essential. The TLV27x also provides 2-MHz bandwidth from only 550μA supply current.
The TLV27x is fully specified for 5V and ±5V supplies. The maximum recommended supply voltage is 16V. The devices can be operated from a variety of rechargeable cells from ±8V down to ±1.35V. The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an attractive alternative for the TLC27x in battery-powered applications.
The 2.7-V operation makes it compatible with Li-Ion powered systems and the operating supply voltage range of many micro-power micro controllers available today.
All parts are available in SOIC packaging; the TLV271 is additionally available in the SOT25 package. Two temperature grades are available for the parts; C grade offers 0 to +70°C operating, I grade offers -40°C to +125°C operating.
Features
• High performance alternative to TLC27x series• Rail to rail output
• Wide bandwidth: 2MHz
• High slew rate: 2.0 V/µs
• Wide range of supply voltages: 2.7V to 16V
• Low supply current: 550µA per channel
• Low input noise voltage: 35nV/√Hz
• Low input bias current: 1pA
• Specified temperature ranges:
▪ 0°C to +70°C: commercial grade
▪ -40°C to +125°C: industrial grade
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Instrumentation Amplifier |
| Series | TLV272 |
| Product | Operational Amplifiers |
| Packaging | Reel |
| Unit-Weight | 0.002610 oz |
| Mounting-Style | SMD/SMT |
| Input-Type | CMOS |
| Output-Type | Rail to Rail |
| Number-of-Channels | 2 Channel |
| Amplifier-Type | CMOS Amplifier |
| Shutdown | No Shutdown |
| Maximum Operating Temperature | + 70 C |
| Operating temperature range | 0 C |
| Operating-Supply-Current | 625 uA |
| Package-Case | SO-8 |
| Ib-Input-Bias-Current | 1 nA |
| Vos-Input-Offset-Voltage | 500 uV |
| Ios-Input-Offset-Current | 1 nA |
| PSRR-Power-Supply-Rejection-Ratio | 80 dB |
| Output-Current-per-Channel | 13 mA |
| CMRR-Common-Mode-Rejection-Ratio | 69 dB |
| GBP-Gain-Bandwidth-Product | 1.9 MHz |
| SR-Slew-Rate | 2.2 V/us |
| Maximum-Dual-Supply-Voltage | +/- 8 V |
| Minimum-Dual-Supply-Voltage | +/- 1.35 V |
| Manufacturer | Diodes Incorporated |
| Product-Category | Operational Amplifiers - Op Amps |
| RoHS | Details |
| Maximum-Operating-Temperature | + 70 C |
| Minimum-Operating-Temperature | 0 C |
| Brand | Diodes Incorporated |
Descriptions
CMOS Amplifier 2 Circuit Rail-to-Rail 8-SO
Op Amp Dual GP R-R O/P 卤8V/16V 8-Pin SO T/R
Operational Amplifiers - Op Amps 2.7 to16V0.55mA 13mA Rail to Rail 2-MHz
