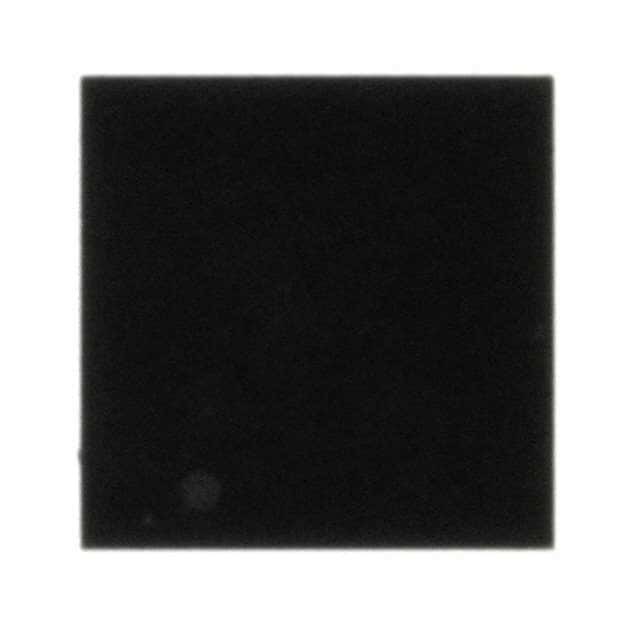

INA826AIDRGR Instrumentation Amplifier IC 1 CIRCUIT 8SON
| Brand Name | Texas Instruments |
|---|---|
| Model Number | INA826AIDRGR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | Instrumentation | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 1V/µs |
| Gain Bandwidth Product | - | -3db Bandwidth | 1 MHz |
| Current - Input Bias | 35 NA | Voltage - Input Offset | 40 µV |
| Current - Supply | 200µA | Current - Output / Channel | 16 MA |
| Voltage - Supply Span (Min) | 2.7 V | Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad | Supplier Device Package | 8-SON (3x3) |
| Highlight | INA826AIDRGR,8SON Instrumentation Amplifier IC,INA826AIDRGR Amplifier IC |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| INA826AIDRGR | IC INST AMP 1 CIRCUIT 8SON | |
| INA826AIDRGT | IC INST AMP 1 CIRCUIT 8SON | |
| OPA2210IDRGT | IC OPAMP GP 2 CIRCUIT 8SON | |
| INA819IDRGT | IC INST AMP 1 CIRCUIT 8SON | |
| OPA1612AIDRGT | IC AUDIO 2 CIRCUIT 8SON | |
| OPA818IDRGT | IC OPAMP JFET 1 CIRCUIT 8SON | |
| OPA211IDRGT | IC OPAMP GP 1 CIRCUIT 8SON | |
| OPA2313IDRGT | IC OPAMP GP 2 CIRCUIT 8SON | |
| OPA2316IDRGT | IC CMOS 2 CIRCUIT 8SON | |
| OPA1652AIDRGT | IC AUDIO 2 CIRCUIT 8SON | |
| INA819IDRGR | IC INST AMP 1 CIRCUIT 8SON | |
| INA333AIDRGT | IC INST AMP 1 CIRCUIT 8SON | |
| OPA2313IDRGR | IC OPAMP GP 2 CIRCUIT 8SON | |
| OPA1678IDRGR | IC AUDIO 2 CIRCUIT 8SON | |
| OPA1688IDRGR | IC OPAMP GP 2 CIRCUIT 8SON | |
| INA821IDRGR | IC INST AMP 1 CIRCUIT 8SON | |
| OPA1612AIDRGR | IC AUDIO 2 CIRCUIT 8SON | |
| OPA818IDRGR | IC OPAMP JFET 1 CIRCUIT 8SON | |
| OPA211AIDRGT | IC OPAMP GP 1 CIRCUIT 8SON | |
| OPA1678IDRGT | IC AUDIO 2 CIRCUIT 8SON | |
| OPA2316IDRGR | IC CMOS 2 CIRCUIT 8SON | |
| INA821IDRGT | IC INST AMP 1 CIRCUIT 8SON | |
| INA333AIDRGR | IC INST AMP 1 CIRCUIT 8SON | |
| OPA2322AIDRGT | IC CMOS 2 CIRCUIT 8SON | |
| OPA1688IDRGT | IC OPAMP GP 2 CIRCUIT 8SON | |
| OPA2320AIDRGR | IC CMOS 2 CIRCUIT 8SON | |
| OPA2172IDRGT | IC OPAMP GP 2 CIRCUIT 8SON | |
| OPA2320AIDRGT | IC CMOS 2 CIRCUIT 8SON | |
| OPA1652AIDRGR | IC AUDIO 2 CIRCUIT 8SON | |
| OPA2322AIDRGR | IC CMOS 2 CIRCUIT 8SON | |
| OPA2172IDRGR | IC OPAMP GP 2 CIRCUIT 8SON | |
| OPA2210IDRGR | IC OPAMP | |
| OPA211AIDRGR | IC OPAMP GP 1 CIRCUIT 8SON | |
| OPA2211AIDRGR | IC OPAMP GP 2 CIRCUIT 8SON | |
| OPA2211AIDRGT | IC OPAMP GP 2 CIRCUIT 8SON | |
| OPA2211MDRGTEP | IC OPAMP GP 2 CIRCUIT 8SON | |
| OPA211AIDRGTG4 | IC OPAMP GP 1 CIRCUIT 8SON |
Product Description
Product Details
INA8583N is a timer with RAM and I2C-bus control. Designed for use in appliances having I2C-bus as clock/ calendar/ timer/ alarm/ events counter for turning on functions of the appliance at preset time or upon completion of an event. To be used in audio and appliances.
Features:
• I2C- bus interface operating supply voltage: 2.5 V to 6 V• Clock operating supply voltage ( 0÷70°С): 1.0 V to 6 V
• Operating current (at fSCL = 0Hz): 50 μА
• Clock function with four year calendar
• 24 or 12 hour format
• 32.768 kHz or 50Hz time base
• Serial bus (I2C)
• Automatic word address in crementation
• Programmable alarm, timer and interrupt function
• Operating temperature range: -20 to +70 °C
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Instrumentation Amplifier |
| Manufacturer | Texas Instruments |
| Product-Category | Instrumentation Amplifiers |
| RoHS | Details |
| 3-dB-Bandwidth | 1 MHz |
| Number-of-Channels | 1 Channel |
| SR-Slew-Rate | 1 V/us |
| Ib-Input-Bias-Current | 65 nA |
| Vos-Input-Offset-Voltage | 150 uV |
| Operating-Supply-Current | 200 uA |
| Maximum-Operating-Temperature | + 125 C |
| Minimum-Operating-Temperature | - 40 C |
| Mounting-Style | SMD/SMT |
| Package-Case | WSON-8 |
| Packaging | Reel |
| Amplifier-Type | Instrumentation Amplifier |
| Brand | Texas Instruments |
| Development-Kit | INA826EVM |
| en-Input-Voltage-Noise-Density | 18 nV/sqrt Hz |
| Gain-V-V | 1 V/V to 1000 V/V |
| Ios-Input-Offset-Current | 10 nA |
| Output-Current-per-Channel | 16 mA |
| Output-Type | Rail-to-Rail |
| Product | Instrumentation Amplifiers |
| PSRR-Power-Supply-Rejection-Ratio | 100 dB |
| Series | INA826 |
| Shutdown | No Shutdown |
| Unit-Weight | 0.000384 oz |
Descriptions
INST Amp Single R-R O/P 卤18V/36V 8-Pin WSON EP T/R
Instrumentation Amplifiers 200uA Supply Current 36V Supply Instr Amp
