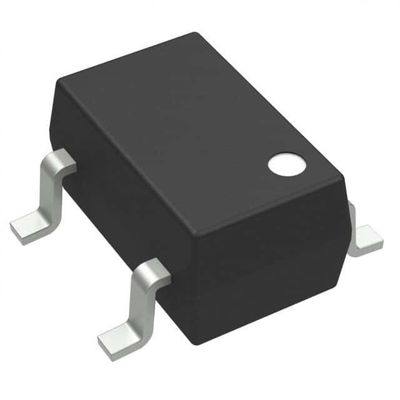

TLV271SN1T1G Amplifier IC Chip GP 1 CIRCUIT 5TSOP Onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | TLV271SN1T1G |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | General Purpose | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 2.6V/µs |
| Gain Bandwidth Product | 3 MHz | -3db Bandwidth | - |
| Current - Input Bias | 1 PA | Voltage - Input Offset | 500 µV |
| Current - Supply | 490µA | Current - Output / Channel | 8 MA |
| Voltage - Supply Span (Min) | 2.7 V | Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | -40°C ~ 105°C | Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | Supplier Device Package | 5-TSOP |
| Highlight | TLV271SN1T1G,TLV271SN1T1G Amplifier IC Chip |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| TLV271SN1T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| LMV321SN3T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCS2003SN2T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCV20091SN3T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCS7101SN2T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCV20061SN3T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCS2003ASN2T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCV21871SN2T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCV321SN3T1G | IC CMOS 1 CIRCUIT 5TSOP | |
| NCV2001SN2T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCS2001SN1T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| LMV931SN3T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCV7101SN1T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCS21911SN2T1G | IC OPAMP ZERO-DRIFT 1 CIRC 5TSOP | |
| NCS7101SN1T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| TLV271SN2T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCS325SN2T1G | IC OPAMP ZERO-DRIFT 1 CIRC 5TSOP | |
| NCV2003SN2T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCS2001SN2T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCS21871SN2T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| LM7301SN1T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCV20081SN3T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCV7101SN2T1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCS2001SN1T1 | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCS2001SN2T1 | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| MC33501SNT1 | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| MC33503SNT1 | IC OPAMP SINGLE R-R 1V 5TSOP | |
| NCS7101SN1T1 | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCS7101SN2T1 | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCS2500SNT1G | IC OPAMP CFA 1 CIRCUIT 5TSOP | |
| NCS2510SNT1G | IC OPAMP CFA 1 CIRCUIT 5TSOP | |
| NCS2511SNT1G | IC OPAMP CFA 1 CIRCUIT 5TSOP | |
| NCS2550SNT1G | IC VOLTAGE FEEDBACK 1 CIRC 5TSOP | |
| NCS2551SNT1G | IC VOLTAGE FEEDBACK 1 CIRC 5TSOP | |
| MC33501SNT1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| MC33503SNT1G | IC OPAMP GP 1 CIRCUIT 5TSOP | |
| NCS333SN2T1G | IC OPAMP ZERO-DRIFT 1 CIRC 5TSOP | |
| LMV301SN3T1G | IC CMOS 1 CIRCUIT 5TSOP |
Product Description
Product Details
Description
The TLV27x provides a higher performance alternative to the TLC27x series of op-amps. These devices take the minimum operating supply voltage down to 2.7V over the extended industrial temperature range while adding the rail-to-rail output swing feature.This makes it an ideal alternative to the TLC27x family for applications where rail-to-rail output swings are essential. The TLV27x also provides 2-MHz bandwidth from only 550μA supply current.
The TLV27x is fully specified for 5V and ±5V supplies. The maximum recommended supply voltage is 16V. The devices can be operated from a variety of rechargeable cells from ±8V down to ±1.35V. The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an attractive alternative for the TLC27x in battery-powered applications.
The 2.7-V operation makes it compatible with Li-Ion powered systems and the operating supply voltage range of many micro-power micro controllers available today.
All parts are available in SOIC packaging; the TLV271 is additionally available in the SOT25 package. Two temperature grades are available for the parts; C grade offers 0 to +70°C operating, I grade offers -40°C to +125°C operating.
Features
• High performance alternative to TLC27x series• Rail to rail output
• Wide bandwidth: 2MHz
• High slew rate: 2.0 V/µs
• Wide range of supply voltages: 2.7V to 16V
• Low supply current: 550µA per channel
• Low input noise voltage: 35nV/√Hz
• Low input bias current: 1pA
• Specified temperature ranges:
▪ 0°C to +70°C: commercial grade
▪ -40°C to +125°C: industrial grade
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ON Semiconductor |
| Product Category | Instrumentation Amplifier |
| Series | TLV271 |
| Product | Operational Amplifiers |
| Packaging | Reel |
| Mounting-Style | SMD/SMT |
| Number-of-Channels | 1 Channel |
| Shutdown | No Shutdown |
| Maximum Operating Temperature | + 105 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 550 uA |
| Supply-Voltage-Max | 16 V |
| Supply-Voltage-Min | 2.7 V |
| Package-Case | TSOP-5 |
| Ib-Input-Bias-Current | 150 pA |
| Vos-Input-Offset-Voltage | 5 mV |
| Vcm-Common-Mode-Voltage | 2.7 V to 16 V |
| Output-Current-per-Channel | 13 mA |
| CMRR-Common-Mode-Rejection-Ratio | 69 dB |
| GBP-Gain-Bandwidth-Product | 3.2 MHz |
| SR-Slew-Rate | 2.6 V/us |
Descriptions
General Purpose Amplifier 1 Circuit Rail-to-Rail 5-TSOP
OP Amp Single GP R-R O/P 卤8V/16V Automotive 5-Pin TSOP T/R
Operational Amplifiers - Op Amps SINGLE CH RTR 3MHZ OPAMP
