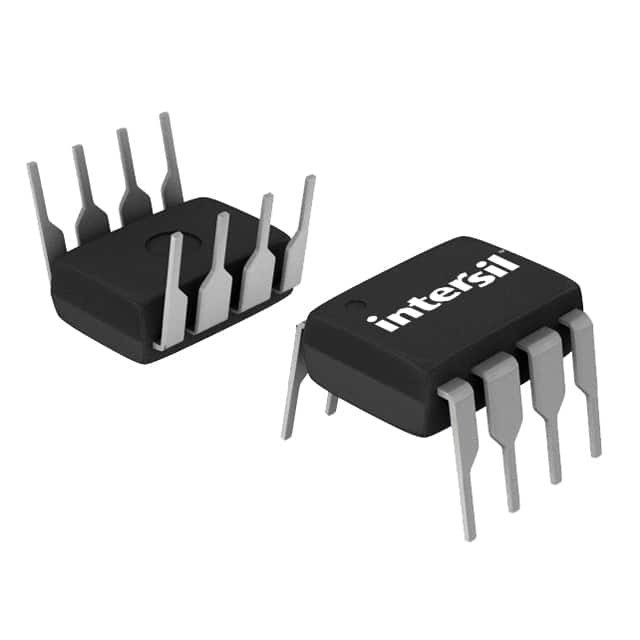

CA3140EZ General Purpose Amplifier IC GP 1 CIRCUIT 8DIP Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | CA3140EZ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | General Purpose | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | - | Slew Rate | 9V/µs |
| Gain Bandwidth Product | 4.5 MHz | -3db Bandwidth | - |
| Current - Input Bias | 10 PA | Voltage - Input Offset | 5 MV |
| Current - Supply | 4mA | Current - Output / Channel | 40 MA |
| Voltage - Supply Span (Min) | 4 V | Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) | Supplier Device Package | 8-PDIP |
| Highlight | CA3140EZ,CA3140EZ General Purpose Amplifier IC,8DIP General Purpose Amplifier IC |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| CA3140EZ | IC OPAMP GP 1 CIRCUIT 8DIP | |
| ICL7621DCPAZ | IC CMOS 2 CIRCUIT 8DIP | |
| ICL7650SCPA-1Z | IC OPAMP ZERO-DRIFT 1 CIRC 8DIP | |
| HA3-2525-5Z | IC OPAMP GP 1 CIRCUIT 8DIP | |
| ICL7612DCPAZ | IC OPAMP GP 1 CIRCUIT 8DIP | |
| CA3420EZ | IC OPAMP GP 1 CIRCUIT 8DIP | |
| CA3140AEZ | IC OPAMP GP 1 CIRCUIT 8DIP | |
| CA3240EZ | IC OPAMP GP 2 CIRCUIT 8DIP | |
| CA3130EZ | IC OPAMP GP 1 CIRCUIT 8DIP | |
| ICL7611DCPAZ | IC OPAMP GP 1 CIRCUIT 8DIP | |
| CA3240AEZ | IC OPAMP GP 2 CIRCUIT 8DIP | |
| CA3130E | IC OPAMP GP 1 CIRCUIT 8DIP | |
| CA3140E | IC OPAMP GP 1 CIRCUIT 8DIP | |
| CA3240E | IC OPAMP GP 2 CIRCUIT 8DIP | |
| CA3260E | IC CMOS 2 CIRCUIT 8DIP | |
| CA3080E | IC OPAMP TRANSCOND 1 CIRC 8DIP | |
| ICL7650SCPA-1 | IC OPAMP ZERO-DRIFT 1 CIRC 8DIP | |
| EL5146CN | IC VOLTAGE FEEDBACK 1 CIRC 8DIP | |
| EL5244CN | IC VOLTAGE FEEDBACK 2 CIRC 8DIP | |
| CA3140AE | IC OPAMP GP 1 CIRCUIT 8DIP | |
| EL2045CN | IC VOLTAGE FEEDBACK 1 CIRC 8DIP | |
| HA3-2525-5 | IC OPAMP GP 1 CIRCUIT 8DIP | |
| HFA1100IP | IC OPAMP CFA 1 CIRCUIT 8DIP | |
| HFA1112IP | IC BUFFER 1 CIRCUIT 8DIP | |
| CA3130AE | IC OPAMP GP 1 CIRCUIT 8DIP | |
| CA3240AE | IC OPAMP GP 2 CIRCUIT 8DIP | |
| CA3260AE | IC CMOS 2 CIRCUIT 8DIP | |
| CA3260EZ | IC CMOS 2 CIRCUIT 8DIP | |
| CA3420E | IC OPAMP GP 1 CIRCUIT 8DIP | |
| HA3-2625-5 | IC OPAMP GP 1 CIRCUIT 8DIP | |
| HA3-5002-5 | IC BUFFER 1 CIRCUIT 8DIP | |
| HA3-5002-5Z | IC BUFFER 1 CIRCUIT 8DIP | |
| ICL7611DCPA | IC OPAMP GP 1 CIRCUIT 8DIP | |
| ICL7612BCPA | IC OPAMP GP 1 CIRCUIT 8DIP | |
| ICL7612DCPA | IC OPAMP GP 1 CIRCUIT 8DIP | |
| ICL7621DCPA | IC CMOS 2 CIRCUIT 8DIP | |
| ICL7612BCPAZ | IC OPAMP GP 1 CIRCUIT 8DIP | |
| HFA1112IPZ | IC BUFFER 1 CIRCUIT 8DIP | |
| CA3260AEZ | IC CMOS 2 CIRCUIT 8DIP |
Product Description
Product Details
The CA3140A and CA3140 are integrated circuit operational amplifiers that combine the advantages of high voltage PMOS transistors with high voltage bipolar transistors on a single monolithic chip.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | Instrumentation Amplifier |
| Series | CA3140 |
| Product | Operational Amplifiers |
| Packaging | Tube |
| Unit-Weight | 0.032805 oz |
| Mounting-Style | Through Hole |
| Technology | BiCMOS |
| Number-of-Channels | 1 Channel |
| Amplifier-Type | General Purpose Amplifier |
| Shutdown | No Shutdown |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 55 C |
| Operating-Supply-Current | 4 mA |
| Supply-Voltage-Max | 36 V |
| Supply-Voltage-Min | 4 V |
| Package-Case | PDIP-8 |
| Ib-Input-Bias-Current | 50 pA |
| Vos-Input-Offset-Voltage | 15 mV |
| PSRR-Power-Supply-Rejection-Ratio | 80 dB (Typ) |
| Output-Current-per-Channel | 40 mA |
| CMRR-Common-Mode-Rejection-Ratio | 70 dB |
| GBP-Gain-Bandwidth-Product | 4.5 MHz |
| SR-Slew-Rate | 9 V/us |
| en-Input-Voltage-Noise-Density | 40 nV/sqrt Hz at +/- 15 V |
| Maximum-Dual-Supply-Voltage | +/- 18 V |
| Minimum-Dual-Supply-Voltage | +/- 2 V |
Descriptions
General Purpose Amplifier 1 Circuit 8-PDIP
Op Amp Single GP 卤18V/36V Automotive 8-Pin PDIP Tube
Operational Amplifiers - Op Amps W/ANNEAL OPAMP 4.5MH ZLWBIAS0.04NA8PDIPML
