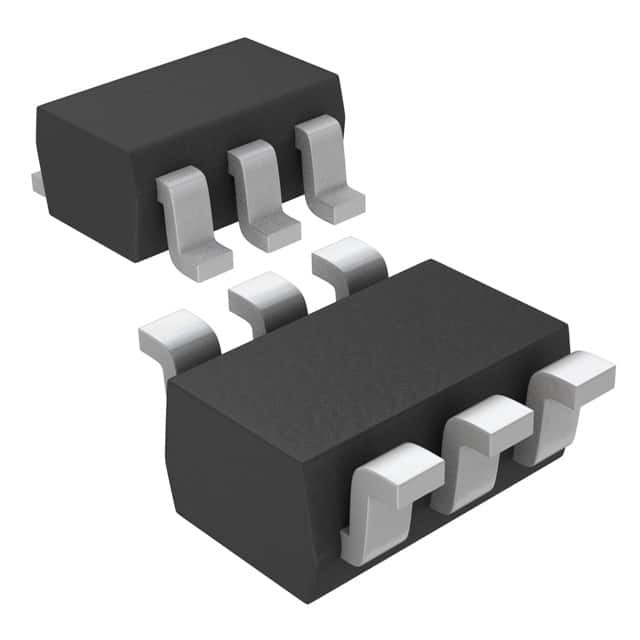

MAX9636AXT+T Amplifier IC Chip GP 1 CIRCUIT SC70-6 Surface Mount
| Brand Name | Analog Devices Inc./Maxim Integrated |
|---|---|
| Model Number | MAX9636AXT+T |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | General Purpose | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 0.9V/µs |
| Gain Bandwidth Product | 1.5 MHz | -3db Bandwidth | - |
| Current - Input Bias | 0.1 PA | Voltage - Input Offset | 300 µV |
| Current - Supply | 36µA | Current - Output / Channel | 55 MA |
| Voltage - Supply Span (Min) | 2.1 V | Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | Supplier Device Package | SC-70-6 |
| Highlight | MAX9636AXT+T,MAX9636AXT+T Amplifier IC Chip |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MAX9636AXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX9915EXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX44260AXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX9617AXT+T | IC OPAMP ZERO-DRIFT 1CIRC SC70-6 | |
| MAX9613AXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX9619AXT+T | IC OPAMP ZERO-DRIFT 1CIRC SC70-6 | |
| MAX4481AXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4245AXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX9614AXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4231AXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX44280AXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX9911EXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4401AXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4335EXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4380EXT+T | IC OPAMP VFB 1 CIRCUIT SC70-6 | |
| MAX4336EXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX44261AXT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4401AXT-T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4481AXT-T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4231AXT-T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4245AXT-T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4336EXT-T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX9911EXT-T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX9915EXT-T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX44260SAYT+T | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4245AXT+TG069 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4245AXT+TGC1 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4401AXT+TG05 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4401AXT+TG24 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4401AXT+TG50 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4336EXT | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX9915EXT+TG05 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX9911EXT+TG50 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX9915EXT+TG071 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4401AXT+G50 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX9911EXT+G50 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4401AXT+G126 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4401AXT+G24 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4245AXT+GC1 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4401AXT+G05 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX9915EXT+G05 | IC OPAMP GP 1 CIRCUIT SC70-6 | |
| MAX4390EXT-T | IC CURR SENSE 1 CIRCUIT SC70-6 |
Product Description
Product Details
General Description
The MAX9636/MAX9637/MAX9638 are single-supply, CMOS input op amps featuring wide bandwidth at low quiescent current, making them suitable for a broad range of battery-powered applications such as portable medical instruments, portable media players, and smoke detectors. A combination of extremely low input bias currents, low input current noise and low input voltage noise allows interface to high-impedance sources such as photodiode and piezoelectric sensors. These devices are also ideal for general-purpose signal processing functions such as filtering and amplification in a broad range of portable, battery-powered applications.
Features
♦ Low Input Voltage-Noise Density: 38nV/√Hz♦ Low Input Current-Noise Density: 0.9fA/√Hz
♦ Ultra-Low 0.1pA Bias Current
♦ Low 36µA Quiescent Current
♦ 1µA Quiescent Current in Shutdown
♦ Wide 1.5MHz Bandwidth
♦ Single-Supply Operation VDD = 2.1V to 5.5V
♦ Available in Tiny 6-Pin SC70, 8-Pin SC70, and 10-Pin UTQFN Packages
♦ -40°C to +125°C Operating Temperature Range
Applications
Portable Medical InstrumentsPiezoelectric Transducer Amplifiers
Smoke Detectors
Battery-Powered Devices
General-Purpose Signal Conditioning
Notebooks
Portable Media Players
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Maxim Integrated |
| Product Category | Instrumentation Amplifier |
| Series | MAX9636 |
| Product | Operational Amplifiers |
| Packaging | Reel |
| Unit-Weight | 0.000988 oz |
| Mounting-Style | SMD/SMT |
| Number-of-Channels | 1 Channel |
| Shutdown | Shutdown |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 36 uA |
| Software Development Kit | MAX9636EVKIT+ |
| Part-#-Aliases | MAX9636 |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 2.1 V |
| Package-Case | SC-70-6 |
| Ib-Input-Bias-Current | 800 pA |
| Vos-Input-Offset-Voltage | 3.5 mV |
| Vcm-Common-Mode-Voltage | 2.1 V to 5.5 V |
| Output-Current-per-Channel | 40 mA |
| CMRR-Common-Mode-Rejection-Ratio | 68 dB |
| GBP-Gain-Bandwidth-Product | 1.5 MHz |
| SR-Slew-Rate | 0.9 V/us |
| Manufacturer | Maxim Integrated |
| Product-Category | Operational Amplifiers - Op Amps |
| RoHS | Details |
| Supply-Voltage-Max | 5.5 V |
| Maximum-Operating-Temperature | + 125 C |
| Minimum-Operating-Temperature | - 40 C |
| Brand | Maxim Integrated |
| Development-Kit | MAX9636EVKIT+ |
| Manufacturer Part# | Description | Manufacturer | Compare |
| LMX321AXK-T Amplifier Circuits |
OP-AMP, 6000uV OFFSET-MAX, 1.3MHz BAND WIDTH, PDSO5, SC-88A, MO-203, SC-70, 5 PIN | Rochester Electronics LLC | MAX9636AXT+T vs LMX321AXK-T |
| LMX321AXK+T Amplifier Circuits |
Operational Amplifier, 1 Func, 6000uV Offset-Max, BIPolar, PDSO5, SC-70, 5 PIN | Maxim Integrated Products | MAX9636AXT+T vs LMX321AXK+T |
| MAX9636AXT+ Amplifier Circuits |
Operational Amplifier, 1 Func, 3500uV Offset-Max, CMOS, PDSO6, SC-70, 6 PIN | Maxim Integrated Products | MAX9636AXT+T vs MAX9636AXT+ |
Descriptions
General Purpose Amplifier 1 Circuit Rail-to-Rail SC-70-6
Operational Amplifiers - Op Amps 3V-5V Low-Power Op Amp
