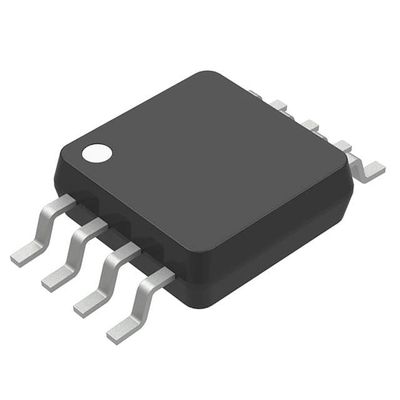

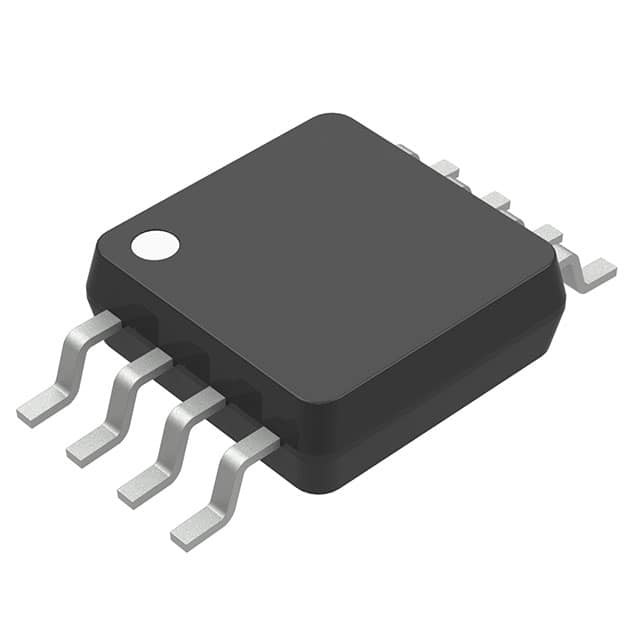

NCV20092DMR2G General Purpose Amplifier IC GP 2 CIRCUIT 8MSOP Onsemi

Low Voltage, Rail-to-Rail Output Operational Amplifier



The NCS2003/NCV2003 is a low voltage operational amplifier with rail−to−rail output drive capability. The 1.8 V operation allows high performance operation in low voltage, low power applications.

Additional features include no output phase reversal with overdriven inputs, a low input offset voltage of 0.5 mV, ultra low input bias current of 1 pA, and a unity gain bandwidth of 5 MHz at 1.8 V. The tiny NCS2003 is the ideal solution for small portable electronic applications and is available in the space saving SOT23−5 and SOT−553 packages. The NCV2003 is available in SOT23−5 and is AEC−Q100 Qualified and PPAP Capable.





Features

• 7 MHz Unity Gain Bandwidth at 5 V
• 5 MHz Unity Gain Bandwidth at 1.8 V
• Rail−to−Rail Output
• No Output Phase Reversal for Over−Driven Input Signals
• Low Offset Voltage − 500 μV typical
• Low Input Bias Current – 1 pA typical
• Space saving SOT23−5 and SOT553−5 Packages
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant





Typical Applications

• Cellular Telephones
• Current Shunt Monitors for battery monitoring
• Pulse Oximetry Signal Conditioning
• Blood Pressure Monitor Conditioning and Filtering
• Hard Drive Sensor Buffer
