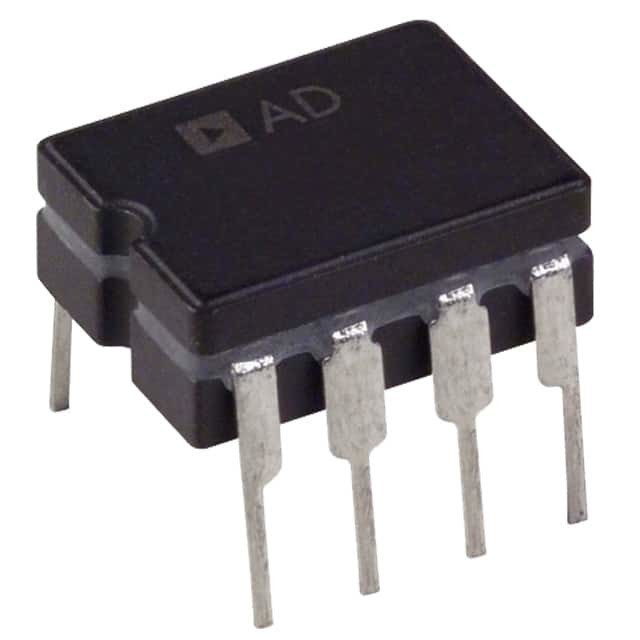

JM38510/11402BPA IC OPAMP JFET 1 CIRCUIT 8CERDIP Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | JM38510/11402BPA |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | J-FET | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | - | Slew Rate | 7.5V/µs |
| Gain Bandwidth Product | - | -3db Bandwidth | - |
| Current - Input Bias | 100 PA | Voltage - Input Offset | 5 MV |
| Current - Supply | - | Current - Output / Channel | 50 MA |
| Voltage - Supply Span (Min) | 10 V | Voltage - Supply Span (Max) | 40 V |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) | Supplier Device Package | 8-CERDIP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| JM38510/11402BPA | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| JM38510/11405BPA | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| JM38510/13501BPA | IC OPAMP GP 1 CIRCUIT | |
| AD783JQ | IC SAMPL/HOLD 1 CIRCUIT 8CERDIP | |
| JM38510/13503BPA | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| 5962-9211701MPA | IC OPAMP GP 2 CIRCUIT 8CERDIP | |
| AD8001AQ | IC OPAMP CFA 1 CIRCUIT 8CERDIP | |
| 5962-9313101MPA | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| 5962-9559701MPA | IC OPAMP VFB 1 CIRCUIT 8CERDIP | |
| AD843SQ | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| AD712AQ | IC OPAMP JFET 2 CIRCUIT 8CERDIP | |
| AD708AQ | IC OPAMP GP 2 CIRCUIT 8CERDIP | |
| AD603AQ | IC VARIABLE GAIN 1 CIRC 8CERDIP | |
| OP200AZ | IC OPAMP GP 2 CIRCUIT 8CERDIP | |
| OP270EZ | IC OPAMP GP 2 CIRCUIT 8CERDIP | |
| OP270FZ | IC OPAMP GP 2 CIRCUIT 8CERDIP | |
| OP27AZ | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| OP27EZ | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| OP42FZ | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| OP77EZ | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| AD708BQ | IC OPAMP GP 2 CIRCUIT 8CERDIP | |
| AD711AQ | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| AD744AQ | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| AD744BQ | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| AD746AQ | IC OPAMP JFET 13MHZ 8CDIP | |
| AD746BQ | IC OPAMP JFET 13MHZ 8CDIP | |
| AD746SQ | IC OPAMP JFET 2 CIRCUIT 8CERDIP | |
| AD827AQ | IC OPAMP GP 2 CIRCUIT 8CERDIP | |
| AD827SQ | IC OPAMP GP 2 CIRCUIT 8CERDIP | |
| AD843AQ | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| AD843BQ | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| AD844AQ | IC OPAMP CFA 1 CIRCUIT 8CERDIP | |
| AD844BQ | IC OPAMP CFA 1 CIRCUIT 8CERDIP | |
| AD844SQ | IC OPAMP CFA 1 CIRCUIT 8CERDIP | |
| AD845AQ | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| AD845BQ | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| AD845SQ | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| AD847AQ | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| AD847SQ | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| AD848AQ | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| AD848SQ | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| OP200EZ | IC OPAMP GP 2 CIRCUIT 8CERDIP | |
| OP249AZ | IC OPAMP JFET 2 CIRCUIT 8CERDIP | |
| OP249FZ | IC OPAMP JFET 2 CIRCUIT 8CERDIP | |
| OP297EZ | IC OPAMP GP 2 CIRCUIT 8CERDIP | |
| OP42AZ | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| OP42EZ | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| OP77FZ | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| 5962-8773802PA | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| 5962-8851301PA | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| 5962-8853801PA | IC OPAMP JFET 2 CIRCUIT 8CERDIP | |
| 5962-8859301MPA | IC OPAMP GP 2 CIRCUIT 8CERDIP | |
| 5962-8872101PA | IC OPAMP GP 2 CIRCUIT 8CERDIP | |
| 5962-8954401PA | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| 5962-8964401PA | IC OPAMP CF 60MHZ 80MA 8CERDIP | |
| 5962-8964501PA | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| 5962-8964701PA | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| 5962-9151901MPA | IC OPAMP JFET 2 CIRCUIT 8CERDIP | |
| 5962-9457203MPA | IC OPAMP VGA 1 CIRCUIT 8CERDIP | |
| 5962-9459301MPA | IC OPAMP CF 800MHZ 80MA 8CERDIP | |
| 5962-9683901MPA | IC OPAMP VFB 1 CIRCUIT 8CERDIP | |
| AD603SQ/883B | IC VARIABLE GAIN 1 CIRC 8CERDIP | |
| AD620SQ/883B | IC INST AMP 1 CIRCUIT 8CERDIP | |
| AD621SQ/883B | IC INST AMP 1 CIRCUIT 8CERDIP | |
| AD708SQ/883B | IC OPAMP GP 2 CIRCUIT 8CERDIP | |
| AD712SQ/883B | IC OPAMP JFET 2 CIRCUIT 8CERDIP | |
| AD746SQ/883B | IC OPAMP BIFET PREC DUAL 8CERDIP | |
| AD811SQ/883B | IC OPAMP CFA 1 CIRCUIT 8CERDIP | |
| AD827SQ/883B | IC OPAMP GP 50MHZ DUAL LP 8CDIP | |
| AD843SQ/883B | IC OPAMP GP 34MHZ 50MA 8CERDIP | |
| AD844SQ/883B | IC OPAMP CF 60MHZ 80MA 8CERDIP | |
| AD847SQ/883B | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| AD848SQ/883B | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| OP27AZ/883C | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| OP42AZ/883C | IC OPAMP JFET 1 CIRCUIT 8CERDIP | |
| 5962R9863701VPA | IC OPAMP GP 1 CIRCUIT 8CERDIP | |
| OP420122Z | IC OPAMP GP 4 CIRCUIT 8CERDIP |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Instrumentation Amplifier |
| Manufacturer | Analog Devices Inc. |
| Product-Category | Operational Amplifiers - Op Amps |
| RoHS | No |
| Mounting-Style | Through Hole |
| Package-Case | CDIP-8 |
| Number-of-Channels | 1 Channel |
| SR-Slew-Rate | 7.5 V/us |
| Ib-Input-Bias-Current | 0.0003 uA |
| Vos-Input-Offset-Voltage | 5 mV |
| Operating-Supply-Current | 7 mA |
| Maximum-Operating-Temperature | + 125 C |
| Minimum-Operating-Temperature | - 55 C |
| Shutdown | No Shutdown |
| Series | PM156S |
| Packaging | Tube |
| Amplifier-Type | General Purpose Amplifier |
| Brand | Analog Devices |
| Maximum-Dual-Supply-Voltage | +/- 20 V |
| Minimum-Dual-Supply-Voltage | +/- 5 V |
| Product | Operational Amplifiers |
| PSRR-Power-Supply-Rejection-Ratio | 85 dB |
| Technology | BiFET |
Descriptions
Amplifier Circuit 8-CERDIP
OP Amp Single GP 卤20V 8-Pin CDIP
Operational Amplifiers - Op Amps Aerospace Mono JFET Input
