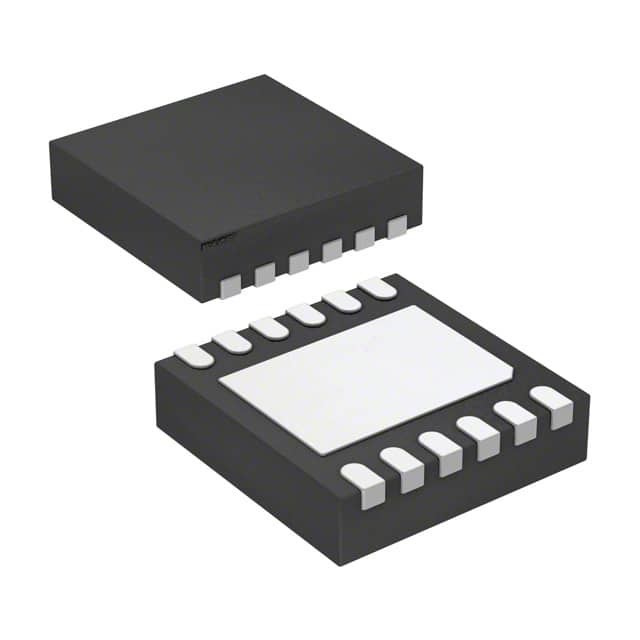

LMR23615DRRT IC REG BUCK ADJ 1.5A 12SON Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | LMR23615DRRT |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 36V | Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 28V | Current - Output | 1.5A |
| Frequency - Switching | 2.425MHz | Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 12-WFDFN Exposed Pad | Supplier Device Package | 12-SON (3x3) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LMR23615DRRT | IC REG BUCK ADJ 1.5A 12SON | |
| LMR23625CFPDRRT | IC REG BUCK ADJ 2.5A 12SON | |
| LMR23630FDRRT | IC REG BUCK ADJUSTABLE 3A 12SON | |
| LMR23630DRRT | IC REG BUCK ADJUSTABLE 3A 12SON | |
| LMR23630APDRRT | IC REG BUCK ADJUSTABLE 3A 12SON | |
| LMR23630QDRRTQ1 | IC REG BUCK ADJUSTABLE 3A 12SON | |
| LMR23625CFPQDRRTQ1 | IC REG BUCK ADJ 2.5A 12SON | |
| LMR23615QDRRTQ1 | IC REG BUCK ADJ 1.5A 12SON | |
| LMR23630DRRR | IC REG BUCK ADJUSTABLE 3A 12SON | |
| LMR23630APQDRRRQ1 | IC REG BUCK ADJUSTABLE 3A 12SON | |
| LMR23630FQDRRTQ1 | IC REG BUCK ADJUSTABLE 3A 12SON | |
| LMR23615DRRR | IC REG BUCK ADJ 1.5A 12SON | |
| LMR23630APQDRRTQ1 | IC REG BUCK ADJUSTABLE 3A 12SON | |
| LMR23625CFPDRRR | IC REG BUCK ADJ 2.5A 12SON | |
| LMR23630APDRRR | IC REG BUCK ADJUSTABLE 3A 12SON | |
| LMR23615QDRRRQ1 | IC REG BUCK ADJ 1.5A 12SON | |
| LMR23630FDRRR | IC REG BUCK ADJUSTABLE 3A 12SON | |
| LMR23630FQDRRRQ1 | IC REG BUCK ADJUSTABLE 3A 12SON | |
| LMR23630QDRRRQ1 | IC REG BUCK ADJUSTABLE 3A 12SON | |
| LMR23625CFPQDRRRQ1 | IC REG BUCK ADJ 2.5A 12SON |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | DC Switching Regulators |
| Series | SIMPLE SWITCHER® |
| Operating-Temperature | -40°C ~ 125°C (TJ) |
| Mounting-Type | Surface Mount Wettable Flank |
| Output-Type | Adjustable |
| Function | Step-Down |
| Supplier-Device-Package | 12-SON (3x3) |
| Number-of-Outputs | 1 Output |
| Topology | Buck |
| Frequency-Switching | 2．425MHz |
| Current-Output | 1．5A |
| Output-Configuration | Positive |
| Voltage-Output-Max | 28V |
| Synchronous-Rectifier | Yes |
| Voltage-Input-Min | 4V |
| Voltage-Input-Max | 36V |
| Package-Case | 12-WFDFN Exposed Pad |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Manufacturer | Texas Instruments |
| Product-Status | Active |
| Base-Product-Number | LMR23615 |
| Voltage-Output-Min-Fixed | 1V |
