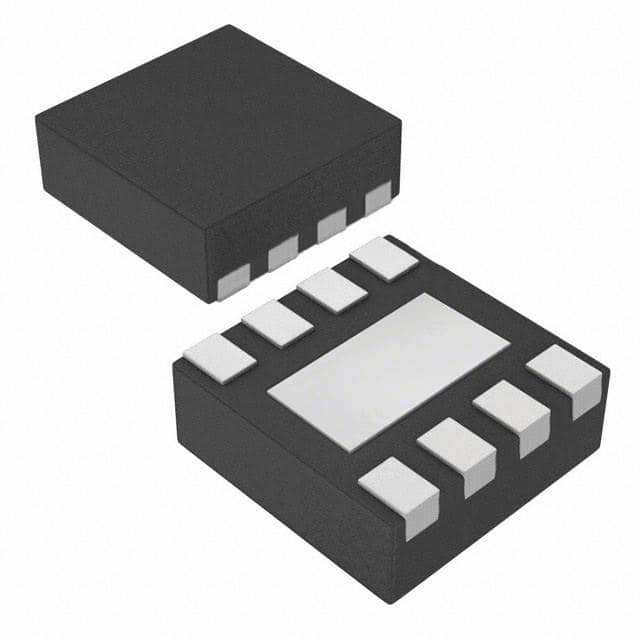

MC33063ADRJR IC REG BUCK BST ADJ 1.5A 8SON Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | MC33063ADRJR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Up, Step-Down | Output Configuration | Positive Or Negative |
|---|---|---|---|
| Topology | Buck, Boost | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 40V | Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 40V (Switch) | Current - Output | 1.5A (Switch) |
| Frequency - Switching | 100kHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad | Supplier Device Package | 8-SON (4x4) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MC33063ADRJR | IC REG BUCK BST ADJ 1.5A 8SON | |
| MC34063ADRJR | IC REG BUCK BST ADJ 1.5A 8SON | |
| LM25007SD/NOPB | IC REG BUCK ADJ 500MA 8WSON | |
| LM5002SD/NOPB | IC REG MULTI CONFG ADJ 8WSON | |
| LM5001SD/NOPB | IC REG MULTI CONFG ADJ 8WSON | |
| LM5007SDX/NOPB | IC REG BUCK ADJ 500MA 8WSON | |
| LM5001SDX/NOPB | IC REG MULTI CONFG ADJ 8WSON | |
| LM5007SD | IC REG BUCK ADJ 500MA 8WSON | |
| LM2687LD/NOPB | IC REG CHARG PUMP ADJ 10MA 8WSON | |
| LM25007SD | IC REG BUCK ADJ 500MA 8WSON | |
| LM5001SD | IC REG MULTI CONFG ADJ 8WSON | |
| LM5002SD | IC REG MULTI CONFG ADJ 8WSON | |
| LM2687LDX/NOPB | IC REG CHARG PUMP ADJ 10MA 8WSON | |
| LM2687LDX | IC REG CHARG PUMP ADJ 10MA 8WSON | |
| MC34063ADRJRG4 | IC REG BUCK BST ADJ 1.5A 8SON | |
| LM5008SDX/NOPB | IC REG BUCK ADJ 350MA 8WSON | |
| LM25007SDX | IC REG BUCK ADJ 500MA 8WSON | |
| LM5001SDX | IC REG MULTI CONFG ADJ 8WSON | |
| LM5002SDX | IC REG MULTI CONFG ADJ 8WSON | |
| LM5008SDX | IC REG BUCK ADJ 350MA 8WSON |
Product Description
Product Details
Description: The MC33063ADRJR is a DC switching regulator from Texas Instruments Integrated Circuits (ICs). It is part of the MC33063A series and is a surface mount device with a unit weight of 0.000384 oz. It is a step-up and step-down regulator with an adjustable output type and a frequency switching of 100kHz. It has one output with a current output of 1.5A (Switch) and a topology of Buck, Boost. It is packaged in an 8-WDFN Exposed Pad.
Features:
• Step-up and step-down regulator
• Adjustable output type
• Frequency switching of 100kHz
• Current output of 1.5A (Switch)
• Topology of Buck, Boost
• 8-WDFN Exposed Pad package
Applications:
• Automotive
• Industrial
• Consumer electronics
• Portable devices
• Power management
Features:
• Step-up and step-down regulator
• Adjustable output type
• Frequency switching of 100kHz
• Current output of 1.5A (Switch)
• Topology of Buck, Boost
• 8-WDFN Exposed Pad package
Applications:
• Automotive
• Industrial
• Consumer electronics
• Portable devices
• Power management
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | DC Switching Regulators |
| Series | MC33063A |
| Type | Charge Pump |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.000384 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-WDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Function | Step-Up, Step-Down |
| Supplier-Device-Package | 8-SON Exposed Pad (4x4) |
| Number-of-Outputs | 1 Output |
| Topology | Buck, Boost |
| Frequency-Switching | 100kHz |
| Current-Output | 1.5A (Switch) |
| Output-Configuration | Positive or Negative |
| Output Voltage | 1.25V |
| Voltage-Output-Max | 40V (Switch) |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 3V |
| Voltage-Input-Max | 40V |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 1.25 V to 40 V |
| Input-Voltage-MAX | 40 V |
| Output-Current | 1.5 A |
| Switching-Frequency | 100 kHz |
| Input-Voltage-MIN | 3 V |
| Load-Regulation | 10 mV +/- 0.017 % 3 mV +/- 0.03 % |
| Package-Case | WSON-8 |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| MC33063ADRJRG4 Power Circuits |
1.5-A Peak Boost/Buck/Inverting Switching Regulator 8-SON -40 to 85 | Texas Instruments | MC33063ADRJR vs MC33063ADRJRG4 |
Descriptions
Buck, Boost Switching Regulator IC Positive or Negative Adjustable 1.25V 1 Output 1.5A (Switch) 8-WDFN Exposed Pad
Conv DC-DC 3V to 40V Inv/Step Up/Step Down Single-Out 1.25V to 40V 1.5A 8-Pin WSON EP T/R
Voltage Regulators - Switching Regulators 1.5-A Peak Boost/ Buck/Inverting
