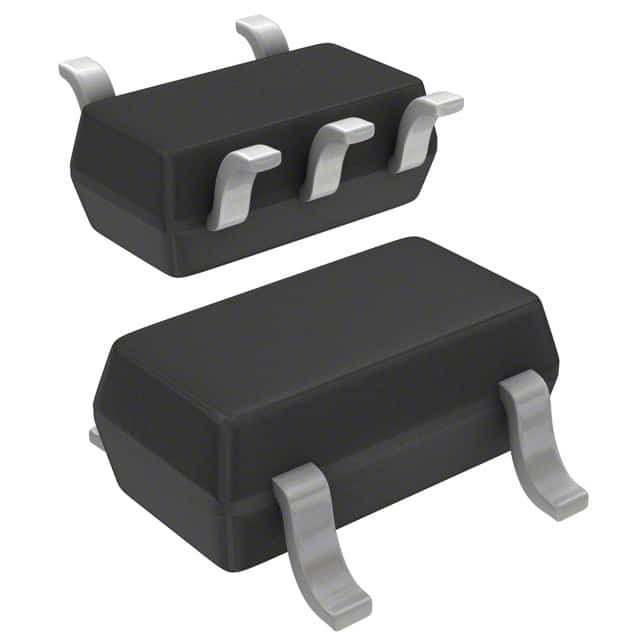

SP6669AEK-L/TRR3 IC REG BUCK ADJ 600MA SOT23-5 MaxLinear, Inc.
| Brand Name | MaxLinear, Inc. |
|---|---|
| Model Number | SP6669AEK-L/TRR3 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V | Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5V | Current - Output | 600mA |
| Frequency - Switching | 1.5MHz | Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 | Supplier Device Package | SOT-23-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| SP6669AEK-L/TRR3 | IC REG BUCK ADJ 600MA SOT23-5 | |
| XRP6658ISTR-F | IC REG BUCK ADJ 1A SOT23-5 | |
| SP6641AEK-L-3-3 | IC REG BOOST 3.3V 1.5A SOT23-5 | |
| SP6641AEK-L-5-0 | IC REG BOOST 5V 1.5A SOT23-5 | |
| SP6641BEK-L-3-3 | IC REG BOOST 3.3V 1.5A SOT23-5 | |
| SP6641BEK-L-5-0 | IC REG BOOST 5V 1.5A SOT23-5 | |
| SP6669BEK-L/TRR3 | IC REG BUCK 1.2V 600MA SOT23-5 | |
| SP6669CEK-L/TRR3 | IC REG BUCK 1.5V 600MA SOT23-5 | |
| SP6669DEK-L/TRR3 | IC REG BUCK 1.8V 600MA SOT23-5 | |
| SP6641AEK-L-3-3/TR | IC REG BOOST 3.3V 1.5A SOT23-5 | |
| SP6641AEK-L-5-0/TR | IC REG BOOST 5V 1.5A SOT23-5 | |
| SP6641BEK-L-3-3/TR | IC REG BOOST 3.3V 1.5A SOT23-5 | |
| SP6641BEK-L-5-0/TR | IC REG BOOST 5V 1.5A SOT23-5 | |
| SP6641AEK-3-3/TR | IC REG BOOST 3.3V 1.5A SOT23-5 | |
| SP6641BEK-3-3/TR | IC REG BOOST 3.3V 1.5A SOT23-5 | |
| SP6641BEK-5-0/TR | IC REG BOOST 5V 1.5A SOT23-5 | |
| SP6641AEK-L-3-3/MTR | IC REG BOOST 3.3V 1.5A SOT23-5 | |
| SP6641AEK-L-5-0/MTR | IC REG BOOST 5V 1.5A SOT23-5 | |
| SP6641BEK-L-3-3/MTR | IC REG BOOST 3.3V 1.5A SOT23-5 | |
| SP6641BEK-L-5-0/MTR | IC REG BOOST 5V 1.5A SOT23-5 |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | MaxLinear |
| Product Category | DC Switching Regulators |
| Series | SP6669 |
| Type | Voltage Converter |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.001058 oz |
| Mounting-Style | SMD/SMT |
| Tradename | Sipex |
| Operating-Temperature-Range | - 40 C to + 85 C |
| Package-Case | SC-74A, SOT-753 |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Function | Step-Down |
| Supplier-Device-Package | SOT-23-5 |
| Number-of-Outputs | 1 Output |
| Topology | Buck |
| Frequency-Switching | 1.5MHz |
| Current-Output | 600mA |
| Output-Configuration | Positive |
| Output Voltage | 0.6V |
| Voltage-Output-Max | 5V |
| Synchronous-Rectifier | Yes |
| Voltage-Input-Min | 2.5V |
| Voltage-Input-Max | 5.5V |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | Adj |
| Input-Voltage-MAX | 5.5 V |
| Output-Current | 600 mA |
| Switching-Frequency | 1.5 MHz |
| Input-Voltage-MIN | 2.5 V |
| Load-Regulation | 0.5 % |
| Package-Case | SOT-23-5 |
Descriptions
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 600mA SC-74A, SOT-753
Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.6V to 5V 0.6A 5-Pin SOT-23 T/R
Voltage Regulators - Switching Regulators 2.5V-5.5V 1500kHz temp -40C to 85C
