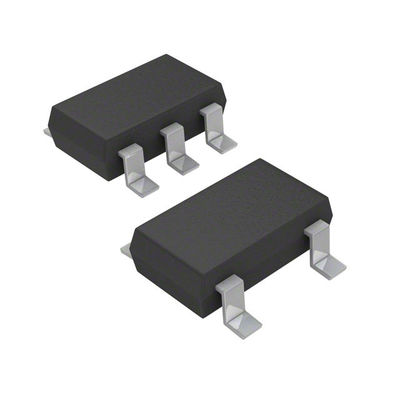

MP2104DJ-LF-Z IC REG BUCK ADJ 600MA TSOT23-5 Monolithic Power Systems Inc.
| Brand Name | Monolithic Power Systems Inc. |
|---|---|
| Model Number | MP2104DJ-LF-Z |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 6V | Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 6V | Current - Output | 600mA |
| Frequency - Switching | 1.7MHz | Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | Supplier Device Package | TSOT-23-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MP2104DJ-LF-Z | IC REG BUCK ADJ 600MA TSOT23-5 | |
| MP3209DJ-LF-Z | IC REG BOOST ADJ 350MA TSOT23-5 | |
| MP3410DJ-LF-Z | IC REG BOOST ADJ 1.3A TSOT23-5 | |
| MP3216GJE-Z | IC REG BOOST ADJUSTABLE 750MA | |
| MP1541DJ-LF-Z | IC REG BOOST ADJ 300MA TSOT23-5 | |
| MP2104DJ-LF-P | IC REG BUCK ADJ 600MA TSOT23-5 | |
| MP3209DJ-LF-P | IC REG BOOST ADJ 350MA TSOT23-5 | |
| MP1540DJ-LF-P | IC REG BOOST ADJ 200MA TSOT23-5 | |
| MP1541DJ-LF-P | IC REG BOOST ADJ 300MA TSOT23-5 | |
| MP2105DJ-LF-Z | IC REG BUCK ADJ 800MA TSOT23-5 | |
| MP2105DJ-LF-P | IC REG BUCK ADJ 800MA TSOT23-5 | |
| MP1540DJ-LF-Z | IC REG BOOST ADJ 200MA TSOT23-5 | |
| MP2104DJ-1.8-LF-Z | IC REG BUCK 1.8V 600MA TSOT23-5 | |
| MP2104DJ-1.5-LF-Z | IC REG BUCK 1.5V 600MA TSOT23-5 | |
| MP3216GJE-P | IC REG BOOST ADJUSTABLE 750MA | |
| MPQ3410DJ-LF-Z | IC REG BOOST ADJUSTABLE 1.3A | |
| MPQ3410DJ-AEC1-LF-Z | IC REG BOOST ADJUSTABLE 1.3A | |
| MP2104DJ-1.5-LF-P | IC REG BUCK 1.5V 600MA TSOT23-5 | |
| MP2104DJ-1.8-LF-P | IC REG BUCK 1.8V 600MA TSOT23-5 | |
| MP3410DJ-LF-P | IC REG BOOST ADJ 1.3A TSOT23-5 | |
| MPQ3410DJ-LF-P | IC REG BOOST ADJUSTABLE 1.3A | |
| MPQ3410DJ-AEC1-LF-P | IC REG BOOST ADJUSTABLE 1.3A |
Product Description
Product Details
DESCRIPTION
The MP2104 is a 1.7MHz constant frequency, current mode, PWM step-down converter. The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipment that runs from a single cell Lithium-Ion (Li+) battery. The MP2104 can supply 600mA of load current from a 2.5V to 6V input voltage. The output voltage for the MP2104DJ can be regulated as low as 0.6V, while the output voltages of the MP2104DJ-1.5 and MP2104DJ-1.8 are fixed at 1.5V and 1.8V, respectively. The MP2104 can also run at 100% duty cycle for low dropout applications.
FEATURES
• High Efficiency: Up to 95%• 1.7MHz Constant Switching Frequency
• 600mA Available Load Current
• 2.5V to 6V Input Voltage Range
• Output Voltage as Low as 0.6V
• 100% Duty Cycle in Dropout
• Current Mode Control
• Short Circuit Protection
• Thermal Fault Protection
• <0.1µA Shutdown Current
• 1.5V and 1.8V Fixed Output Versions
• Space Saving 5-Pin TSOT23 Package
APPLICATIONS
• Cellular and Smart Phones• Microprocessors and DSP Core Supplies
• PDAs
• MP3 Players
• Digital Still and Video Cameras
• Portable Instruments
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Monolithic Power Systems |
| Product Category | DC Switching Regulators |
| Series | MP2104 |
| Type | Voltage Converters |
| Packaging | Tape & Reel (TR) |
| Unit-Weight | 0.000222 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | SOT-23-5 Thin, TSOT-23-5 |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Function | Step-Down |
| Supplier-Device-Package | TSOT-23-5 |
| Number-of-Outputs | 1 Output |
| Topology | Buck |
| Frequency-Switching | 1.7MHz |
| Current-Output | 600mA |
| Output-Configuration | Positive |
| Output Voltage | 0.6V |
| Voltage-Output-Max | 6V |
| Synchronous-Rectifier | Yes |
| Voltage-Input-Min | 2.5V |
| Voltage-Input-Max | 6V |
| Package-Case | TSOT-23-5 |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| MP2104DJ-LF Power Circuits |
Switching Regulator, Current-mode, 1.4A, 2080kHz Switching Freq-Max, PDSO5, 1 MM HEIGHT, LEAD FREE, MO-193AA, TSOT-23, 5 PIN | Monolithic Power Systems | MP2104DJ-LF-Z vs MP2104DJ-LF |
| MP2104DJ Power Circuits |
Switching Regulator, Current-mode, 1.4A, 2080kHz Switching Freq-Max, PDSO5, 1 MM HEIGHT, MO-193AA, TSOT-23, 5 PIN | Monolithic Power Systems | MP2104DJ-LF-Z vs MP2104DJ |
| MP2104DJ-Z Power Circuits |
Switching Regulator, Current-mode, 1.4A, 2080kHz Switching Freq-Max, PDSO5, 1 MM HEIGHT, MO-193AA, TSOT-23, 5 PIN | Monolithic Power Systems | MP2104DJ-LF-Z vs MP2104DJ-Z |
Descriptions
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 600mA SOT-23-5 Thin, TSOT-23-5
Voltage Regulators - Switching Regulators 0.6A/6V Synch Step Down Converter
