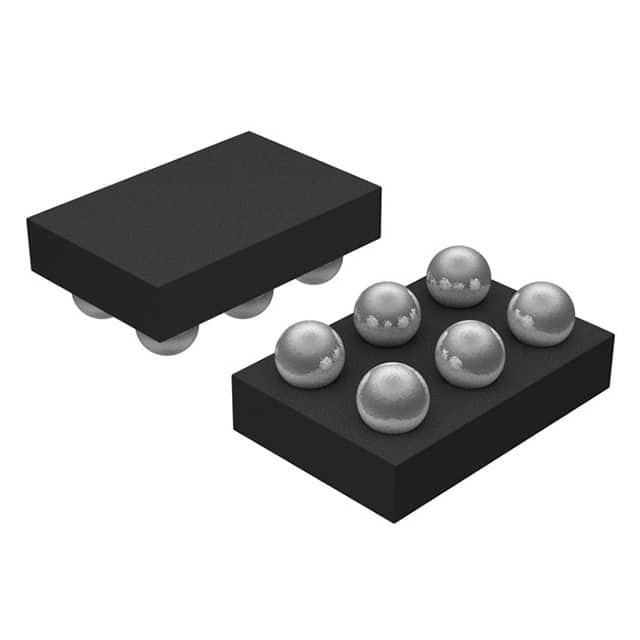

FAN53600AUC33X IC REG BUCK 3.3V 600MA 6WLCSP onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | FAN53600AUC33X |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Fixed |
| Number Of Outputs | 1 | Voltage - Input (Min) | 2.3V |
| Voltage - Input (Max) | 5.5V | Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - | Current - Output | 600mA |
| Frequency - Switching | 3MHz | Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 6-UFBGA, WLCSP | Supplier Device Package | 6-WLCSP (1.23x0.88) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| FAN53600AUC33X | IC REG BUCK 3.3V 600MA 6WLCSP | |
| FAN53601AUC10X | IC REG BUCK 1V 600MA 6WLCSP | |
| FAN53611AUC18X | IC REG BUCK 1.8V 1A 6WLCSP | |
| FAN53601AUC105X | IC REG BUCK 1.05V 600MA 6WLCSP | |
| FAN53601UC182X | IC REG BUCK 1.82V 600MA 6WLCSP | |
| FAN53611AUC12X | IC REG BUCK 1.2V 1A 6WLCSP | |
| FAN53600AUC28X | IC REG BUCK 2.8V 600MA 6WLCSP | |
| FAN53610AUC33X | IC REG BUCK 3.3V 1A 6WLCSP | |
| FAN53611AUC123X | IC REG BUCK 1.233V 1A 6WLCSP | |
| FAN5362UC33X | IC REG BUCK 3.3V 500MA 6WLCSP | |
| FAN53611UC123X | IC REG BUCK 1.233V 1A 6WLCSP | |
| FAN53610AUC29X | IC REG BUCK 2.9V 1A 6WLCSP | |
| FAN53611AUC11X | IC REG BUCK 1.1V 1A 6WLCSP | |
| FAN53610AUC30X | IC REG BUCK 3V 1A 6WLCSP | |
| FAN53611AUC13X | IC REG BUCK 1.3V 1A 6WLCSP | |
| FAN5361UC19X | IC REG BUCK 1.9V 600MA 6WLCSP | |
| FAN5362UC27X | IC REG BUCK 2.7V 500MA 6WLCSP | |
| FAN5362UC29X | IC REG BUCK 2.9V 500MA 6WLCSP | |
| FAN53611AUC135X | IC REG BUCK 1.35V 1A 6WLCSP | |
| FAN53611AUC115X | IC REG BUCK 1.15V 1A 6WLCSP | |
| FAN53611AUC205X | IC REG BUCK 2.05V 1A 6WLCSP | |
| FAN53611AUC123X-SN00387 | IC REG BUCK 1A 6WLCSP | |
| FAN53601AUC18X | IC REG BUCK DC/DC 1A 6WLCSP | |
| FAN53601AUC30X | IC REG BUCK DC/DC 1A 6WLCSP |
Product Description
Product Details
The FAN53660, FAN53610 is a 3 Mhz step-down switching voltage regulator, available in 600 mA or 1 A options, that delivers a fixed output from an input voltage supply of 2.5V to 5.5V.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | DC Switching Regulators |
| Series | - |
| Type | Buck Regulator |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.001587 oz |
| Mounting-Style | SMD/SMT |
| Operating-Temperature-Range | -40 C to + 85 C |
| Package-Case | 6-UFBGA, WLCSP |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Function | Step-Down |
| Supplier-Device-Package | 6-WLCSP (1.16x0.86) |
| Number-of-Outputs | 1 Output |
| Topology | Buck |
| Frequency-Switching | 3MHz |
| Current-Output | 600mA |
| Output-Configuration | Positive |
| Output Voltage | 3.3V |
| Voltage-Output-Max | - |
| Synchronous-Rectifier | Yes |
| Voltage-Input-Min | 2.3V |
| Voltage-Input-Max | 5.5V |
| Shutdown | Shutdown |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.3 V |
| Operating-Supply-Current | 3 mA |
| Input-Voltage-MAX | 7 V |
| Output-Current | 600 mA |
| Switching-Frequency | 3.3 MHz |
| Input-Voltage-MIN | 2.3 V |
| Supply-Voltage-Min | 2.3 V |
| Package-Case | WLCSP-6 |
Descriptions
Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 600mA 6-UFBGA, WLCSP
Conv DC-DC 2.3V to 5.5V Step Down Single-Out 3.3V 0.6A 6-Pin WLCSP T/R
Voltage Regulators - Switching Regulators 3MHz/6MHz 600mA Buck Regulator
