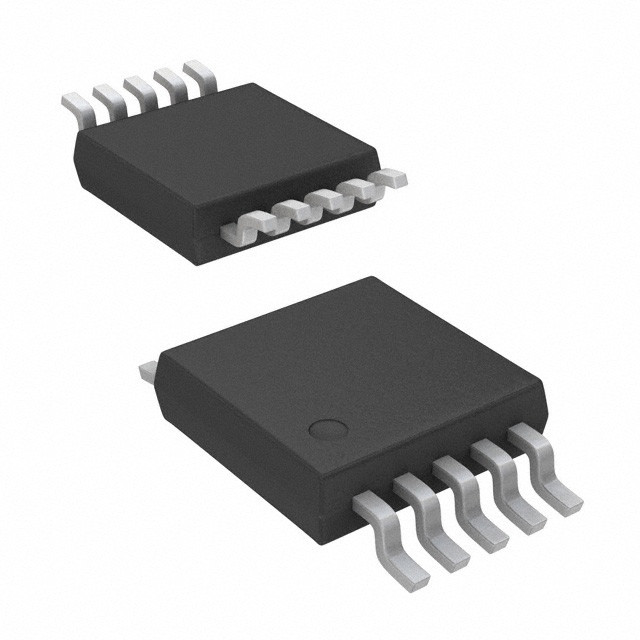

MCP1257T-E/UN IC REG CHARGE PUMP 3.3V 10MSOP Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | MCP1257T-E/UN |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Up | Output Configuration | Positive |
|---|---|---|---|
| Topology | Charge Pump | Output Type | Fixed |
| Number Of Outputs | 1 | Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 3.6V | Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - | Current - Output | 100mA |
| Frequency - Switching | 650kHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Supplier Device Package | 10-MSOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MCP16417T-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP1257T-E/UN | IC REG CHARGE PUMP 3.3V 10MSOP | |
| MCP16418T-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP1256T-E/UN | IC REG CHARGE PUMP 3.3V 10MSOP | |
| MCP1258T-E/UN | IC REG CHARGE PUMP 3.3V 10MSOP | |
| MCP16416-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP16414-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP16411-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP16418-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP16416T-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP1258-E/UN | IC REG CHARGE PUMP 3.3V 10MSOP | |
| MCP16415T-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP16411T-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP16414T-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP16415-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP1257-E/UN | IC REG CHARGE PUMP 3.3V 10MSOP | |
| MCP1259-E/UN | IC REG CHARGE PUMP 3.3V 10MSOP | |
| MCP16417-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP16413-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP1259T-E/UN | IC REG CHARGE PUMP 3.3V 10MSOP | |
| MCP1256-E/UN | IC REG CHARGE PUMP 3.3V 10MSOP | |
| MCP16412-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP16413T-I/UN | IC LOW PWR BOOST CONVERTER | |
| MCP16412T-I/UN | IC LOW PWR BOOST CONVERTER |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | DC Switching Regulators |
| Series | - |
| Type | Step-Down Converter |
| Packaging | Tape & Reel (TR) Alternate Packaging |
| Unit-Weight | 0.005051 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Operating-Temperature | -40°C ~ 125°C (TJ) |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Function | Step-Up |
| Supplier-Device-Package | 10-MSOP |
| Number-of-Outputs | 1 Output |
| Topology | Charge Pump |
| Frequency-Switching | 650kHz |
| Current-Output | 100mA |
| Output-Configuration | Positive |
| Output Voltage | 3.3V |
| Voltage-Output-Max | - |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 1.8V |
| Voltage-Input-Max | 3.6V |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.3 V |
| Input-Voltage | 3.6 V |
| Input-Voltage-MAX | 3.6 V |
| Output-Current | 100 mA (Min) |
| Switching-Frequency | 650 kHz |
| Input-Voltage-MIN | 1.8 V |
| Package-Case | MSOP-10 |
Descriptions
Charge Pump Switching Regulator IC Positive Fixed 3.3V 1 Output 100mA 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Conv DC-DC 1.8V to 3.6V Step Up Single-Out 3.3V 0.1A Automotive 10-Pin MSOP T/R
Voltage Regulators - Switching Regulators Frac Charge Pump w/ LBO and Sleep
