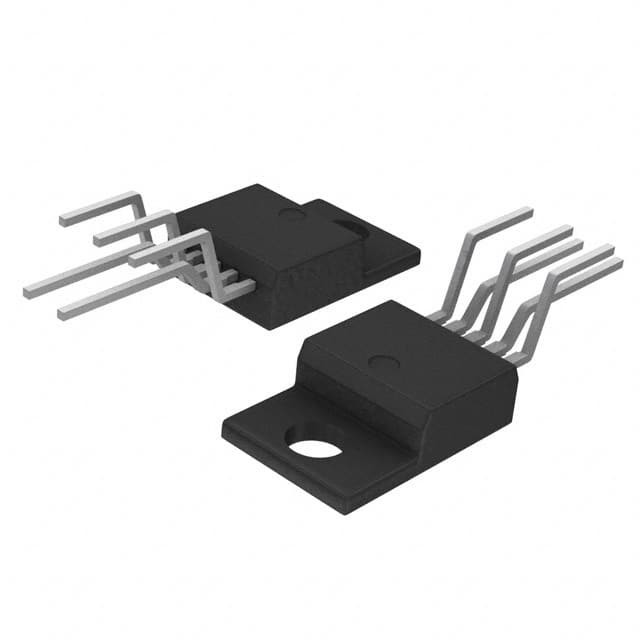

MC33167TVG IC REG BUCK BST ADJ 5.5A TO220-5 onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | MC33167TVG |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Up, Step-Down | Output Configuration | Positive Or Negative |
|---|---|---|---|
| Topology | Buck, Boost | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 7.5V |
| Voltage - Input (Max) | 40V | Voltage - Output (Min/Fixed) | 5.05V |
| Voltage - Output (Max) | 40V (Switch) | Current - Output | 5.5A (Switch) |
| Frequency - Switching | 72kHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Through Hole |
| Package / Case | TO-220-5 Formed Leads | Supplier Device Package | TO-220-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MC33167TVG | IC REG BUCK BST ADJ 5.5A TO220-5 | |
| LM2576TV-5G | IC REG MULTI CONFG 5V 3A TO220-5 | |
| LM2575TV-ADJG | IC REG BUCK ADJ 1A D2PAK-5 | |
| LM2576TV-012G | IC REG MULT CONFG 12V 3A TO220-5 | |
| LM2575TV-012G | IC REG BUCK 12V 1A TO220-5 | |
| LM2575TV-3.3G | IC REG BUCK 3.3V TO220-5 | |
| LM2576TV-015G | IC REG MULT CONFG 15V 3A TO220-5 | |
| LM2576TV-3.3G | IC REG MULTI CONFG 3.3V TO220-5 | |
| LM2596TVADJG | IC REG MULT CONFG ADJ 3A TO220-5 | |
| LM2576TV-ADJG | IC REG MULT CONFG ADJ 3A TO220-5 | |
| MC33166TVG | IC REG BUCK BST ADJ 3.3A TO220-5 | |
| MC34166TVG | IC REG BUCK BST ADJ 3.3A TO220-5 | |
| MC34166TV | IC REG BUCK BST ADJ 3.3A TO220-5 | |
| MC34167TV | IC REG BUCK BST ADJ 5.5A TO220-5 | |
| MC33166TV | IC REG BUCK BST ADJ 3.3A TO220-5 | |
| MC34167TVG | IC REG BUCK BST ADJ 5.5A TO220-5 | |
| LM2575TV-005G | IC REG BUCK 5V 1A TO220-5 | |
| LM2575TV-012 | IC REG BUCK 12V 1A TO220-5 | |
| LM2575TV-015 | IC REG BUCK 15V 1A TO220-5 | |
| LM2575TV-15G | IC REG BUCK 15V 1A TO220-5 | |
| LM2575TV-3.3 | IC REG BUCK 3.3V TO220-5 | |
| LM2575TV-5G | IC REG BUCK 5V 1A TO220-5 | |
| LM2575TV-ADJ | IC REG BUCK ADJ 1A D2PAK-5 | |
| LM2576TV-012 | IC REG MULT CONFG 12V 3A TO220-5 | |
| LM2576TV-015 | IC REG MULT CONFG 15V 3A TO220-5 | |
| LM2576TV-3.3 | IC REG MULTI CONFG 3.3V TO220-5 | |
| LM2576TV-ADJ | IC REG MULT CONFG ADJ 3A TO220-5 | |
| MC33167TV | IC REG BUCK BST ADJ 5.5A TO220-5 | |
| LM2595TVADJG | IC REG MULT CONFG ADJ 1A TO220-5 |
Product Description
Product Details
The MC34167, MC33167 series are high performance fixed frequency power switching regulators that contain the primary functions required for dc−to−dc converters. This series was specifically designed to be incorporated in step−down and voltage−inverting configurations with a minimum number of external components and can also be used cost effectively in step−up applications.
These devices consist of an internal temperature compensated reference, fixed frequency oscillator with on−chip timing components, latching pulse width modulator for single pulse metering, high gain error amplifier, and a high current output switch. Protective features consist of cycle−by−cycle current limiting, undervoltage lockout, and thermal shutdown. Also included is a low power standby mode that reduces power supply current to 36 A.
Features
• Output Switch Current in Excess of 5.0 A• Fixed Frequency Oscillator (72 kHz) with On−Chip Timing
• Provides 5.05 V Output without External Resistor Divider
• Precision 2% Reference
• 0% to 95% Output Duty Cycle
• Cycle−by−Cycle Current Limiting
• Undervoltage Lockout with Hysteresis
• Internal Thermal Shutdown
• Operation from 7.5 V to 40 V
• Standby Mode Reduces Power Supply Current to 36 A
• Economical 5−Lead TO−220 Package with Two Optional Leadforms
• Also Available in Surface Mount D2PAK Package
• Moisture Sensitivity Level (MSL) Equals 1
• Pb−Free Packages are Available
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | DC Switching Regulators |
| Series | MC33167 |
| Type | Buck |
| Packaging | Tube |
| Unit-Weight | 0.105822 oz |
| Mounting-Style | Through Hole |
| Package-Case | TO-220-5 Formed Leads |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Through Hole |
| Output-Type | Adjustable |
| Function | Step-Up, Step-Down |
| Supplier-Device-Package | TO-220-5 |
| Number-of-Outputs | 1 Output |
| Topology | Buck, Boost |
| Frequency-Switching | 72kHz |
| Current-Output | 5.5A (Switch) |
| Output-Configuration | Positive or Negative |
| Output Voltage | 5.05V |
| Voltage-Output-Max | 40V (Switch) |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 7.5V |
| Voltage-Input-Max | 40V |
| Output-Voltage | 5.5 V |
| Input-Voltage-MAX | 40 V |
| Output-Current | 5 A |
| Switching-Frequency | 72 kHz |
| Package-Case | TO-220-5 |
Descriptions
Buck, Boost Switching Regulator IC Positive or Negative Adjustable 5.05V 1 Output 5.5A (Switch) TO-220-5 Formed Leads
Conv DC-DC 7.5V to 40V Non-Inv/Inv/Step Up/Step Down Single-Out 5.05V 5A Automotive 5-Pin(5+Tab) TO-220 Tube
Voltage Regulators - Switching Regulators 40V 5A Buck/Boost/Inverting
