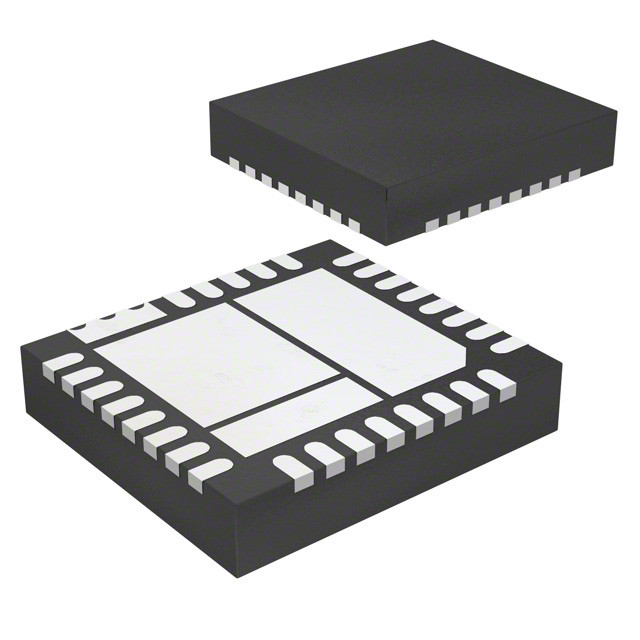

FAN23SV56AMPX IC REG BUCK ADJUSTABLE 6A 34PQFN onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | FAN23SV56AMPX |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 7V |
| Voltage - Input (Max) | 24V | Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V | Current - Output | 6A |
| Frequency - Switching | 200kHz ~ 1.5MHz | Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 34-PowerTFQFN | Supplier Device Package | 34-PQFN (5.5x5) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| FAN23SV56AMPX | IC REG BUCK ADJUSTABLE 6A 34PQFN | |
| FAN2306MMPX | IC REG BUCK ADJUSTABLE 6A 34PQFN | |
| FAN23SV15MMPX | IC REG BUCK ADJ 15A 34PQFN | |
| FAN23SV70AMPX | IC REG BUCK ADJ 20A 34PQFN | |
| FAN2356MPX | IC REG BUCK ADJUSTABLE 6A 34PQFN | |
| FAN2365MPX | IC REG BUCK ADJ 15A 34PQFN | |
| FAN23SV06MPX | IC REG BUCK ADJUSTABLE 6A 34PQFN | |
| FAN23SV06PMPX | IC REG BUCK ADJUSTABLE 6A 34PQFN | |
| FAN23SV10MMPX | IC REG BUCK ADJ 10A 34PQFN | |
| FAN23SV60MPX | IC REG BUCK ADJ 10A 34PQFN | |
| FAN23SV56MPX | IC REG BUCK ADJUSTABLE 6A 34PQFN | |
| FAN2360MPX | IC REG BUCK ADJ 10A 34PQFN | |
| FAN2306MPX | IC REG BUCK ADJUSTABLE 6A 34PQFN | |
| FAN2315MPX | IC REG BUCK ADJ 15A 34PQFN | |
| FAN2356AMPX | IC REG BUCK ADJUSTABLE 6A 34PQFN | |
| FAN2306AMPX | IC REG BUCK ADJUSTABLE 6A 34PQFN | |
| FAN2306MAMPX | IC REG BUCK ADJUSTABLE 6A 34PQFN | |
| FAN23SV06PAMPX | IC REG BUCK ADJUSTABLE 6A 34PQFN | |
| FAN23SV10MAMPX | IC REG BUCK ADJ 10A 34PQFN | |
| FAN23SV15MAMPX | IC REG BUCK ADJ 15A 34PQFN | |
| FAN23SV60AMPX | IC REG BUCK ADJ 10A 34PQFN | |
| FAN23SV65AMPX | IC REG BUCK ADJ 15A 34PQFN | |
| FAN2365AMPX | IC REG BUCK ADJ 15A 34PQFN | |
| FAN2310AMPX | IC REG BUCK ADJ 10A 34PQFN | |
| FAN2315AMPX | IC REG BUCK ADJ 15A 34PQFN | |
| FAN2360AMPX | IC REG BUCK ADJ 10A 34PQFN | |
| FAN23SV06AMPX | IC REG BUCK ADJUSTABLE 6A 34PQFN | |
| FAN23SV20MAMPX | IC REG BUCK ADJ 20A 34PQFN | |
| FAN23SV65MPX | IC REG BUCK ADJ 15A 34PQFN | |
| FAN2310MPX | IC REG BUCK ADJ 10A 34PQFN |
Product Description
Product Details
Description
The FAN2510/11 family of micropower low-dropout voltage regulators utilize CMOS technology to offer a new level of cost-effective performance in GSM, TDMA, and CDMA cellular handsets, Laptop and Notebook portable computers, and other portable devices.Features
• Ultra Low Power Consumption
• Enable optimized for CDMA time slices
• 100 mV dropout voltage at 100 mA
• 25 µA ground current at 100 mA
• Enable/Shutdown Control
• SOT23-5 package
• Thermal limiting
• 300 mA peak current
Applications
• Cellular Phones and accessories
• PDAs
• Portable cameras and video recorders
• Laptop, notebook and palmtop computers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | DC Switching Regulators |
| Series | - |
| Type | Synchronous Buck Regulator |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.040212 oz |
| Mounting-Style | SMD/SMT |
| Operating-Temperature-Range | - 40 C to + 125 C |
| Package-Case | 34-PowerTFQFN |
| Operating-Temperature | -40°C ~ 125°C (TJ) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Function | Step-Down |
| Supplier-Device-Package | 34-PQFN (5.5x5) |
| Number-of-Outputs | 1 Output |
| Topology | Buck |
| Frequency-Switching | 200kHz ~ 1.5MHz |
| Current-Output | 6A |
| Output-Configuration | Positive |
| Output Voltage | 0.6V |
| Voltage-Output-Max | 5.5V |
| Synchronous-Rectifier | Yes |
| Voltage-Input-Min | 7V |
| Voltage-Input-Max | 24V |
| Shutdown | Shutdown |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 600 mV to 5.5 V |
| Input-Voltage | 7 V to 24 V |
| Input-Voltage-MAX | 24 V |
| Output-Current | 6 A |
| Switching-Frequency | 200 kHz to 1.5 MHz |
| Input-Voltage-MIN | 7 V |
| Supply-Voltage-Min | 7 V |
| Package-Case | PQFN-34 |
Descriptions
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 34-PowerTFQFN
Conv DC-DC 7V to 24V Step Down Single-Out 0.6V to 5.5V 6A 34-Pin PQFN EP T/R
Voltage Regulators - Switching Regulators 6A SYNC BUCK REGULATOR
